HellermannTyton Black Nylon pliers, 50.8mm Max. Bundle
- RS Stock No.:
- 102-864
- Mfr. Part No.:
- 151-03558 CMRCDHM6-PA66HIRHSUV-BK
- Brand:
- HellermannTyton
Subtotal (1 bag of 150 units)*
£558.69
(exc. VAT)
£670.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £558.69 | £3.725 |
*price indicative
- RS Stock No.:
- 102-864
- Mfr. Part No.:
- 151-03558 CMRCDHM6-PA66HIRHSUV-BK
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HellermannTyton | |
Cable Clip/Clamp Style | pliers | |
Maximum Bundle Diameter | 50.8mm | |
Affixing Method | Screw | |
Material | Nylon 66 | |
Colour | Black | |
Length | 149.7mm | |
Width | 35.1 mm | |
Depth | 30.4mm | |
Fire Behaviour | Halogen Free | |
Operating Temperature Range | -40 → +105 °C | |
Series | CMRCDHM6 | |
Maximum Operating Temperature | +105°C | |
Self Adhesive | No | |
Dimensions [L x W x D] | 149.7 x 35.1 x 30.4mm | |
Select all | ||
---|---|---|
Brand HellermannTyton | ||
Cable Clip/Clamp Style pliers | ||
Maximum Bundle Diameter 50.8mm | ||
Affixing Method Screw | ||
Material Nylon 66 | ||
Colour Black | ||
Length 149.7mm | ||
Width 35.1 mm | ||
Depth 30.4mm | ||
Fire Behaviour Halogen Free | ||
Operating Temperature Range -40 → +105 °C | ||
Series CMRCDHM6 | ||
Maximum Operating Temperature +105°C | ||
Self Adhesive No | ||
Dimensions [L x W x D] 149.7 x 35.1 x 30.4mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

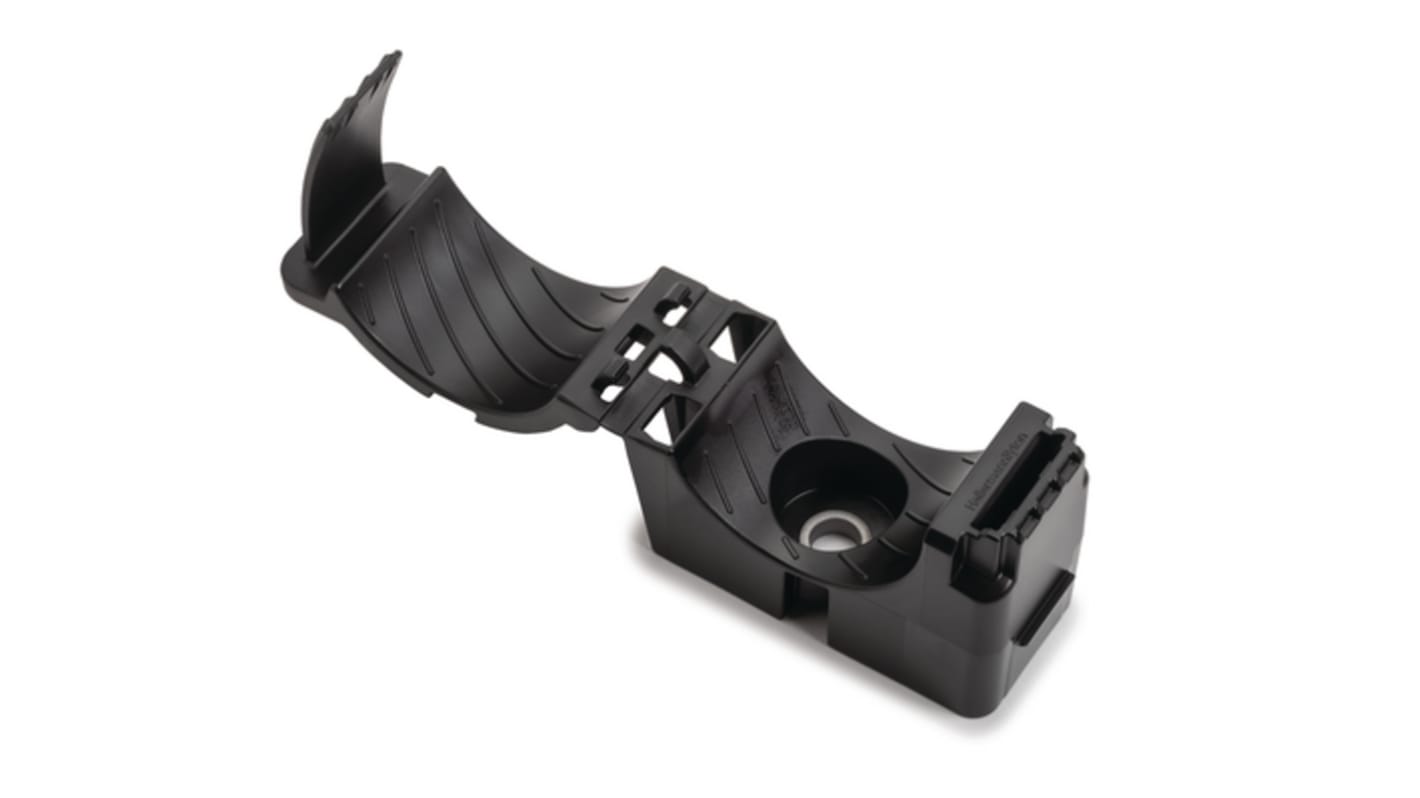

HellermannTyton CMRCDHM6 Series Cable Clip, 149.7mm Length, 50.8mm Maximum Bundle Diameter - 151-03558 CMRCDHM6-PA66HIRHSUV-BK
This cable clip is a robust solution for managing cables in demanding environments. Constructed from durable polyamide 6.6 material, this clip features a sleek black design, measuring 149.7 x 35.1 x 30.4mm. With a maximum bundle diameter of up to 50.8mm, it effectively secures multiple cables while enduring extreme temperatures ranging from -40°C to +105°C.
Features & Benefits
• Made from halogen-free material, ensuring safer cable management
• Designed for screw mounting, providing secure installation
• Capable of handling a maximum bundle diameter of 50.8mm
• Ideal for high-temperature applications up to 105°C
• Durable polyamide structure guarantees long-lasting performance
• No self-adhesive components, ensuring a sturdier attachment
• Designed for screw mounting, providing secure installation
• Capable of handling a maximum bundle diameter of 50.8mm
• Ideal for high-temperature applications up to 105°C
• Durable polyamide structure guarantees long-lasting performance
• No self-adhesive components, ensuring a sturdier attachment
Applications
• Used for securing cables in electrical installations
• Ideal for cable management in automotive
• Suitable for bundling wires in machinery and automation systems
• Employed in various mechanical projects requiring durable clips
• Ideal for cable management in automotive
• Suitable for bundling wires in machinery and automation systems
• Employed in various mechanical projects requiring durable clips
What material is suitable for outdoor applications?
The polyamide 6.6 material used in the clip is designed for resilience against weather elements, making it suitable for outdoor applications. This material can withstand both high temperatures and extreme conditions, ensuring your cables are safe and secure.
How do I ensure a secure fit when installing this clip?
To achieve a secure fit, it is important to properly align the clip with the mounting surface and use the appropriate screws. Additionally, ensure that the bundle of cables does not exceed the maximum diameter to maintain effective hold.
What is the maximum operating temperature for this clip?
The clip can operate effectively in temperatures up to 105°C, making it ideal for high-temperature environments commonly found in industrial settings.
