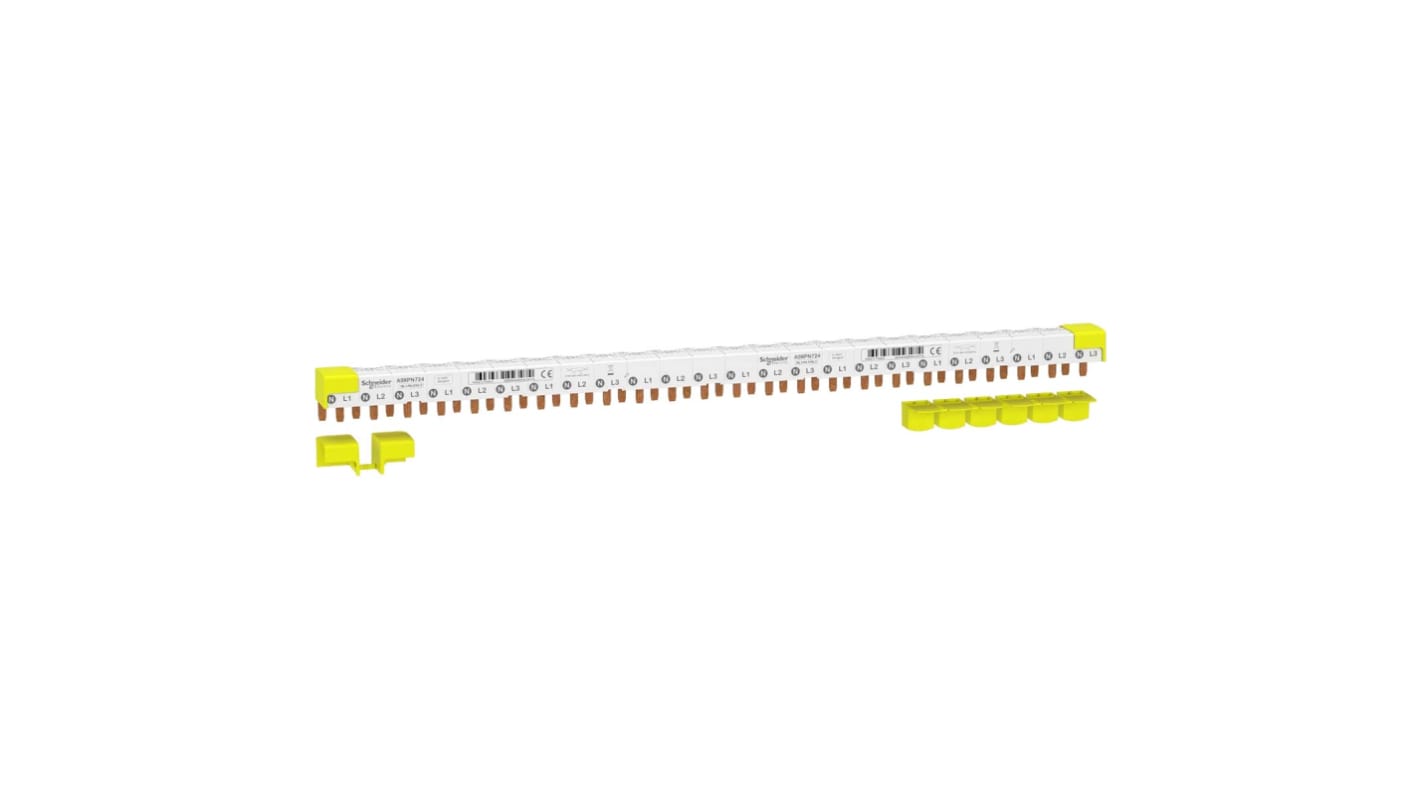

Schneider Electric Acti9 3 Phase Busbar, 24 Module, 230 → 400V, 18mm Pitch

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Acti9 Cuttable Connection Comb Busbars

Range of cutable comb busbars compatible with Schneider Acti9 series
Mounting mode: Horizontal

Specifications
Attribute Value
Rated Operational Voltage 230 → 400V
Range Acti9
Number Of Modules 24
Electrical Phase 3
Colour White
Current Rating 80 A
Pitch 18mm
For Use With Acti 9 DT40, Acti 9 DT40 Vigi, Acti9 iDD40, Acti9 iDD40 TG, Acti9 iDD40K, Acti9 iDT40, Acti9 iDT40K, Acti9 iIG40, Acti9 iIG40K, Multi 9 N40, Multi 9 N40 Vigi, Vigi iTG40, Vigi TG40, Vigi TG60
22 In stock for delivery within 1 working days
Price Each
£ 47.98
(exc. VAT)
£ 57.58
(inc. VAT)
Units
Per unit
1 +
£47.98
Not available for guaranteed pre 9am/10am delivery
