Schneider Electric Copper Acti9 Acti9 3 Phase Busbar, 400 V ac, 9 mm Pitch
- RS Stock No.:
- 654-802
- Mfr. Part No.:
- A9XPC724
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£59.66
(exc. VAT)
£71.59
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.66 |
*price indicative
- RS Stock No.:
- 654-802
- Mfr. Part No.:
- A9XPC724
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Busbar | |
| Rated Operational Voltage | 400 V ac | |
| Range | Acti9 | |
| Material | Copper | |
| Electrical Phase | 3 | |
| Standards/Approvals | REACH, RoHS | |
| Current Rating | 80A | |
| Pitch | 9mm | |
| Series | Acti9 | |
| Colour | White | |
| Number of Modules | 24 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Busbar | ||
Rated Operational Voltage 400 V ac | ||
Range Acti9 | ||
Material Copper | ||
Electrical Phase 3 | ||
Standards/Approvals REACH, RoHS | ||
Current Rating 80A | ||
Pitch 9mm | ||
Series Acti9 | ||
Colour White | ||
Number of Modules 24 | ||
- COO (Country of Origin):
- PL

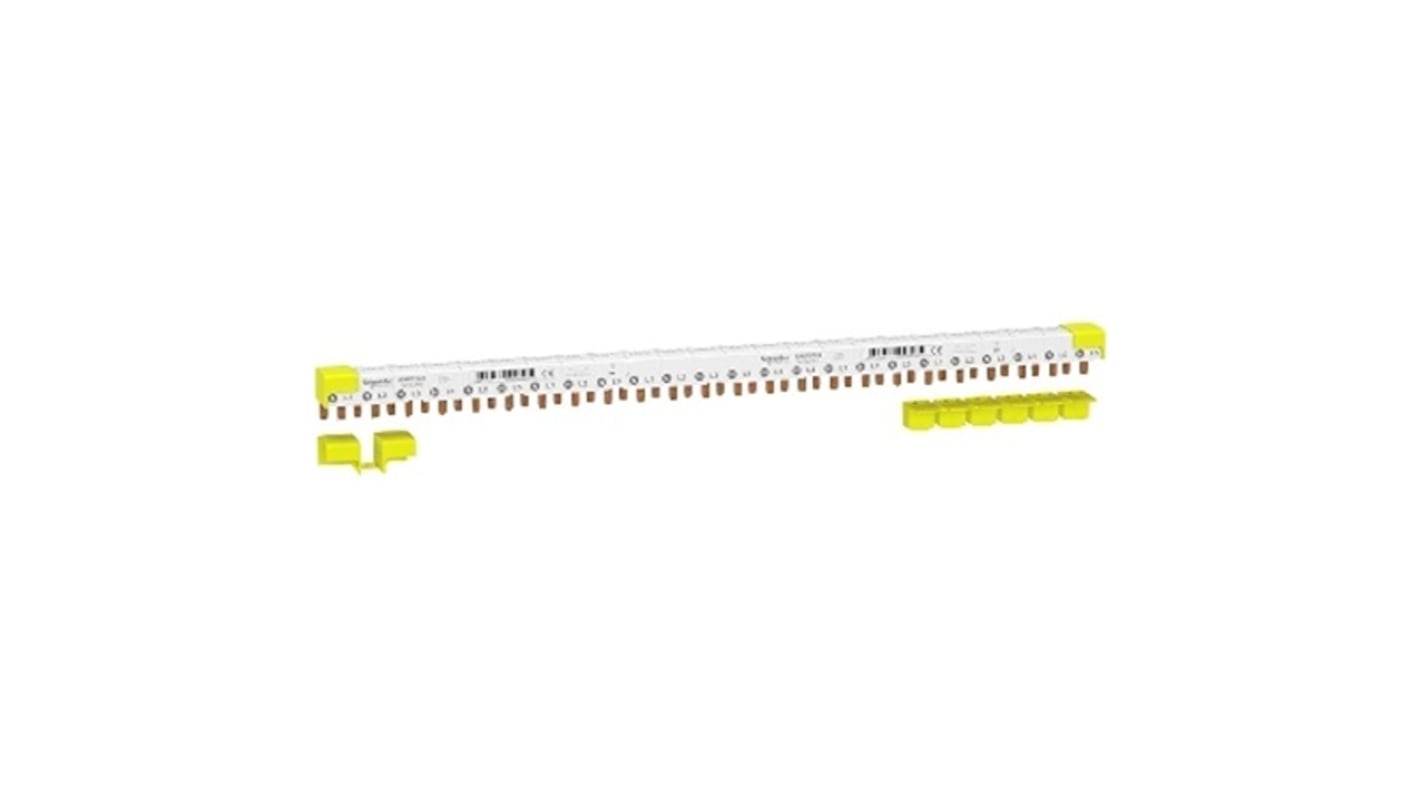

The Schneider Electric Acti9 product is a cut table horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1), (N, L2), (N, L3). It is a set of 1 product. It is suitable for 8 devices with 3P+N pole and without associated auxiliaries. The length is 434mm. The total number of modules of 18mm is 24. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC (phase/neutral) and 400V (phase/phase). The color of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard.
Allows the power supply of a group of circuit breakers
Compatible with the breaking capacity of Schneider Electric circuit breakers
