Schneider Electric Canalis 3 Phase Busbar, 1000V
- RS Stock No.:
- 280-134
- Mfr. Part No.:
- KTA2500ED4403
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£3,837.47
(exc. VAT)
£4,604.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3,837.47 |
*price indicative
- RS Stock No.:
- 280-134
- Mfr. Part No.:
- KTA2500ED4403
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Rated Operational Voltage | 1000V | |
Range | Canalis | |
Material | Aluminium | |
Electrical Phase | 3 | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Rated Operational Voltage 1000V | ||
Range Canalis | ||
Material Aluminium | ||
Electrical Phase 3 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU

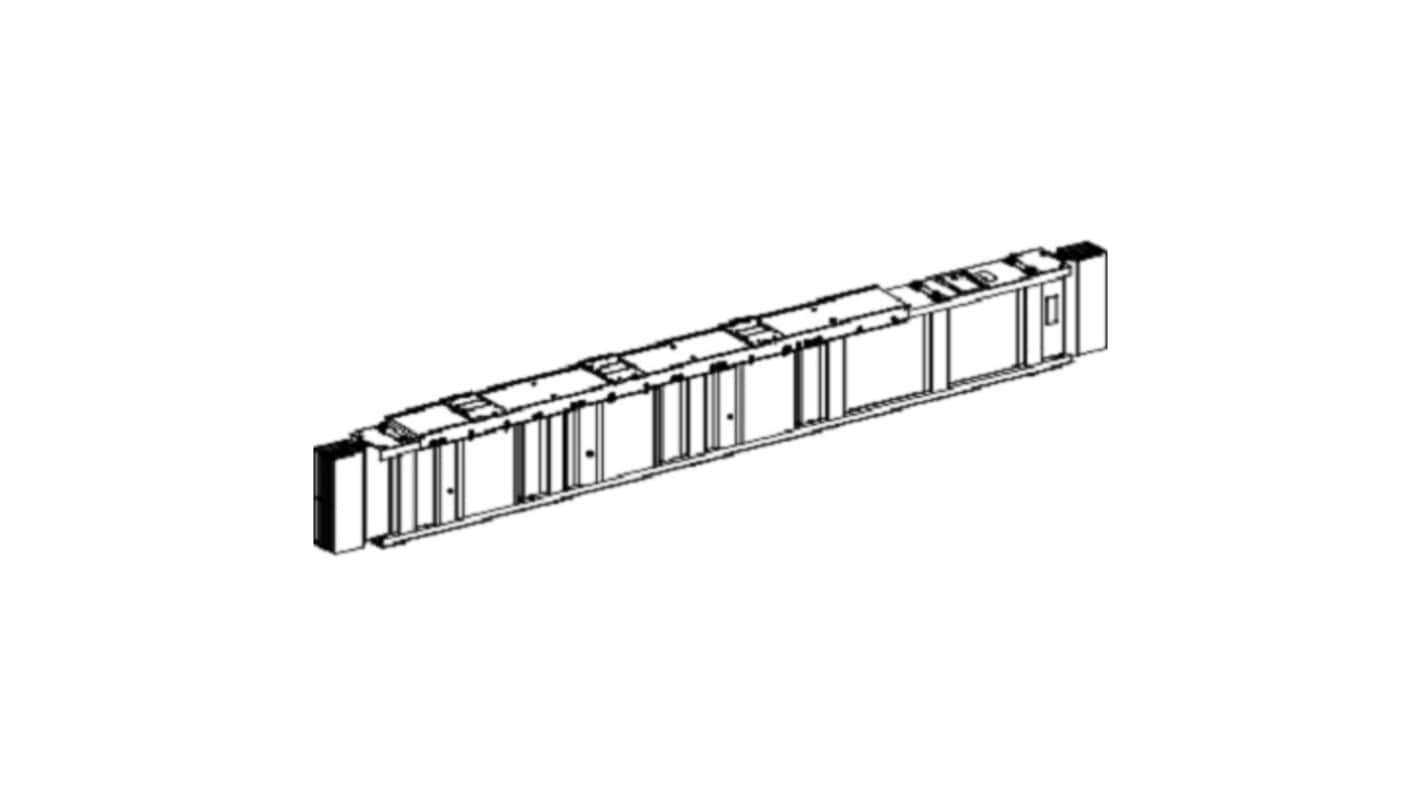

The Schneider Electric CANALIS KT 4X2500AL Plug-In bus bar trucking has a distribution length of 4 meters and is designed for high power distribution. The KTA device is compatible with plug-in tap-off units from Canals KS and Canals KT. Made of aluminum, it has a rated operational current of 2500 A at 35 °C with a 3L + N + PE polarity. It includes 3 tap-off outlets with a nominal output current ranging from 25 to 630 A. The earth conductor is of standard type, and the short-circuit level is based on the standard version. The provided equipment includes a trucking unit and a jointing unit.
Housing material Polyester film
Contacts material Copper
Electrical connection Sliding contact
Contacts material Copper
Electrical connection Sliding contact
