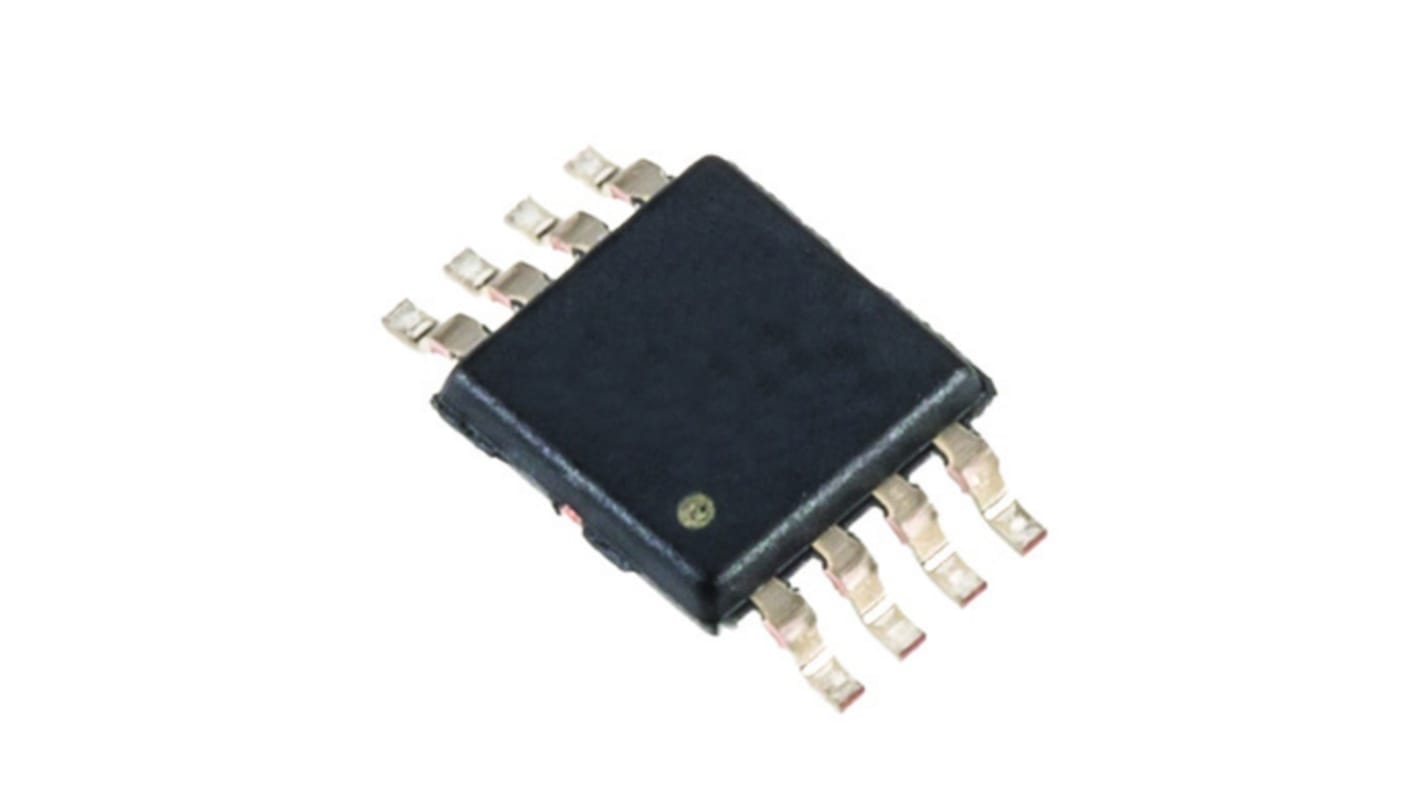

Texas Instruments SN74LVC2T45DCUT, 1 Bus Transceiver, 2-Bit Non-Inverting LVTTL, 8-Pin VSSOP
- RS Stock No.:
- 922-2870
- Mfr. Part No.:
- SN74LVC2T45DCUT
- Brand:
- Texas Instruments
Available to back order for despatch 02/04/2025
Added
Price Each (On a Reel of 250)
£0.761
(exc. VAT)
£0.913
(inc. VAT)
| Units | Per unit | Per Reel* |
| 250 - 250 | £0.761 | £190.25 |
| 500 - 1000 | £0.609 | £152.25 |
| 1250 - 2250 | £0.571 | £142.75 |
| 2500 + | £0.533 | £133.25 |
| *price indicative | ||
- RS Stock No.:
- 922-2870
- Mfr. Part No.:
- SN74LVC2T45DCUT
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
74LVC2T Family, Texas Instruments
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
Specifications
Attribute | Value |
|---|---|
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Number of Elements per Chip | 1 |
| Number of Channels per Chip | 2 |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | VSSOP |
| Pin Count | 8 |
| Input Level | LVTTL |
| Output Level | LVTTL |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 32mA |
| Maximum Propagation Delay Time @ Maximum CL | 17.7 ns @ 1.8 V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.3 x 2 x 0.85mm |
| Propagation Delay Test Condition | 15pF |
| Maximum Operating Temperature | +85 °C |
| Length | 2.3mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 1.65 V |
| Height | 0.85mm |
| Width | 2mm |
