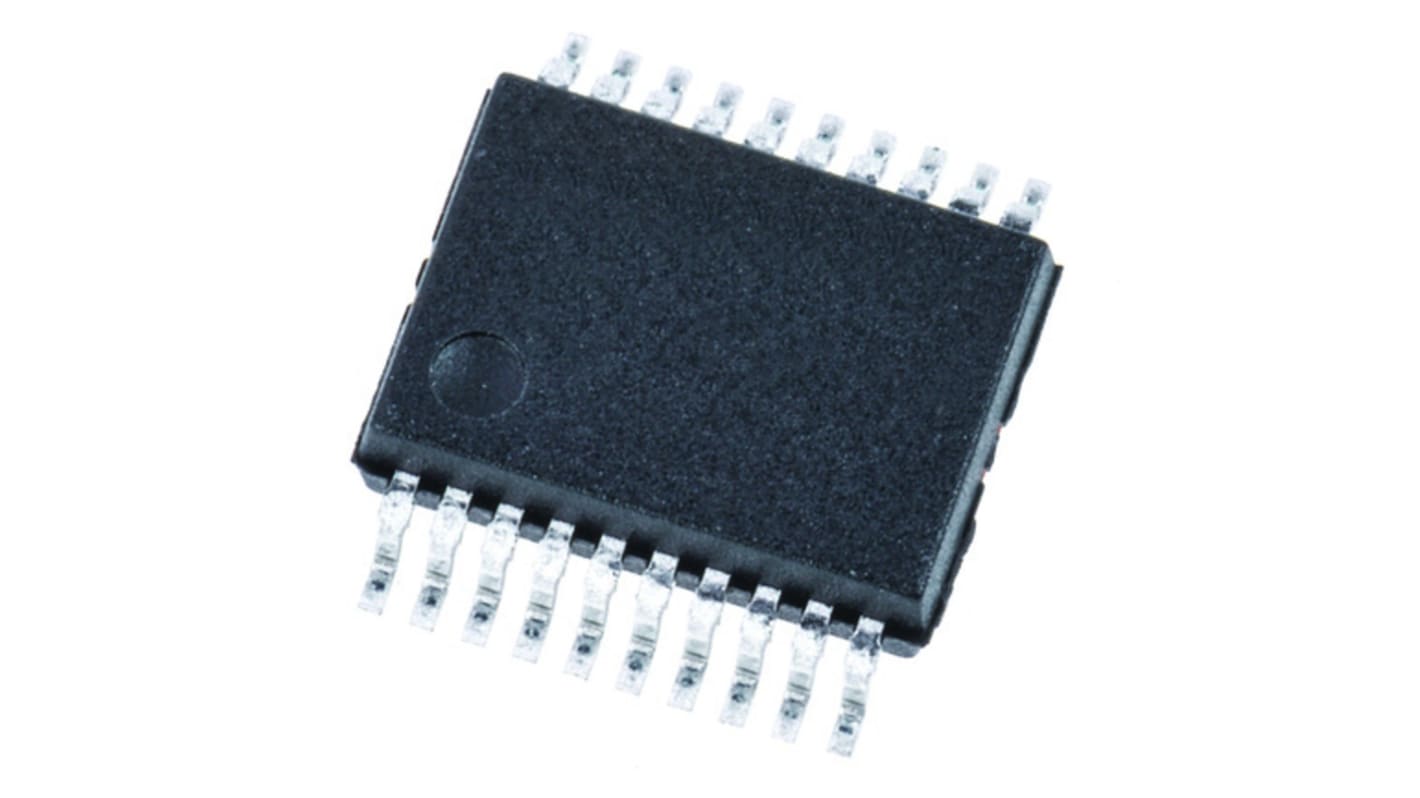

Texas Instruments SN74HC245DBR, 1 Bus Transceiver, 8-Bit Non-Inverting CMOS, 20-Pin SSOP
- RS Stock No.:
- 662-8168P
- Mfr. Part No.:
- SN74HC245DBR
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 662-8168P
- Mfr. Part No.:
- SN74HC245DBR
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | HC | |
| Logic Function | Bus Transceiver | |
| Number of Elements per Chip | 1 | |
| Number of Channels per Chip | 8 | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 20 | |
| Input Level | CMOS | |
| Output Level | CMOS | |
| Maximum High Level Output Current | -7.8mA | |
| Maximum Low Level Output Current | 7.8mA | |
| Maximum Propagation Delay Time @ Maximum CL | 135 ns @ 2 V | |
| Maximum Operating Temperature | +85 °C | |
| Width | 5.3mm | |
| Minimum Operating Supply Voltage | 2 V | |
| Propagation Delay Test Condition | 150pF | |
| Height | 1.95mm | |
| Minimum Operating Temperature | -40 °C | |
| Length | 7.2mm | |
| Maximum Operating Supply Voltage | 6 V | |
| Dimensions | 7.2 x 5.3 x 1.95mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family HC | ||
Logic Function Bus Transceiver | ||
Number of Elements per Chip 1 | ||
Number of Channels per Chip 8 | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 20 | ||
Input Level CMOS | ||
Output Level CMOS | ||
Maximum High Level Output Current -7.8mA | ||
Maximum Low Level Output Current 7.8mA | ||
Maximum Propagation Delay Time @ Maximum CL 135 ns @ 2 V | ||
Maximum Operating Temperature +85 °C | ||
Width 5.3mm | ||
Minimum Operating Supply Voltage 2 V | ||
Propagation Delay Test Condition 150pF | ||
Height 1.95mm | ||
Minimum Operating Temperature -40 °C | ||
Length 7.2mm | ||
Maximum Operating Supply Voltage 6 V | ||
Dimensions 7.2 x 5.3 x 1.95mm | ||
74HC Family Bus Transceivers, Texas Instruments
Texas Instruments range of Bus Transceivers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
