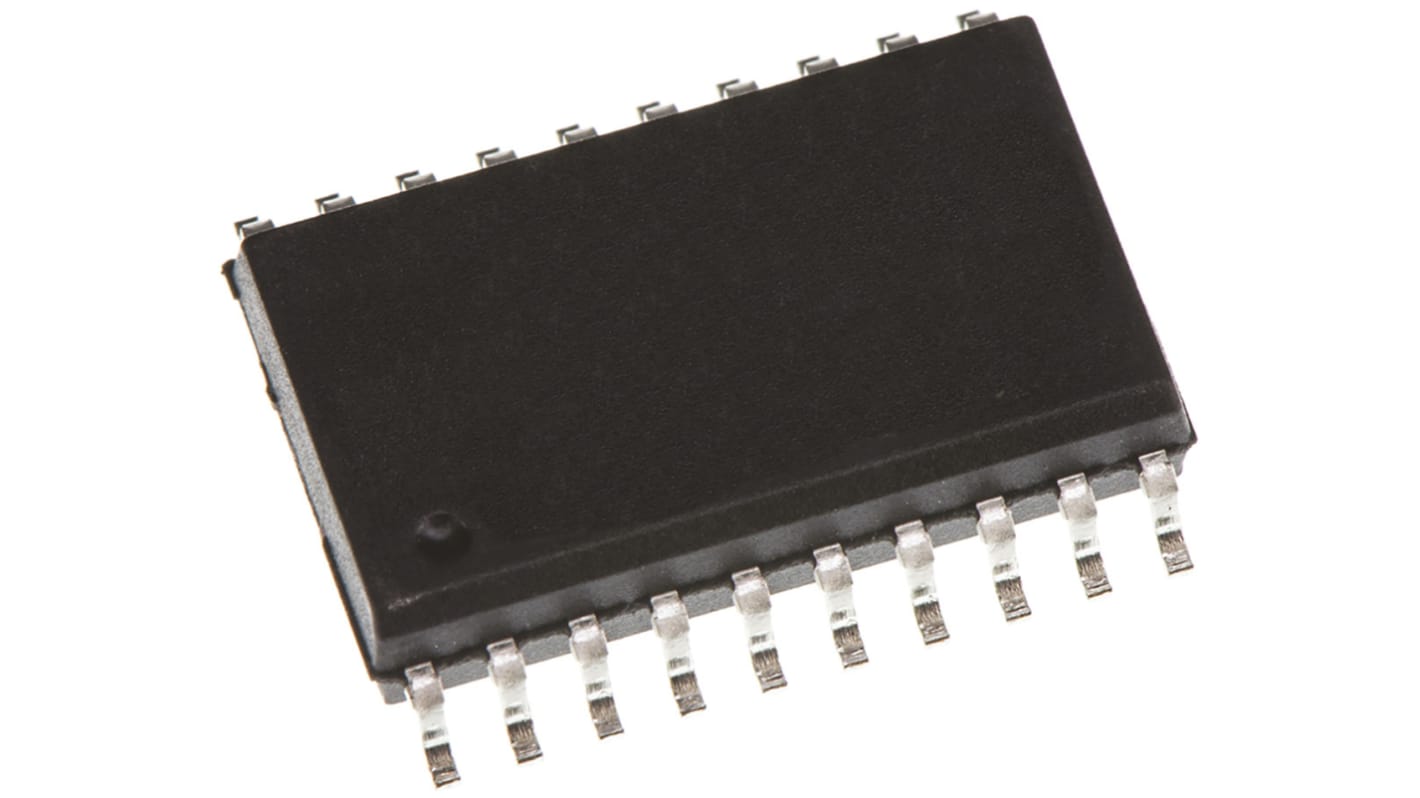

Texas Instruments SN74AC245DWR, 1 Bus Transceiver, 8-Bit Non-Inverting CMOS, 20-Pin SOIC

View all Bus Transceivers
Discontinued
Packaging Options:
RS Stock No.:
662-7575
Mfr. Part No.:
SN74AC245DWR
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Family

AC

Logic Function

Bus Transceiver

Number of Elements per Chip

1

Number of Channels per Chip

8

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

20

Input Level

CMOS

Output Level

CMOS

Maximum High Level Output Current

-24mA

Maximum Low Level Output Current

24mA

Maximum Propagation Delay Time @ Maximum CL

8.5 ns @ 3.3 V

Minimum Operating Temperature

-40 °C

Propagation Delay Test Condition

50pF

Dimensions

12.8 x 7.52 x 2.35mm

Height

2.35mm

Maximum Operating Temperature

+85 °C

Minimum Operating Supply Voltage

2 V

Length

12.8mm

Width

7.52mm

Maximum Operating Supply Voltage

6 V

74AC Family, Texas Instruments


Advanced CMOS logic
Operating Voltage: 1.5 to 5.5 V and 2 to 6 V
Compatibility: Input CMOS, Output CMOS


74AC Family
