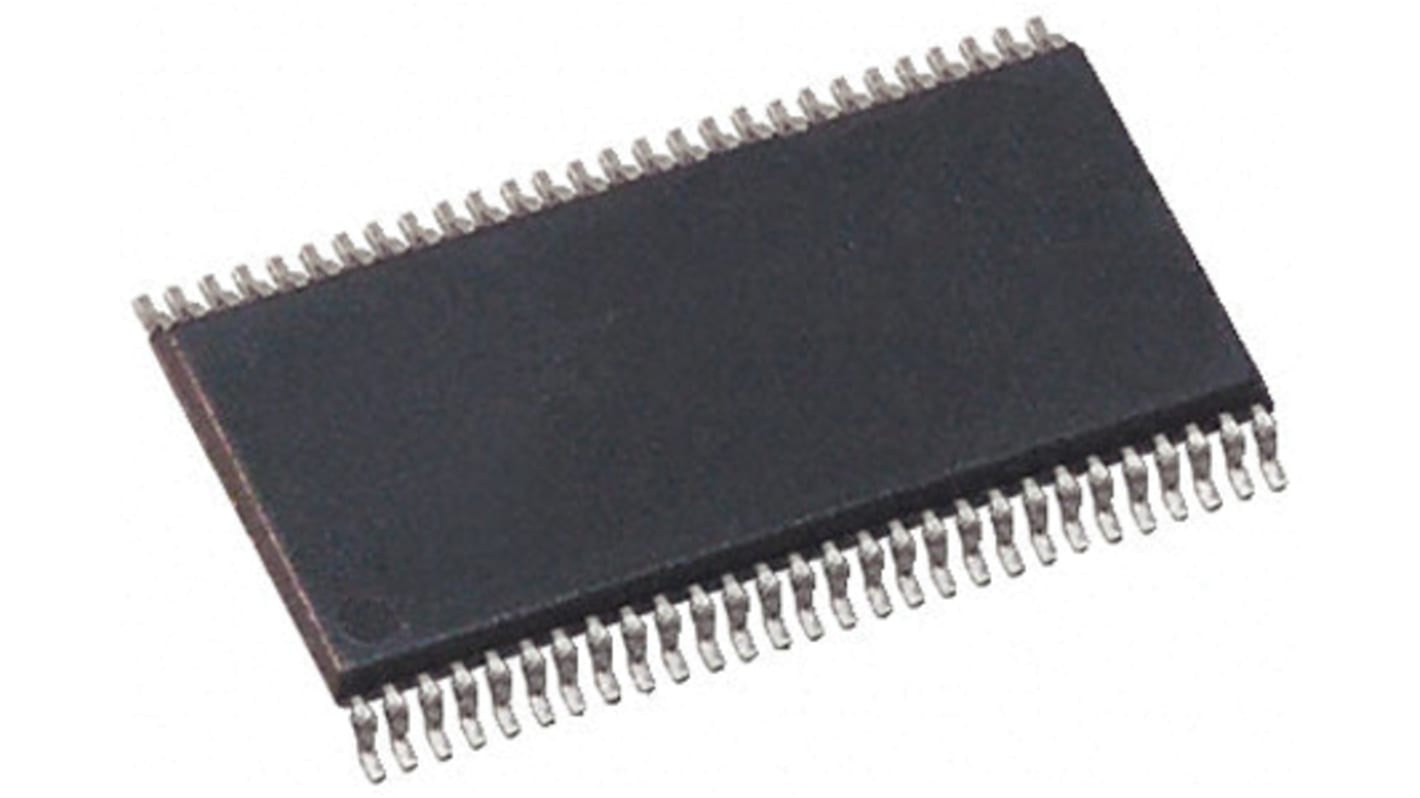

Texas Instruments SN74LVTH16543DGGR, Dual Bus Transceiver, 16-Bit Non-Inverting LVTTL, 56-Pin TSSOP
- RS Stock No.:
- 653-2525P
- Mfr. Part No.:
- SN74LVTH16543DGGR
- Brand:
- Texas Instruments
Subtotal 15 units (supplied on a continuous strip)*
£13.80
(exc. VAT)
£16.50
(inc. VAT)
Units | Per unit |
---|---|
15 - 99 | £0.92 |
100 - 249 | £0.84 |
250 - 499 | £0.81 |
500 + | £0.80 |
*price indicative
- RS Stock No.:
- 653-2525P
- Mfr. Part No.:
- SN74LVTH16543DGGR
- Brand:
- Texas Instruments
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Logic Family | LVT | |
Logic Function | Latched Transceiver | |
Number of Elements per Chip | 2 | |
Number of Channels per Chip | 16 | |
Polarity | Non-Inverting | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Pin Count | 56 | |
Input Level | LVTTL | |
Output Level | LVTTL | |
Maximum High Level Output Current | -32mA | |
Maximum Low Level Output Current | 64mA | |
Maximum Propagation Delay Time @ Maximum CL | 3.7 ns @ 2.7 V | |
Minimum Operating Supply Voltage | 2.7 V | |
Width | 6.1mm | |
Maximum Operating Supply Voltage | 3.6 V | |
Length | 14mm | |
Maximum Operating Temperature | +85 °C | |
Propagation Delay Test Condition | 50pF | |
Dimensions | 14 x 6.1 x 1.15mm | |
Minimum Operating Temperature | -40 °C | |
Height | 1.15mm | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Logic Family LVT | ||
Logic Function Latched Transceiver | ||
Number of Elements per Chip 2 | ||
Number of Channels per Chip 16 | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 56 | ||
Input Level LVTTL | ||
Output Level LVTTL | ||
Maximum High Level Output Current -32mA | ||
Maximum Low Level Output Current 64mA | ||
Maximum Propagation Delay Time @ Maximum CL 3.7 ns @ 2.7 V | ||
Minimum Operating Supply Voltage 2.7 V | ||
Width 6.1mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Length 14mm | ||
Maximum Operating Temperature +85 °C | ||
Propagation Delay Test Condition 50pF | ||
Dimensions 14 x 6.1 x 1.15mm | ||
Minimum Operating Temperature -40 °C | ||
Height 1.15mm | ||
74LVTH Family, Texas Instruments
Operating Voltage: 2.7 to 3.6
Bus Hold feature on inputs eliminates need for large pull-ups
Compatibility: Input LVTTL/TTL, Output LVTTL
