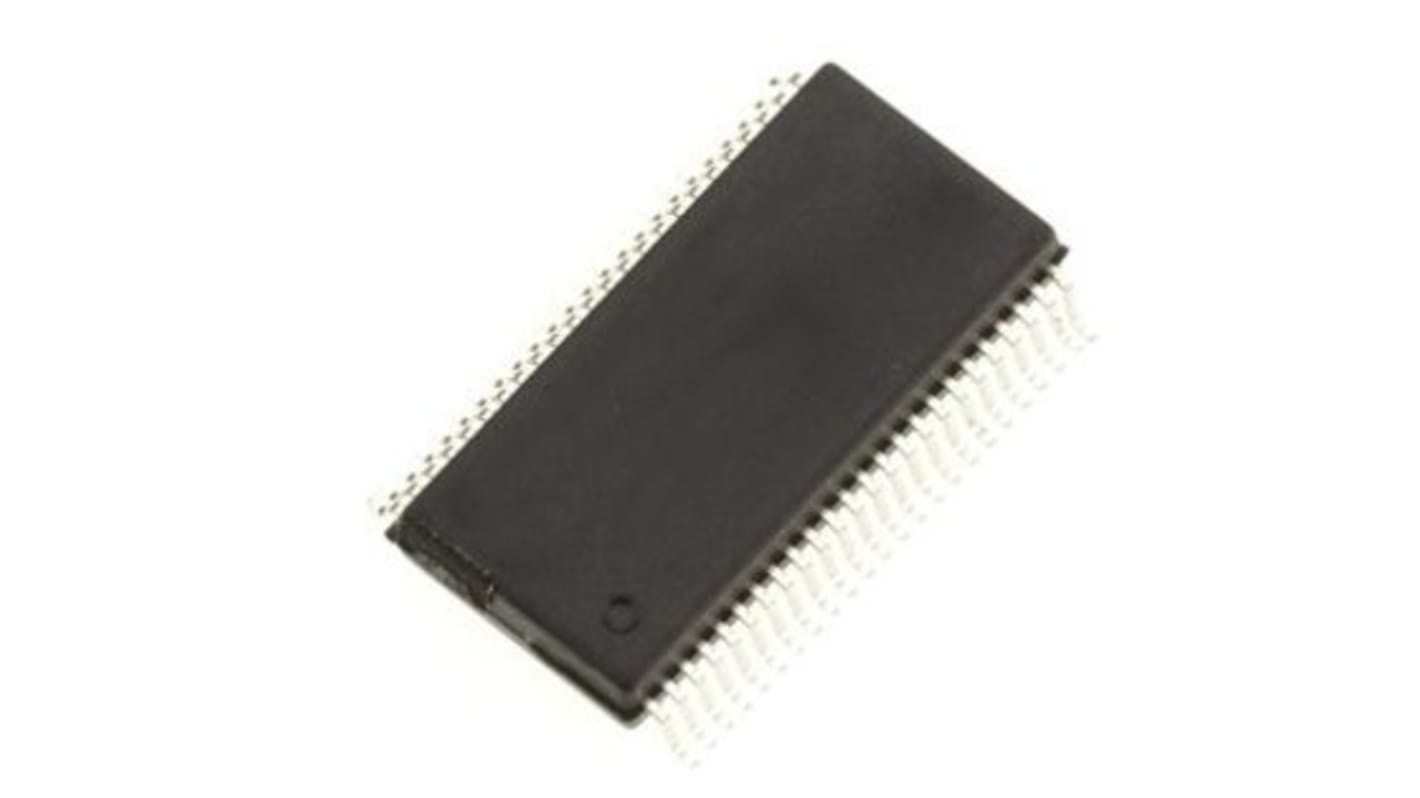

Renesas Electronics 74FCT162245ATPVG, 36 Bus Transceiver, 16-Bit Non-Inverting 3-State, 48-Pin SSOP
- RS Stock No.:
- 217-7902
- Mfr. Part No.:
- 74FCT162245ATPVG
- Brand:
- Renesas Electronics
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each (In a Tube of 30)
£0.944
(exc. VAT)
£1.133
(inc. VAT)
Units | Per unit | Per Tube* |
---|---|---|
30 - 90 | £0.944 | £28.32 |
120 - 480 | £0.726 | £21.78 |
510 - 990 | £0.639 | £19.17 |
1020 - 2490 | £0.504 | £15.12 |
2520 + | £0.47 | £14.10 |
*price indicative
- RS Stock No.:
- 217-7902
- Mfr. Part No.:
- 74FCT162245ATPVG
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics 74FCT162245T 16-bit high-speed, low-power transceiver is ideal for synchronous communication between two buses and can operate as either two independent 8-bit transceivers or one 16-bit transceiver. The 74FCT162245T offers low ground bounce, minimal undershoot, and controlled output fall times–reducing the need for external series terminating resistors. It is a plug-in replacement for the 74FCT16245T for on-board interface applications. The 74FCT162245T operates at -40C to +85C. (For Mil version, see 54FCT162245T)
A and C speeds
High-speed, low-power CMOS
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage ? 1 uA (max.)
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
Balanced Output Drivers: ±24mA
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25C
High-speed, low-power CMOS
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage ? 1 uA (max.)
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
Balanced Output Drivers: ±24mA
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25C
Specifications
Attribute | Value |
---|---|
Logic Family | 74FCT |
Logic Function | Bus Transceiver |
Number of Elements per Chip | 36 |
Number of Channels per Chip | 16 |
Polarity | Non-Inverting |
Package Type | SSOP |
Pin Count | 48 |
Output Level | 3-State |
