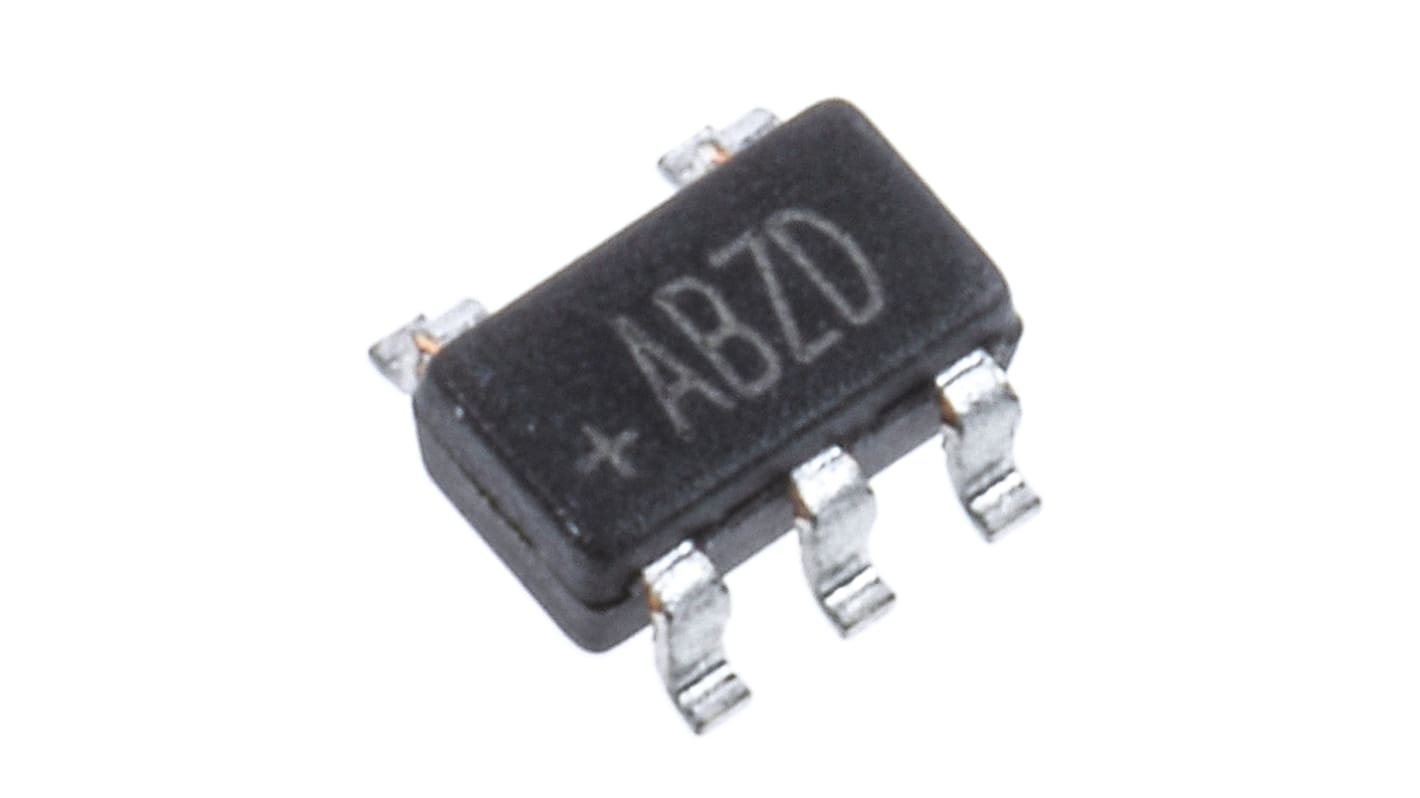

Toshiba TC7SZ07FU,LJ(CT Non-Inverting Open Drain Buffer, 5-Pin SSOP
- RS Stock No.:
- 896-6762
- Mfr. Part No.:
- TC7SZ07FU,LJ(CT
- Brand:
- Toshiba
Discontinued
- RS Stock No.:
- 896-6762
- Mfr. Part No.:
- TC7SZ07FU,LJ(CT
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Logic Family | CMOS | |
| Logic Function | Line Driver | |
| Number of Channels | 1 | |
| Schmitt Trigger Input | No | |
| Input Type | Open Drain | |
| Output Type | Open Drain | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 5 | |
| Maximum Low Level Output Current | 32mA | |
| Maximum Propagation Delay Time @ Maximum CL | 10.5 ns @ 50 pF | |
| Dimensions | 2.9 x 1.6 x 1mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Width | 1.6mm | |
| Minimum Operating Supply Voltage | 1.5 V | |
| Propagation Delay Test Condition | 50pF | |
| Length | 2.9mm | |
| Height | 1mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Logic Family CMOS | ||
Logic Function Line Driver | ||
Number of Channels 1 | ||
Schmitt Trigger Input No | ||
Input Type Open Drain | ||
Output Type Open Drain | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 5 | ||
Maximum Low Level Output Current 32mA | ||
Maximum Propagation Delay Time @ Maximum CL 10.5 ns @ 50 pF | ||
Dimensions 2.9 x 1.6 x 1mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Width 1.6mm | ||
Minimum Operating Supply Voltage 1.5 V | ||
Propagation Delay Test Condition 50pF | ||
Length 2.9mm | ||
Height 1mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- TH
L-MOS SHS Series, Low Voltage, Toshiba
The TC7SZ/WZ/PZ Toshiba SHS series is a family of Low-voltage One-Gate CMOS (L-MOS) logic devices.
• 1.8 - 5.5V operation
L-MOS Family Logic ICs
One-Gate Logic (L-MOS)
