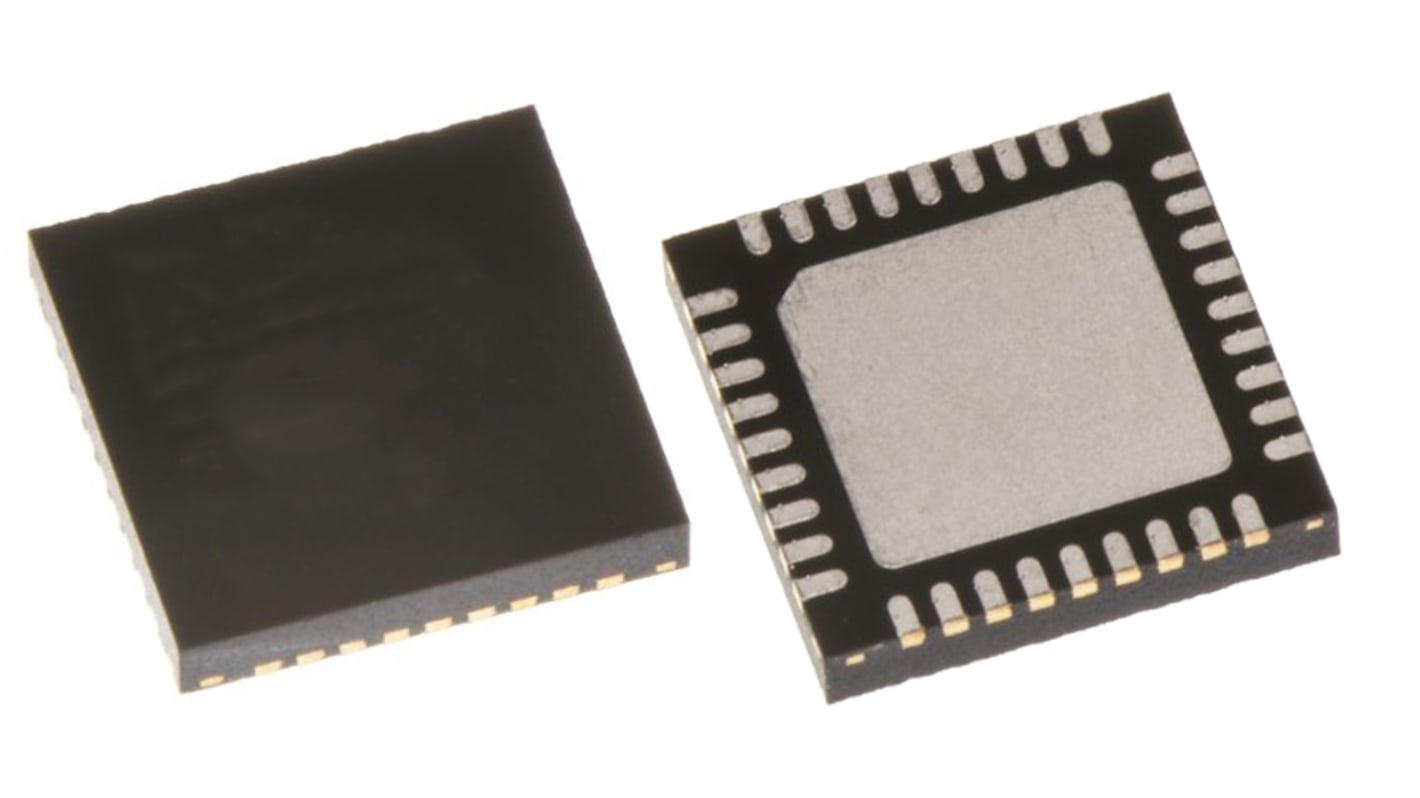

Renesas Electronics 9ZX21200AKLF, Quad-Channel Schmitt Trigger Buffer
- RS Stock No.:
- 249-4409
- Mfr. Part No.:
- 9ZX21200AKLF
- Brand:
- Renesas Electronics
Subtotal (1 tray of 260 units)*
£738.14
(exc. VAT)
£885.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 260 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
260 + | £2.839 | £738.14 |
*price indicative
- RS Stock No.:
- 249-4409
- Mfr. Part No.:
- 9ZX21200AKLF
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Renesas Electronics | |
Logic Family | HC | |
Logic Function | Buffer | |
Number of Channels | 4 | |
IC Type | Buffer IC | |
Schmitt Trigger Input | Yes | |
Input Type | Single Ended | |
Select all | ||
---|---|---|
Brand Renesas Electronics | ||
Logic Family HC | ||
Logic Function Buffer | ||
Number of Channels 4 | ||
IC Type Buffer IC | ||
Schmitt Trigger Input Yes | ||
Input Type Single Ended | ||
The Renesas Electronics 9ZX21200 is a small-footprint 12-output differential buffer that meets all the performance requirements of the Intel DB1200Z specification. The 9ZX21200 is backwards compatible to PCIe Gen1 and Gen2 applications. A fixed, internal feedback path maintains low drift for critical QPI applications. In bypass mode, the 9ZX21200 can provide outputs up to 150MHz.
12 - 0.7V HCSL differential output pairs
Phase jitter: PCIe Gen3 < 1ps rms
Phase jitter: PCIe Gen2 < 3.1ps rms
Phase jitter: PCIe Gen1 < 86ps peak to peak
Phase jitter: QPI 9.6GT/s < 0.2ps rmsSupports zero delay buffer mode and fan-out mode
Bandwidth programming available
9 selectable SMBus Addresses
4 OE# pins90-147 MHz operation in PLL mode
33-150 MHz operation in Bypass mode
Phase jitter: PCIe Gen3 < 1ps rms
Phase jitter: PCIe Gen2 < 3.1ps rms
Phase jitter: PCIe Gen1 < 86ps peak to peak
Phase jitter: QPI 9.6GT/s < 0.2ps rmsSupports zero delay buffer mode and fan-out mode
Bandwidth programming available
9 selectable SMBus Addresses
4 OE# pins90-147 MHz operation in PLL mode
33-150 MHz operation in Bypass mode
