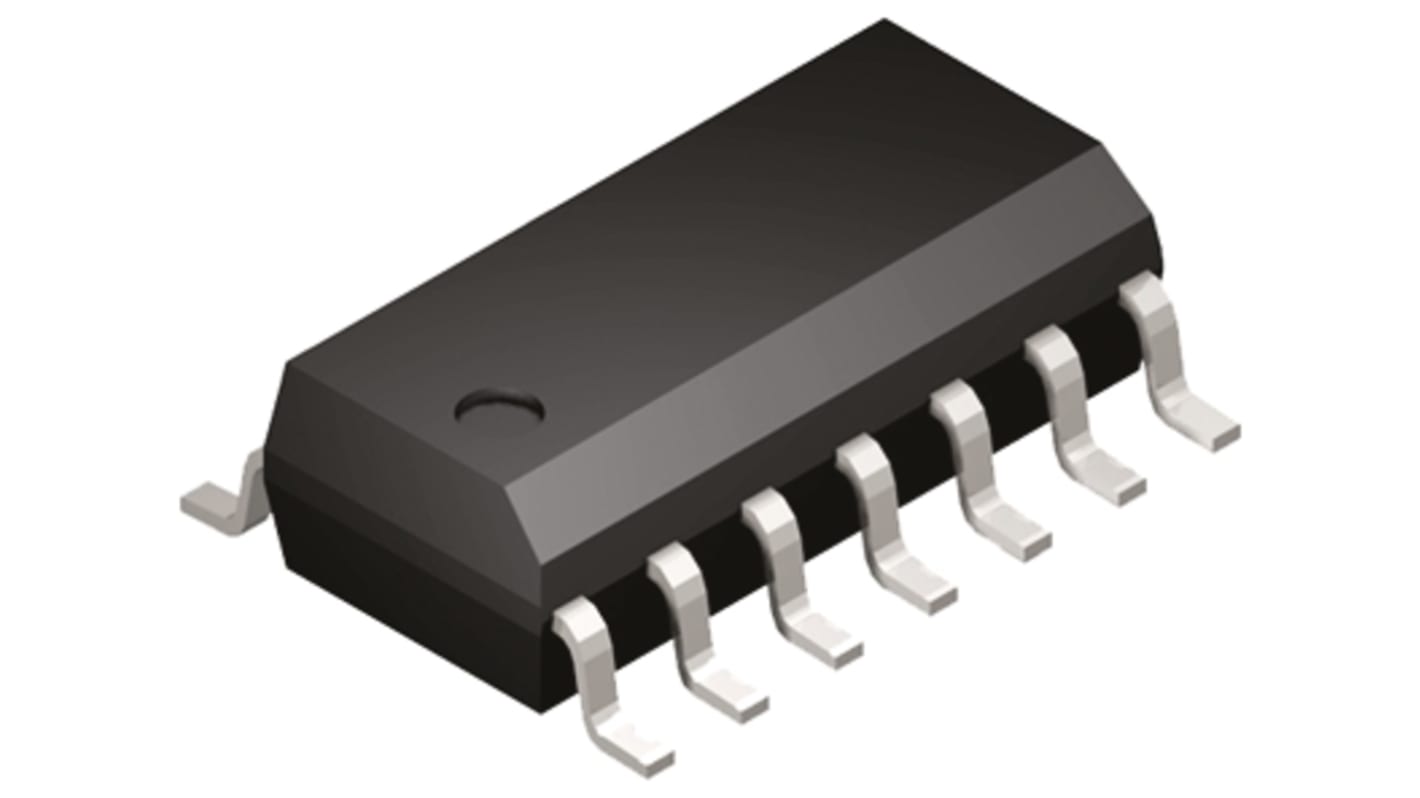

onsemi MC74ACT125DG, 4-Channel Non-Inverting 3 State Buffer, 14-Pin SOIC
- RS Stock No.:
- 145-2970
- Mfr. Part No.:
- MC74ACT125DG
- Brand:
- onsemi
Bulk discount available
Subtotal (1 tube of 55 units)*
£20.35
(exc. VAT)
£24.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 110 unit(s) shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 55 - 55 | £0.37 | £20.35 |
| 110 - 990 | £0.251 | £13.81 |
| 1045 - 2475 | £0.244 | £13.42 |
| 2530 - 9955 | £0.238 | £13.09 |
| 10010 + | £0.232 | £12.76 |
*price indicative
- RS Stock No.:
- 145-2970
- Mfr. Part No.:
- MC74ACT125DG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Buffer | |
| Logic Family | ACT | |
| Logic Function | Buffer | |
| Number of Channels | 4 | |
| Schmitt Trigger Input | No | |
| Input Type | Single Ended | |
| Output Type | 3 State | |
| Mount Type | Surface | |
| Polarity | Non-Inverting | |
| Package Type | SOIC | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 14 | |
| Maximum High Level Output Current | 24mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 10ns | |
| Maximum Low Level Output Current | -24mA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Width | 4 mm | |
| Height | 1.5mm | |
| Series | MC74AC | |
| Length | 8.75mm | |
| Automotive Standard | No | |
| Supply Current | 50mA | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Buffer | ||
Logic Family ACT | ||
Logic Function Buffer | ||
Number of Channels 4 | ||
Schmitt Trigger Input No | ||
Input Type Single Ended | ||
Output Type 3 State | ||
Mount Type Surface | ||
Polarity Non-Inverting | ||
Package Type SOIC | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 14 | ||
Maximum High Level Output Current 24mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 10ns | ||
Maximum Low Level Output Current -24mA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Width 4 mm | ||
Height 1.5mm | ||
Series MC74AC | ||
Length 8.75mm | ||
Automotive Standard No | ||
Supply Current 50mA | ||
- COO (Country of Origin):
- PH
MC74ACT Family, ON Semiconductor
74ACT Family
