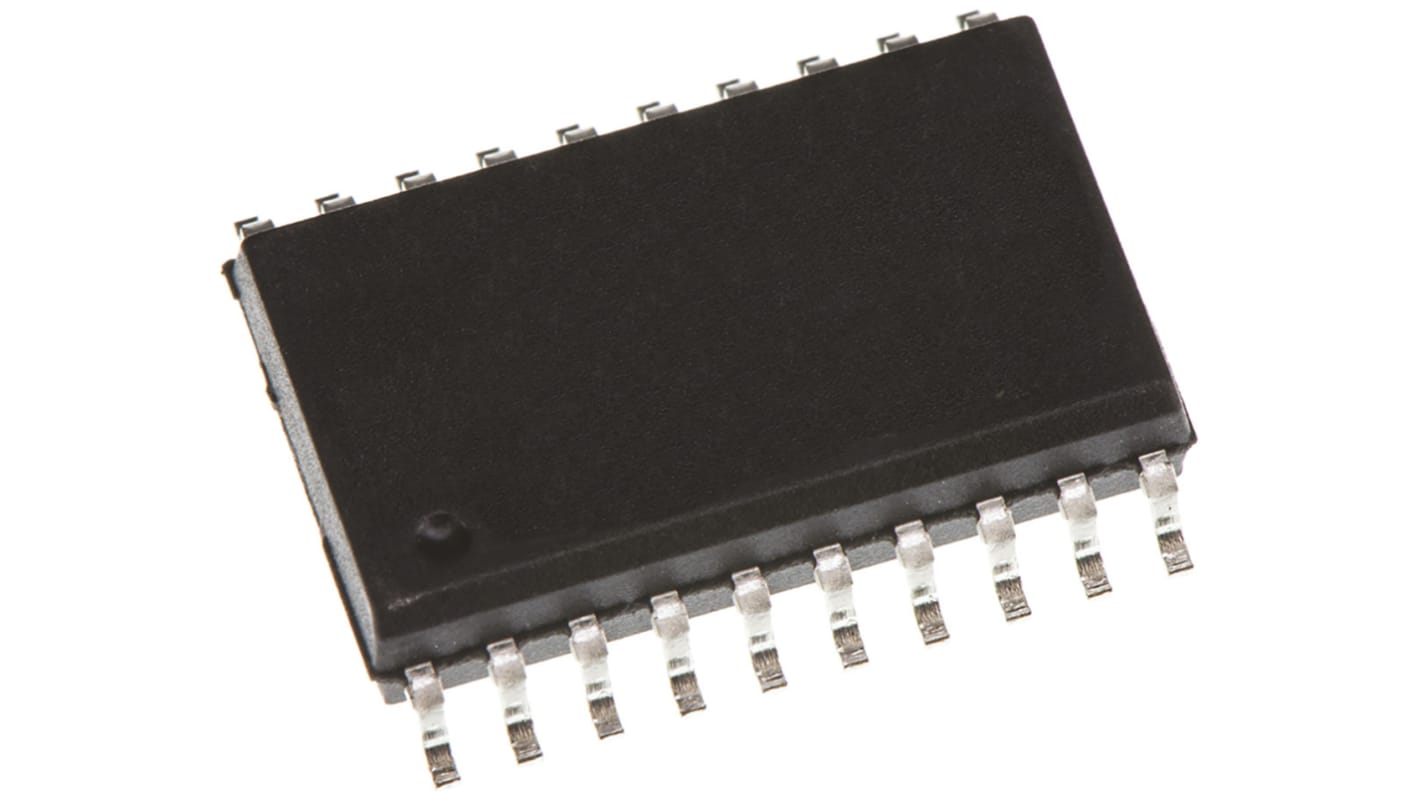

Nexperia 74HCT7541D,112, Octal-Channel Non-Inverting Schmitt Trigger 3-State Buffer, 20-Pin SOIC

  • RS Stock No. 103-5688
  • Mfr. Part No. 74HCT7541D,112
  • Brand Nexperia
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

74HCT Family Inverters & Buffers, Nexperia

High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS

74HCT Family

Specifications
Attribute Value
Logic Family HCT
Logic Function Buffer, Line Driver
Number of Channels 8
Schmitt Trigger Input Yes
Input Type Single Ended
Output Type 3 State
Polarity Non-Inverting
Mounting Type Surface Mount
Package Type SOIC
Pin Count 20
Maximum High Level Output Current -6mA
Maximum Low Level Output Current 6mA
Maximum Propagation Delay Time @ Maximum CL 32 ns @ 4.5 V
Dimensions 13 x 7.6 x 2.45mm
Propagation Delay Test Condition 50pF
Minimum Operating Supply Voltage 4.5 V
Width 7.6mm
Length 13mm
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -40 °C
Maximum Operating Supply Voltage 5.5 V
Height 2.45mm
532 In stock for FREE next working day delivery
Price Each (In a Tube of 38)
£ 1.415
(exc. VAT)
£ 1.698
(inc. VAT)
Units
Per unit
Per Tube*
38 +
£1.415
£53.77
*price indicative
