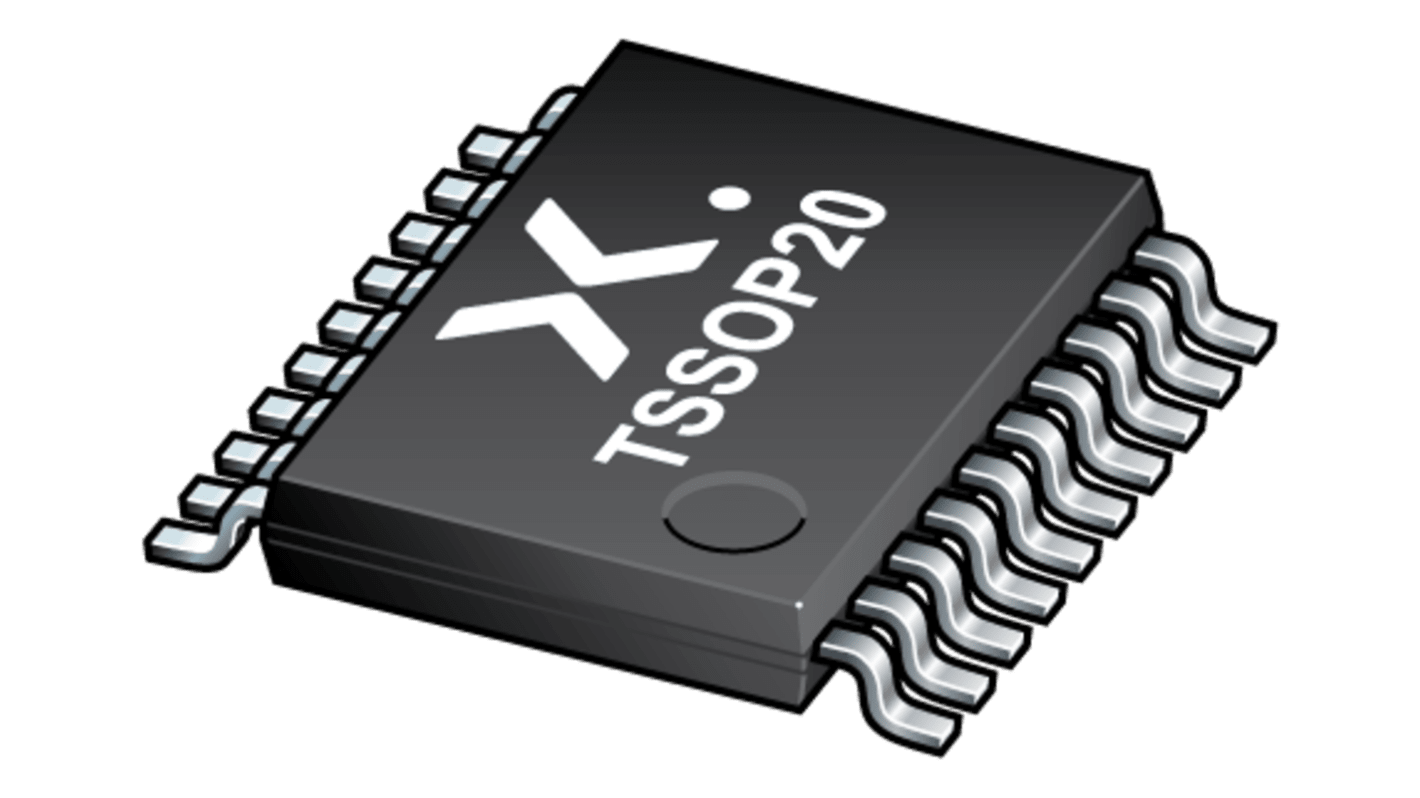

Nexperia 74LV244APWJ, 8-Channel Non-Inverting Schmitt Trigger Input 3 State Buffer, 20-Pin TSSOP-20

View all Buffers
Bulk discount available

Subtotal (1 unit)*

£0.35

(exc. VAT)

£0.42

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£0.35
25 - 99£0.32
100 - 499£0.29
500 +£0.21

*price indicative

RS Stock No.:
625-412
Mfr. Part No.:
74LV244APWJ
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Product Type

Buffer

Logic Family

LV

Logic Function

Buffer & Line Driver

Number of Channels

8

Schmitt Trigger Input

Yes

Input Type

Single Ended

Mount Type

Surface

Output Type

3 State

Polarity

Non-Inverting

Minimum Supply Voltage

2V

Package Type

TSSOP-20

Maximum Supply Voltage

5.5V

Pin Count

20

Minimum Operating Temperature

-40°C

Maximum High Level Output Current

16mA

Maximum Propagation Delay Time @ CL

6.5ns

Maximum Low Level Output Current

16mA

Maximum Operating Temperature

125°C

Length

6.6mm

Standards/Approvals

ANSI/ESDA/JEDEC JS-002 Class C3, JESD 78 Class II, ANSI/ESDA/JEDEC JS-001 Class 2

Height

1.1mm

Width

4.4 mm

Series

74LV244A

Supply Current

20μA

Automotive Standard

No

COO (Country of Origin):
CN
The Nexperia 8-bit buffer/line driver is designed with 3-state outputs and features two output enable pins (1OE and 2OE). A high level on nOE places the associated outputs in a high-impedance state. Its overvoltage-tolerant inputs make it suitable for use as a translator in mixed voltage environments.

Supports mixed mode voltage operation on all ports

IOFF circuitry provides partial Power down mode operation

Latch up performance exceeds 250 mA per JESD 78 Class II
