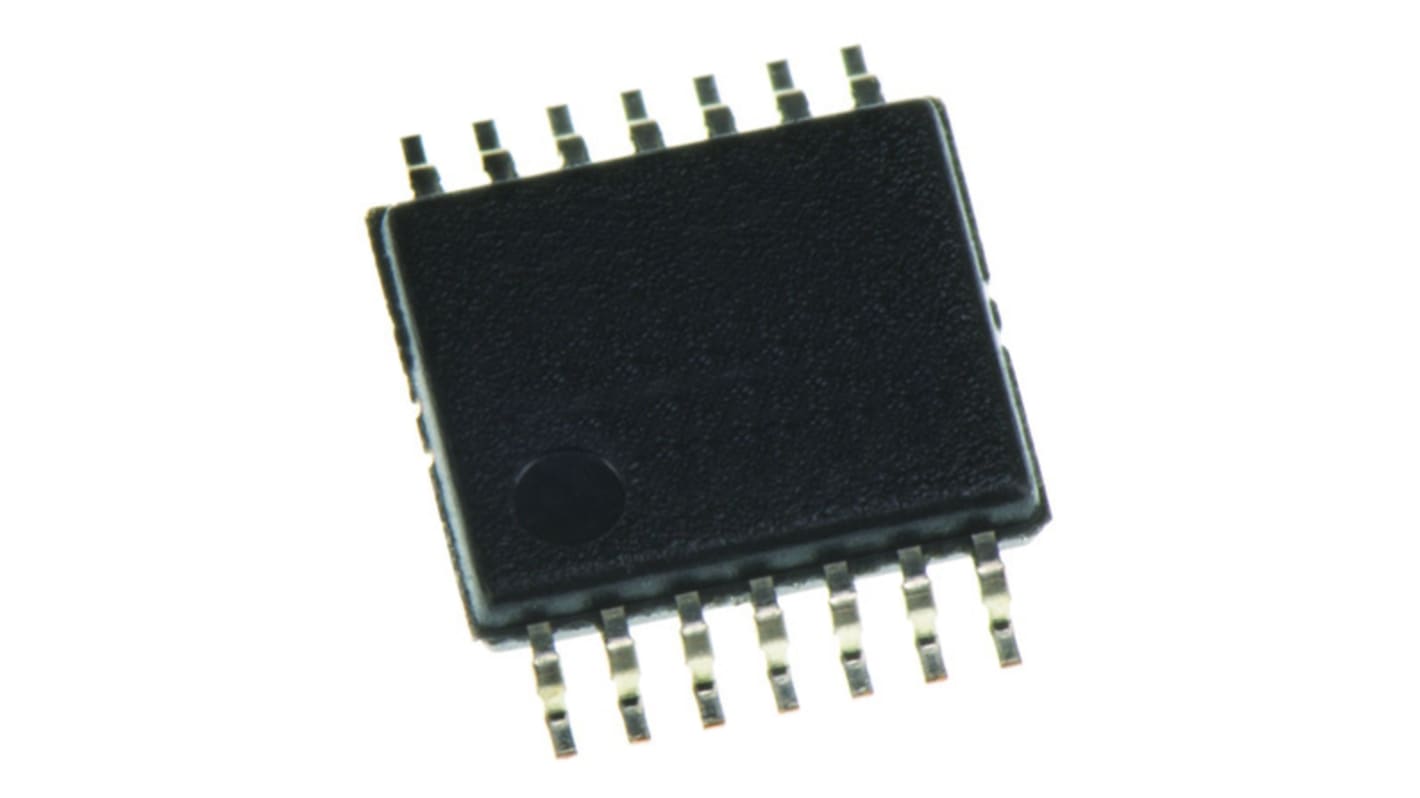

Texas Instruments, LM5010MH/NOPB Adjustable Switching Regulator, 1-Channel 1A Adjustable 14-Pin, TSSOP
- RS Stock No.:
- 921-6989
- Mfr. Part No.:
- LM5010MH/NOPB
- Brand:
- Texas Instruments
Available to back order for despatch 04/07/2024
Added
Price Each (In a Tube of 94)
£2.694
(exc. VAT)
£3.233
(inc. VAT)
| Units | Per unit | Per Tube* |
| 94 + | £2.694 | £253.236 |
| *price indicative | ||
- RS Stock No.:
- 921-6989
- Mfr. Part No.:
- LM5010MH/NOPB
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
Constant On-Time (COT) Step-Down DC/DC Converters (Integrated Switch), Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 70 V |
| Minimum Output Voltage | 2.5 V |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 75 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 14 |
| Maximum Switching Frequency | 1 MHz |
| Package Type | TSSOP |
| Switching Regulator | Yes |
| Length | 5mm |
| Width | 4.4mm |
| Height | 0.9mm |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 5 x 4.4 x 0.9mm |
| Minimum Operating Temperature | -40 °C |
