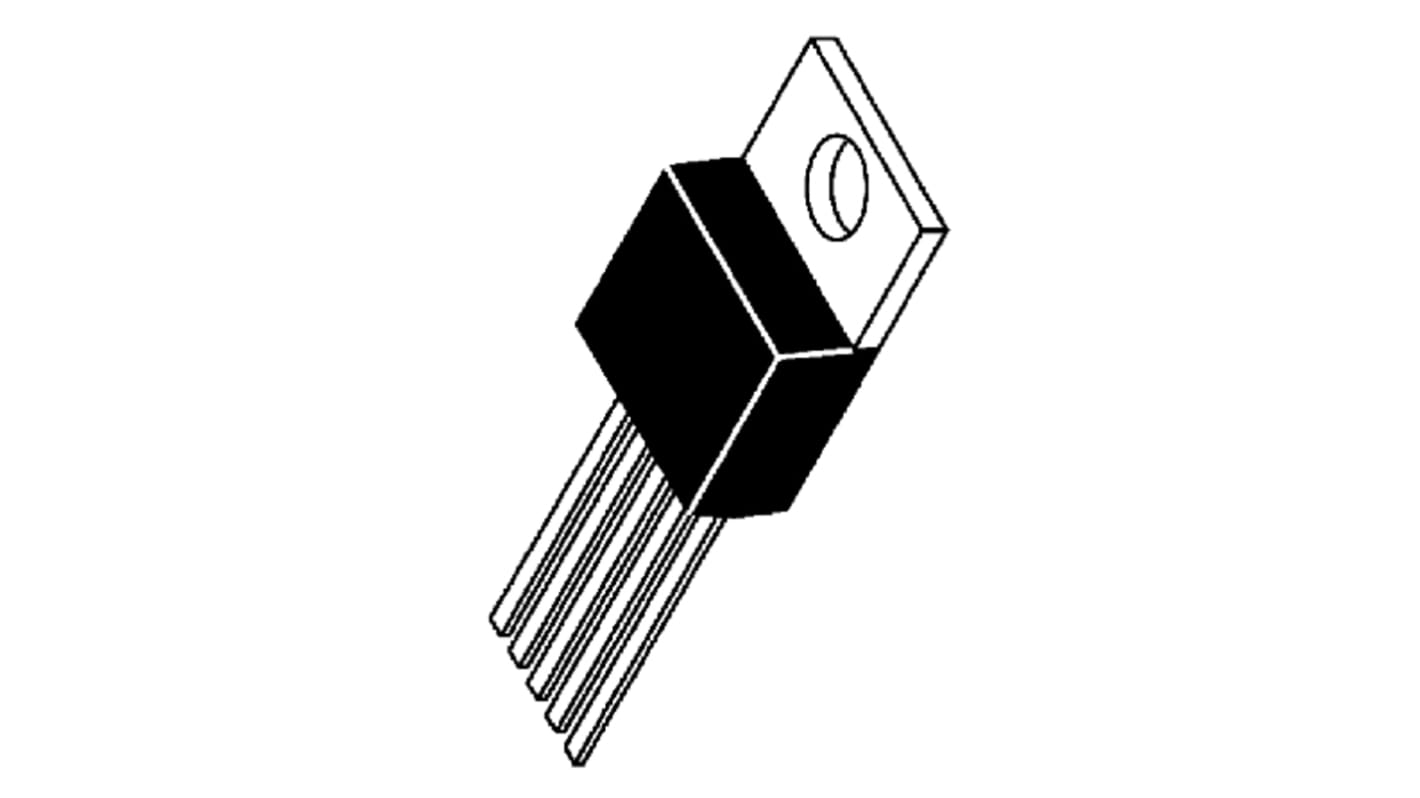

Texas Instruments, LM2596T-12/NOPB Step-Down Switching Regulator, 1-Channel 3A 5-Pin, TO-220

RS Stock No.:: 920-3598
Mfr. Part No.:: LM2596T-12/NOPB
Brand:: Texas Instruments

Texas Instruments, LM2596T-12/NOPB Step-Down Switching Regulator, 1-Channel 3A 5-Pin, TO-220

36 In stock - FREE next working day delivery available

Price Each (In a Tube of 45)

£3.96

(exc. VAT)

£4.75

(inc. VAT)

Units	Per unit	Per Tube*
45 - 45	£3.96	£178.20
90 - 180	£3.762	£169.29
225 +	£3.564	£160.38

*price indicative

RS Stock No.:: 920-3598
Mfr. Part No.:: LM2596T-12/NOPB
Brand:: Texas Instruments

Attribute	Value
Maximum Output Current	3A
Regulator Function	Buck Controller, Inverting
Minimum Input Voltage	4.5 V
Maximum Input Voltage	40 V
Output Type	Fixed
Mounting Type	Through Hole
Number of Outputs	1
Maximum Switching Frequency	173 kHz
Pin Count	5
Package Type	TO-220
Switching Regulator	Yes
Minimum Operating Temperature	-40 °C
Dimensions	10.16 x 4.57 x 8.64mm
Width	4.57mm
Length	10.16mm
Maximum Operating Temperature	+125 °C
Height	8.64mm

Texas Instruments, LM2596T-12/NOPB Step-Down Switching Regulator, 1-Channel 3A 5-Pin, TO-220

SIMPLE SWITCHER® Step-Down Regulators, LM259x Series
