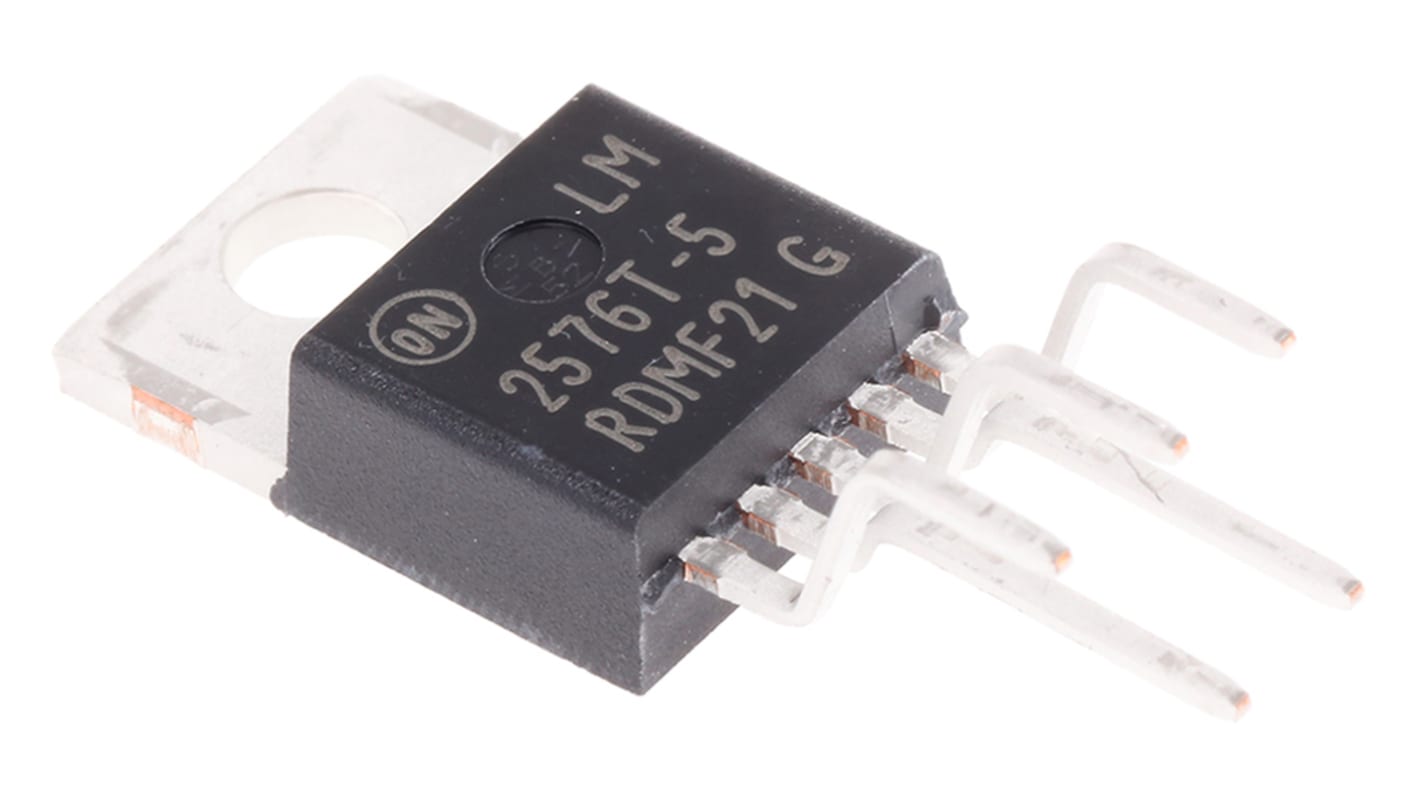

onsemi, LM2576TV-5G Switching Regulator, 1-Channel 3A 5-Pin, TO-220
- RS Stock No.:
- 786-2381
- Mfr. Part No.:
- LM2576TV-5G
- Brand:
- onsemi
Subtotal (1 pack of 5 units)*
£9.99
(exc. VAT)
£11.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 30 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.998 | £9.99 |
*price indicative
- RS Stock No.:
- 786-2381
- Mfr. Part No.:
- LM2576TV-5G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Output Current | 3A | |
| Maximum Output Voltage | 5 V | |
| Regulator Function | Buck Controller | |
| Maximum Input Voltage | 40 V | |
| Output Type | Fixed | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Maximum Switching Frequency | 52 kHz | |
| Pin Count | 5 | |
| Package Type | TO-220 | |
| Switching Regulator | Yes | |
| Minimum Operating Temperature | -40 °C | |
| Length | 10.54mm | |
| Maximum Operating Temperature | +125 °C | |
| Height | 9.271mm | |
| Width | 4.572mm | |
| Dimensions | 10.541 x 4.572 x 9.271mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Output Current 3A | ||
Maximum Output Voltage 5 V | ||
Regulator Function Buck Controller | ||
Maximum Input Voltage 40 V | ||
Output Type Fixed | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Maximum Switching Frequency 52 kHz | ||
Pin Count 5 | ||
Package Type TO-220 | ||
Switching Regulator Yes | ||
Minimum Operating Temperature -40 °C | ||
Length 10.54mm | ||
Maximum Operating Temperature +125 °C | ||
Height 9.271mm | ||
Width 4.572mm | ||
Dimensions 10.541 x 4.572 x 9.271mm | ||
Switching Regulators, Step-Down DC-DC Converters, ON Semiconductor
Current mode and voltage mode DC-DC Converters for buck (Step-down), boost (step-up) and flyback applications.
