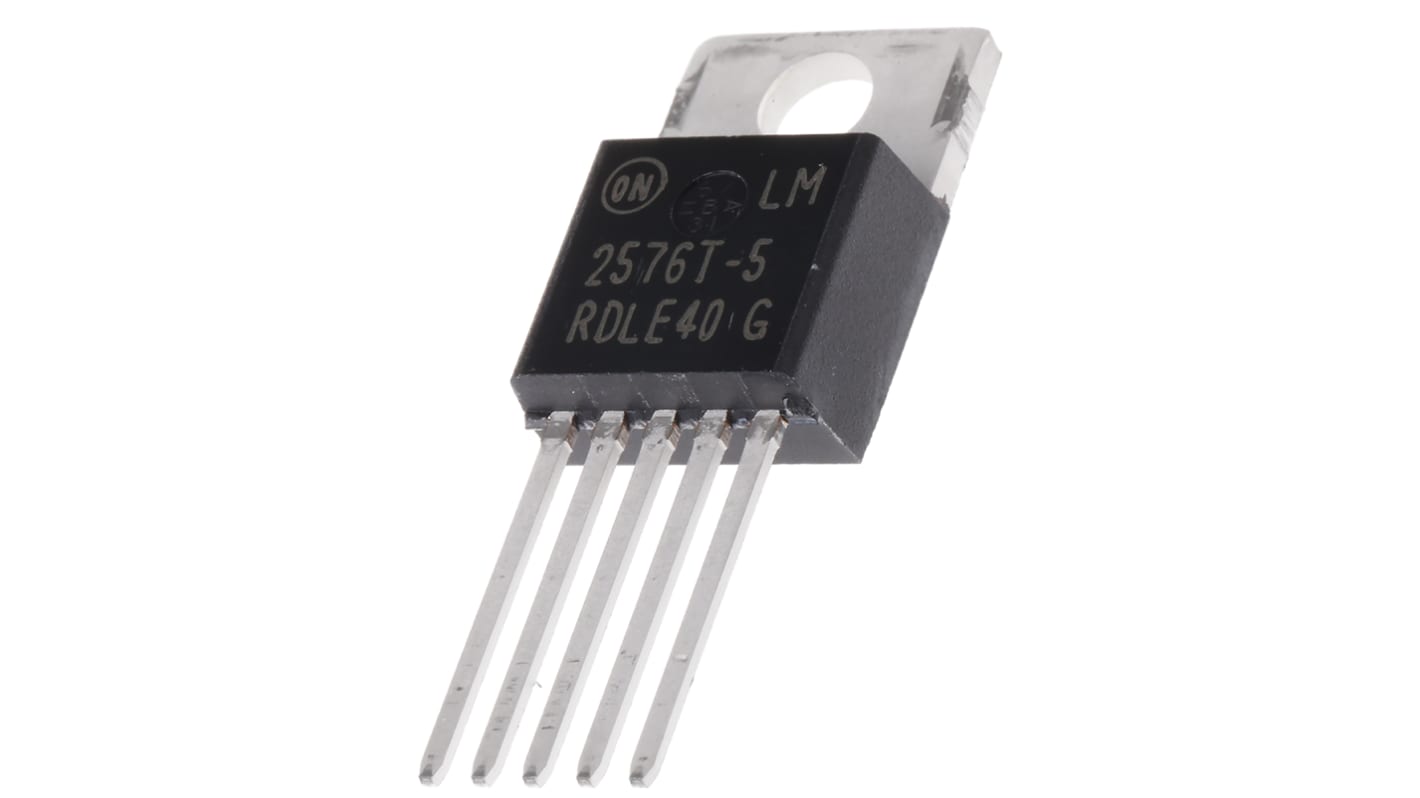

onsemi, LM2576T-005G Step-Down Switching Regulator, 1-Channel 3A 5-Pin, TO-220

RS Stock No.:: 101-8273
Mfr. Part No.:: LM2576T-005G
Brand:: onsemi

onsemi, LM2576T-005G Step-Down Switching Regulator, 1-Channel 3A 5-Pin, TO-220

Price Each (In a Tube of 50)

£1.71

(exc. VAT)

£2.05

(inc. VAT)

173 In stock - FREE next working day delivery available

Units	Per unit	Per Tube*
50 - 200	£1.71	£85.50
250 - 450	£1.539	£76.95
500 +	£1.402	£70.10

*price indicative

RS Stock No.:: 101-8273
Mfr. Part No.:: LM2576T-005G
Brand:: onsemi

Datasheet

Attribute	Value
Maximum Output Current	3A
Maximum Output Voltage	5.25 V
Regulator Function	Buck Controller, Inverting
Minimum Output Voltage	4.75 V
Minimum Input Voltage	7 V
Maximum Input Voltage	40 V
Output Type	Fixed
Mounting Type	Through Hole
Number of Outputs	1
Maximum Switching Frequency	52 kHz
Pin Count	5
Package Type	TO-220
Switching Regulator	Yes
Dimensions	10.54 x 4.57 x 9.27mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Length	10.54mm
Width	4.57mm
Height	9.27mm

onsemi, LM2576T-005G Step-Down Switching Regulator, 1-Channel 3A 5-Pin, TO-220

Switching Regulators, Step-Down DC-DC Converters, ON Semiconductor
