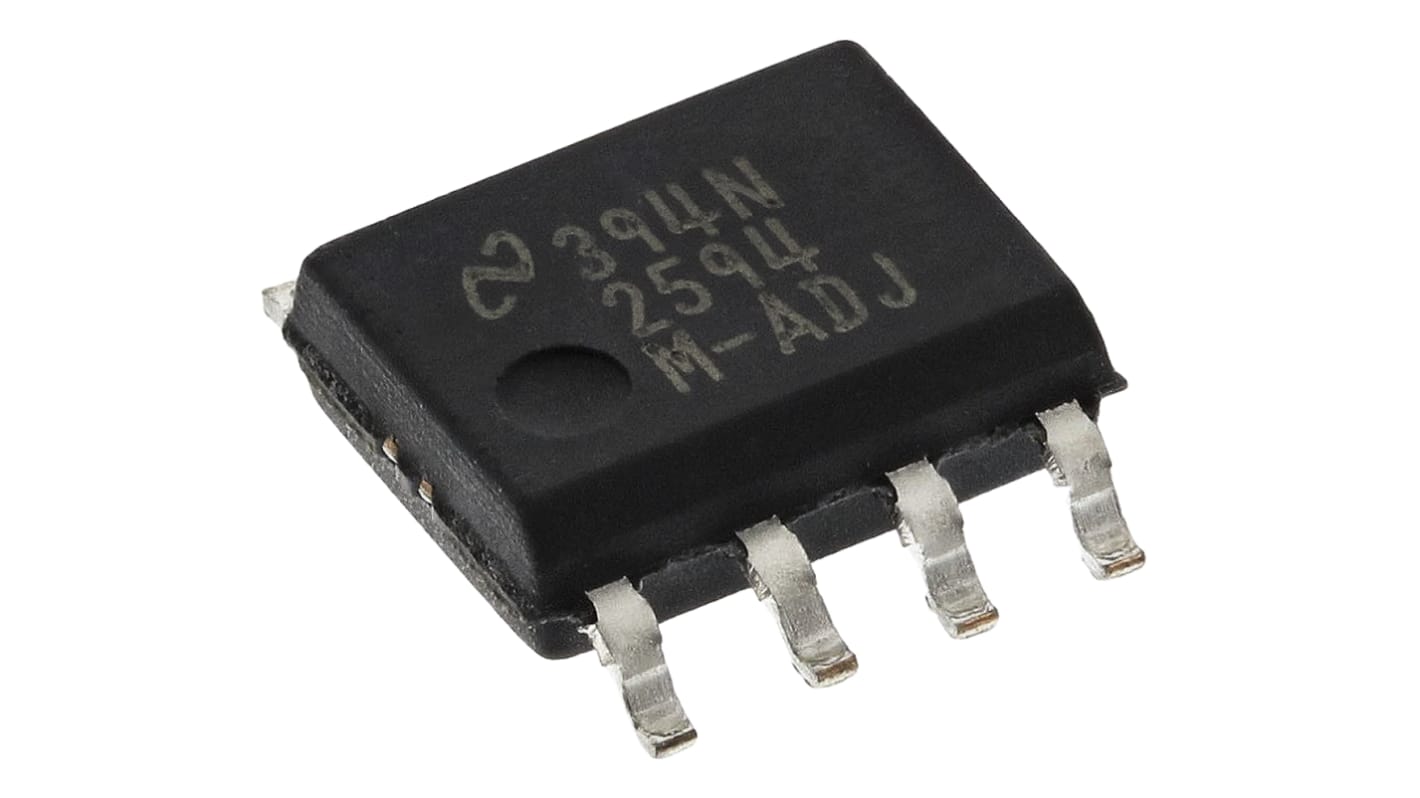

Texas Instruments, LM2594M-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 500mA Adjustable 8-Pin, SOIC
- RS Stock No.:
- 533-3563
- Mfr. Part No.:
- LM2594M-ADJ/NOPB
- Brand:
- Texas Instruments
3 In stock - FREE next working day delivery available
Added
Price Each
£3.39
(exc. VAT)
£4.07
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £3.39 |
| 5 - 9 | £3.32 |
| 10 - 24 | £3.21 |
| 25 - 49 | £3.19 |
| 50 + | £3.07 |
- RS Stock No.:
- 533-3563
- Mfr. Part No.:
- LM2594M-ADJ/NOPB
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
SIMPLE SWITCHER® Step-Down Regulators, LM259x Series
SIMPLE SWITCHER® Regulators, Texas Instruments
Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 500mA |
| Maximum Output Voltage | 37 V |
| Regulator Function | Buck Controller, Inverting |
| Minimum Output Voltage | 1.2 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Maximum Switching Frequency | 173 kHz |
| Package Type | SOIC |
| Switching Regulator | Yes |
| Height | 1.45mm |
| Efficiency | 80% |
| Width | 3.9mm |
| Length | 4.9mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 4.9 x 3.9 x 1.45mm |
