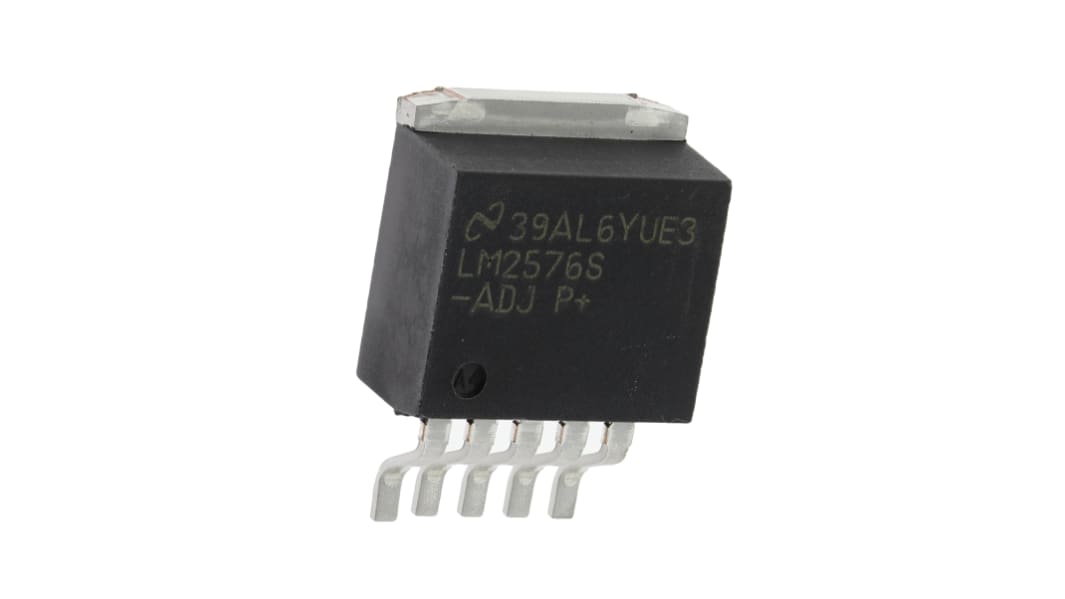

Texas Instruments, LM2576S-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 3A Adjustable 6-Pin, D2PAK

RS Stock No.:: 533-3232
Mfr. Part No.:: LM2576S-ADJ/NOPB
Brand:: Texas Instruments

Texas Instruments, LM2576S-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 3A Adjustable 6-Pin, D2PAK

Available to back order for despatch when stock is available

Price Each

£3.72

(exc. VAT)

£4.46

(inc. VAT)

Units	Per unit
1 - 4	£3.72
5 - 9	£3.53
10 - 24	£3.18
25 - 49	£2.86
50 +	£2.72

RS Stock No.:: 533-3232
Mfr. Part No.:: LM2576S-ADJ/NOPB
Brand:: Texas Instruments

Attribute	Value
Maximum Output Current	3A
Maximum Output Voltage	37 V
Regulator Function	Buck Controller, Inverting
Minimum Output Voltage	1.23 V
Minimum Input Voltage	4 V
Maximum Input Voltage	40 V
Output Type	Adjustable
Mounting Type	Surface Mount
Number of Outputs	1
Pin Count	6
Maximum Switching Frequency	58 kHz
Package Type	D2PAK (TO-263)
Switching Regulator	Yes
Height	4.57mm
Efficiency	77%
Minimum Operating Temperature	-40 °C
Dimensions	10.16 x 8.64 x 4.57mm
Length	10.16mm
Width	8.64mm
Maximum Operating Temperature	+125 °C

Texas Instruments, LM2576S-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 3A Adjustable 6-Pin, D2PAK

SIMPLE SWITCHER® Step-Down Regulators, LM257x Series
