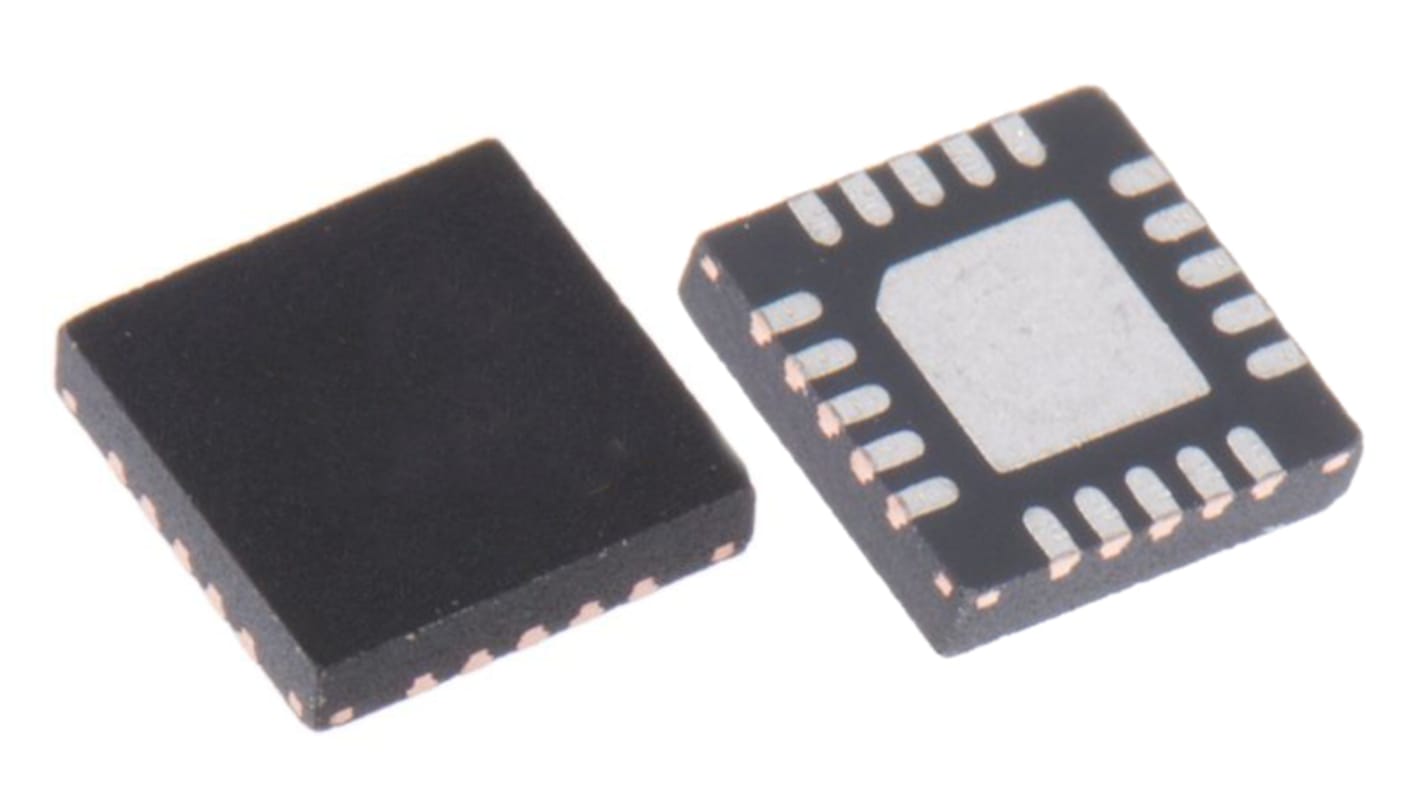

Renesas Electronics, ISL8016IRAJZ-T7A Step-Down Switching Regulator 6A
- RS Stock No.:
- 256-1644
- Mfr. Part No.:
- ISL8016IRAJZ-T7A
- Brand:
- Renesas Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 256-1644
- Mfr. Part No.:
- ISL8016IRAJZ-T7A
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Renesas Electronics | |
Maximum Output Current | 6A | |
Maximum Output Voltage | 3.3 V | |
Regulator Function | Buck Regulator | |
Minimum Input Voltage | 2.7 V | |
Select all | ||
---|---|---|
Brand Renesas Electronics | ||
Maximum Output Current 6A | ||
Maximum Output Voltage 3.3 V | ||
Regulator Function Buck Regulator | ||
Minimum Input Voltage 2.7 V | ||
The Renesas Synchronous Buck Regulator is a high efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 6A continuous output current from a 2.7V to 5.5V input supply. The output voltage is adjustable from 0.6V to VIN. With an adjustable current limit, reverse current protection, pre-bias start and over temperature protection the ISL8016 offers a highly robust power solution. It uses current control architecture to deliver fast transient response and excellent loop stability.
High Efficiency synchronous buck regulator with up to 97% efficiency
Fixed output voltage option
Adjustable current limit
Current sharing capable
Adjustable frequency from 500kHz to 4MHz - default at 1MHz
External synchronization up to 4MHz - master to slave phase shifting capability
Fixed output voltage option
Adjustable current limit
Current sharing capable
Adjustable frequency from 500kHz to 4MHz - default at 1MHz
External synchronization up to 4MHz - master to slave phase shifting capability
