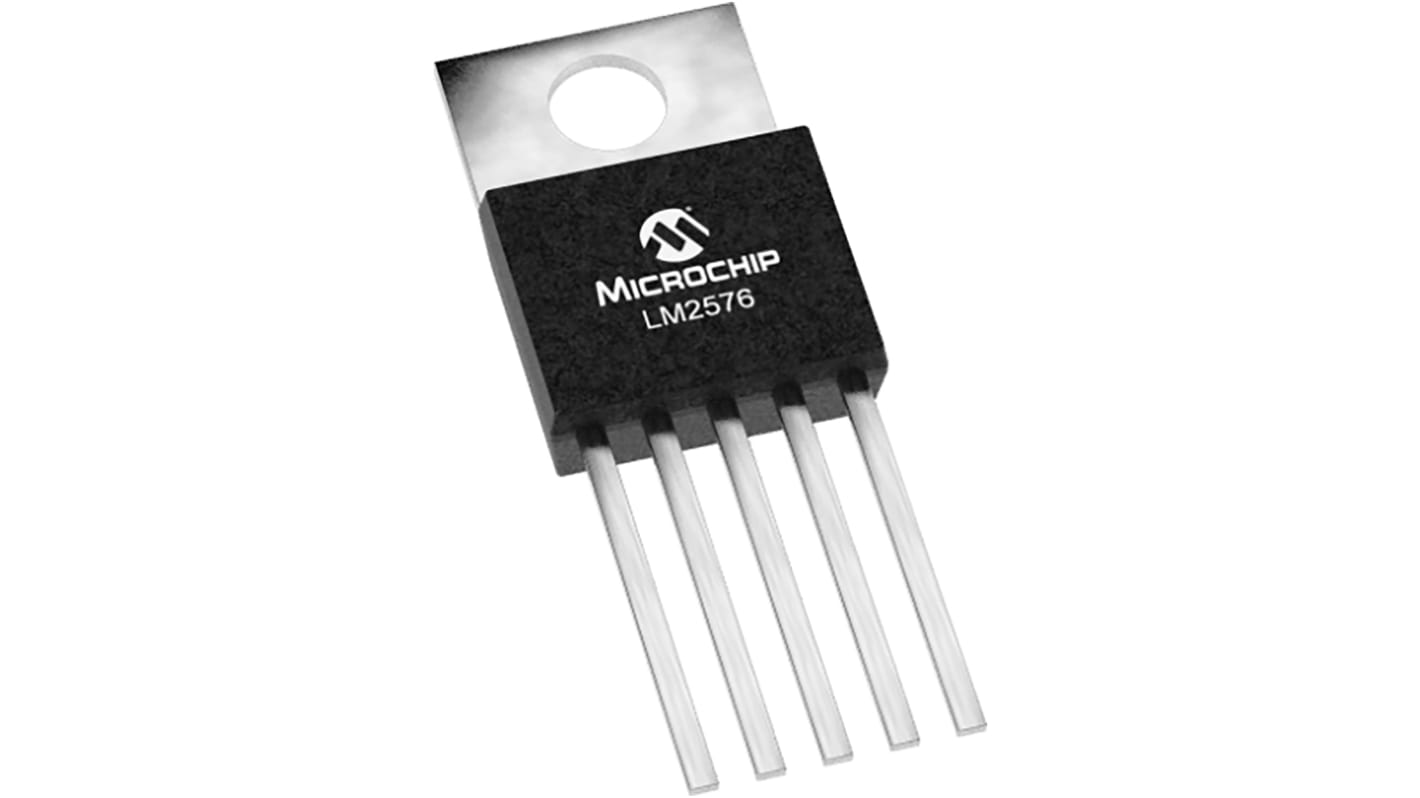

Microchip, LM2576WT Adjustable Switching Regulator, 1-Channel 3A Adjustable 5-Pin, TO-220
- RS Stock No.:
- 177-1904
- Mfr. Part No.:
- LM2576WT
- Brand:
- Microchip
Subtotal (1 pack of 5 units)*
£7.15
(exc. VAT)
£8.60
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 5 left, ready to ship
- Final 15 unit(s) shipping from 09 October 2025
Units | Per unit | Per Pack* |
---|---|---|
5 + | £1.43 | £7.15 |
*price indicative
- RS Stock No.:
- 177-1904
- Mfr. Part No.:
- LM2576WT
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Maximum Output Current | 3A | |
Maximum Output Voltage | 37 V | |
Minimum Output Voltage | 1.23 V | |
Minimum Input Voltage | 4 V | |
Maximum Input Voltage | 40 V | |
Output Type | Adjustable | |
Mounting Type | Through Hole | |
Number of Outputs | 1 | |
Pin Count | 5 | |
Maximum Switching Frequency | 52 kHz | |
Package Type | TO-220 | |
Switching Regulator | Yes | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +85 °C | |
Width | 4.5mm | |
Length | 10.16mm | |
Height | 14.68mm | |
Dimensions | 10.16 x 4.5 x 14.68mm | |
Select all | ||
---|---|---|
Brand Microchip | ||
Maximum Output Current 3A | ||
Maximum Output Voltage 37 V | ||
Minimum Output Voltage 1.23 V | ||
Minimum Input Voltage 4 V | ||
Maximum Input Voltage 40 V | ||
Output Type Adjustable | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Pin Count 5 | ||
Maximum Switching Frequency 52 kHz | ||
Package Type TO-220 | ||
Switching Regulator Yes | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Width 4.5mm | ||
Length 10.16mm | ||
Height 14.68mm | ||
Dimensions 10.16 x 4.5 x 14.68mm | ||
The LM2576 series of monolithic integrated circuits provide all the active functions for a step-down (buck) switching regulator. Fixed versions are available with a 3.3V, 5V, or 12V fixed output. Adjustable versions have an output voltage range from 1.23V to 37V. Both versions are capable of driving a 3A load with excellent line and load regulation.
Additional Features:
3.3V, 5V, 12V, and adjustable output versions
Voltage over specified line and load conditions:
Fixed version: ±3% max. output voltage
Adjustable version: ±2% max. feedback voltage
Guaranteed 3A output current
Wide input voltage range: 4V to 40V
Wide output voltage range: 1.23V to 37V
Requires only 4 external components
52kHz fixed frequency internal oscillator
Low power standby mode IQ typically < 200μA
80% efficiency (adjustable version typically > 80%)
Uses readily available standard inductors
Thermal shutdown and current limit protection
100% electrical thermal limit burn-in
3.3V, 5V, 12V, and adjustable output versions
Voltage over specified line and load conditions:
Fixed version: ±3% max. output voltage
Adjustable version: ±2% max. feedback voltage
Guaranteed 3A output current
Wide input voltage range: 4V to 40V
Wide output voltage range: 1.23V to 37V
Requires only 4 external components
52kHz fixed frequency internal oscillator
Low power standby mode IQ typically < 200μA
80% efficiency (adjustable version typically > 80%)
Uses readily available standard inductors
Thermal shutdown and current limit protection
100% electrical thermal limit burn-in
