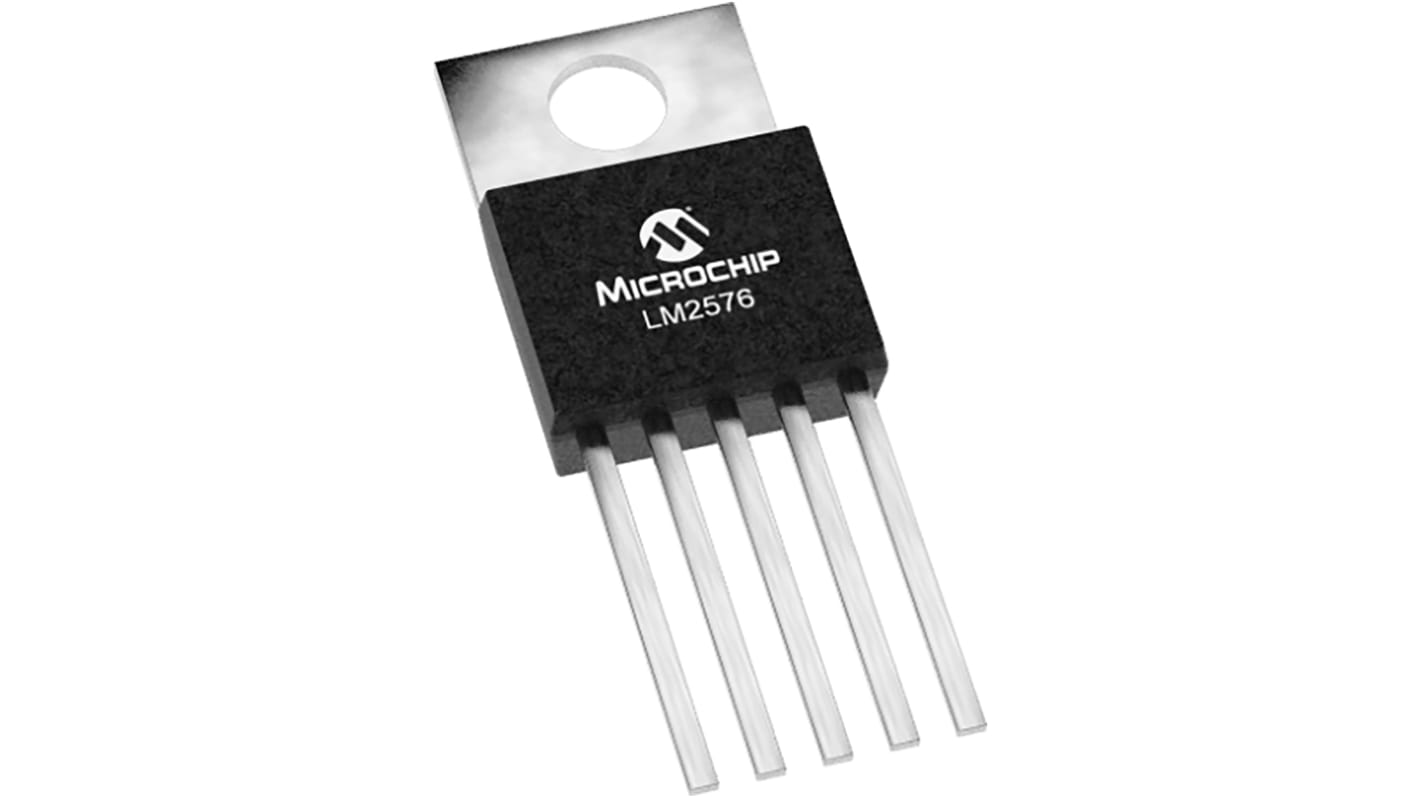

Microchip, LM2576WT Adjustable Switching Regulator, 1-Channel 3A Adjustable 5-Pin, TO-220
- RS Stock No.:
- 177-1611
- Mfr. Part No.:
- LM2576WT
- Brand:
- Microchip
150 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 50)
£1.17
(exc. VAT)
£1.40
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 - 50 | £1.17 | £58.50 |
| 100 + | £1.068 | £53.40 |
| *price indicative | ||
- RS Stock No.:
- 177-1611
- Mfr. Part No.:
- LM2576WT
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
The LM2576 series of monolithic integrated circuits provide all the active functions for a step-down (buck) switching regulator. Fixed versions are available with a 3.3V, 5V, or 12V fixed output. Adjustable versions have an output voltage range from 1.23V to 37V. Both versions are capable of driving a 3A load with excellent line and load regulation.
Additional Features:
3.3V, 5V, 12V, and adjustable output versions
Voltage over specified line and load conditions:
Fixed version: ±3% max. output voltage
Adjustable version: ±2% max. feedback voltage
Guaranteed 3A output current
Wide input voltage range: 4V to 40V
Wide output voltage range: 1.23V to 37V
Requires only 4 external components
52kHz fixed frequency internal oscillator
Low power standby mode IQ typically < 200μA
80% efficiency (adjustable version typically > 80%)
Uses readily available standard inductors
Thermal shutdown and current limit protection
100% electrical thermal limit burn-in
3.3V, 5V, 12V, and adjustable output versions
Voltage over specified line and load conditions:
Fixed version: ±3% max. output voltage
Adjustable version: ±2% max. feedback voltage
Guaranteed 3A output current
Wide input voltage range: 4V to 40V
Wide output voltage range: 1.23V to 37V
Requires only 4 external components
52kHz fixed frequency internal oscillator
Low power standby mode IQ typically < 200μA
80% efficiency (adjustable version typically > 80%)
Uses readily available standard inductors
Thermal shutdown and current limit protection
100% electrical thermal limit burn-in
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 37 V |
| Minimum Output Voltage | 1.23 V |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Maximum Switching Frequency | 52 kHz |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Length | 10.16mm |
| Minimum Operating Temperature | -40 °C |
| Height | 14.68mm |
| Dimensions | 10.16 x 4.5 x 14.68mm |
| Maximum Operating Temperature | +85 °C |
| Width | 4.5mm |
