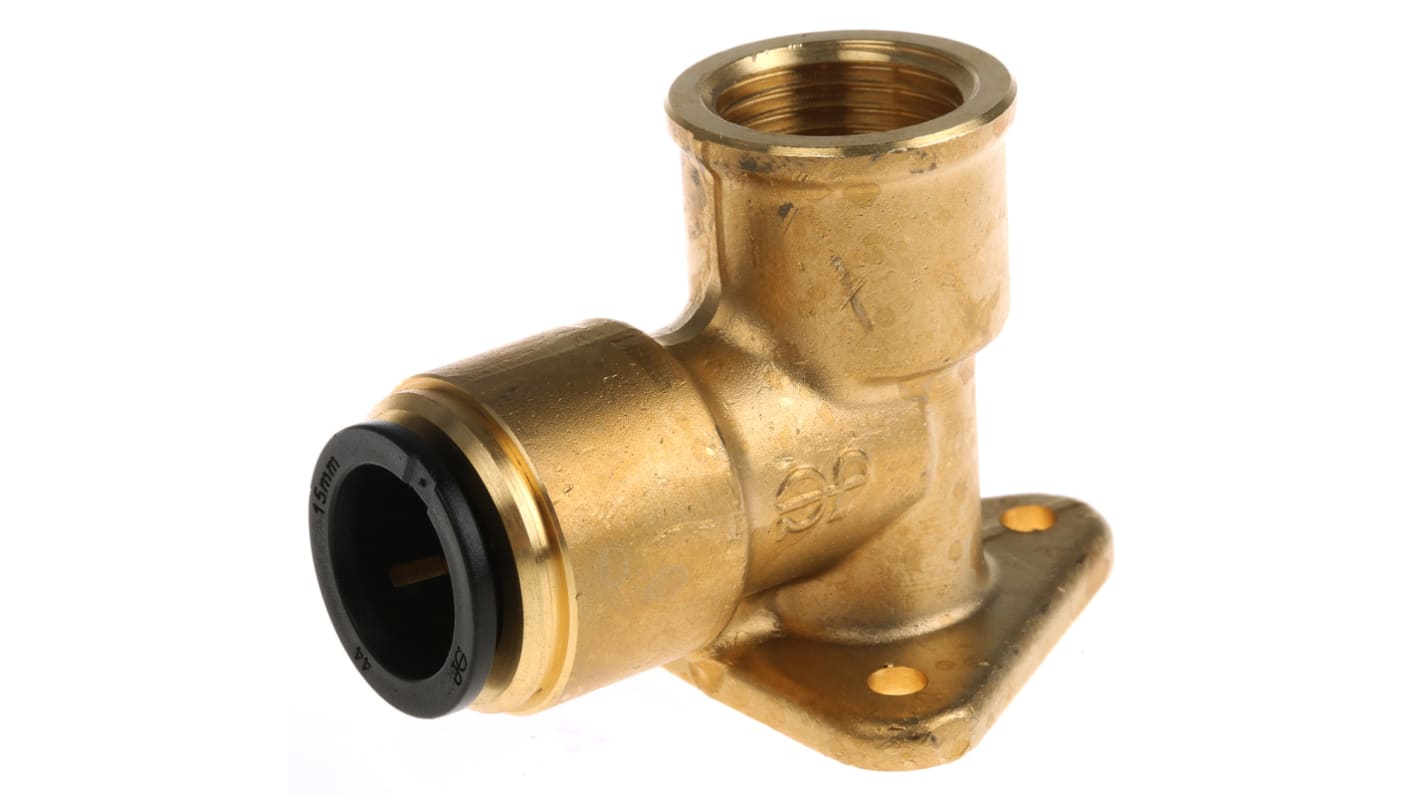

JG Speedfit Brass Pipe Fitting, 90° Push Fit Wall Plate Elbow Adapter, Female 1/2in to Female 15mm
- RS Stock No.:
- 340-6748
- Mfr. Part No.:
- PM15WB
- Brand:
- JG Speedfit
Bulk discount available
Subtotal (1 unit)*
£18.94
(exc. VAT)
£22.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £18.94 |
5 - 9 | £18.36 |
10 + | £17.74 |
*price indicative
- RS Stock No.:
- 340-6748
- Mfr. Part No.:
- PM15WB
- Brand:
- JG Speedfit
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | JG Speedfit | |
Pipe Fitting Connection Type | Push Fit | |
Fitting Direction | 90° | |
Fitting Type | Wall Plate Elbow Adapter | |
Thread Size 1 | 1/2in | |
Connection Gender 1 | Female | |
Connection Gender 2 | Female | |
Material | Brass | |
Compatible Pipe Size | 15mm | |
Select all | ||
---|---|---|
Brand JG Speedfit | ||
Pipe Fitting Connection Type Push Fit | ||
Fitting Direction 90° | ||
Fitting Type Wall Plate Elbow Adapter | ||
Thread Size 1 1/2in | ||
Connection Gender 1 Female | ||
Connection Gender 2 Female | ||
Material Brass | ||
Compatible Pipe Size 15mm | ||
RoHS Status: Exempt
Wingback Elbow
Brass Fittings,Working Pressure: 10 bar at 23°C, 7 bar at 70°C Temperature Range –20 to +70°C
Air Ring Main System
The John Guest system of push-in fittings and pipe, designed for use with air, provide the ideal connection from compressor receiver to air line service components through to complete ring main and take off points.
No need to prepare threaded pipe or apply solvent
Easy and quick to install, simple push-in connections
Safe, secure and leak-proof, ready for immediate use
Unique collet locking system holds tube firmly without deformation or flow restriction
Easy to disconnect and reconfigure the system
Instruction leaflet included
Easy and quick to install, simple push-in connections
Safe, secure and leak-proof, ready for immediate use
Unique collet locking system holds tube firmly without deformation or flow restriction
Easy to disconnect and reconfigure the system
Instruction leaflet included
Temperature Range 0 to + 70°C
Working Pressure @ +23°C = 10 bar (145 psi)
Working pressure @ +70°C = 7 bar (101 psi)
Pipe tolerances: +0.05 to -0.10mm OD
Material, pipe: rigid (unplasticised) Nylon 12
Material, fittings: bodies engineering plastic (black acetal copolymer) or brass
'O' Rings: Nitrile rubber
Collets: acetal polymer with stainless steel teeth
Working Pressure @ +23°C = 10 bar (145 psi)
Working pressure @ +70°C = 7 bar (101 psi)
Pipe tolerances: +0.05 to -0.10mm OD
Material, pipe: rigid (unplasticised) Nylon 12
Material, fittings: bodies engineering plastic (black acetal copolymer) or brass
'O' Rings: Nitrile rubber
Collets: acetal polymer with stainless steel teeth
