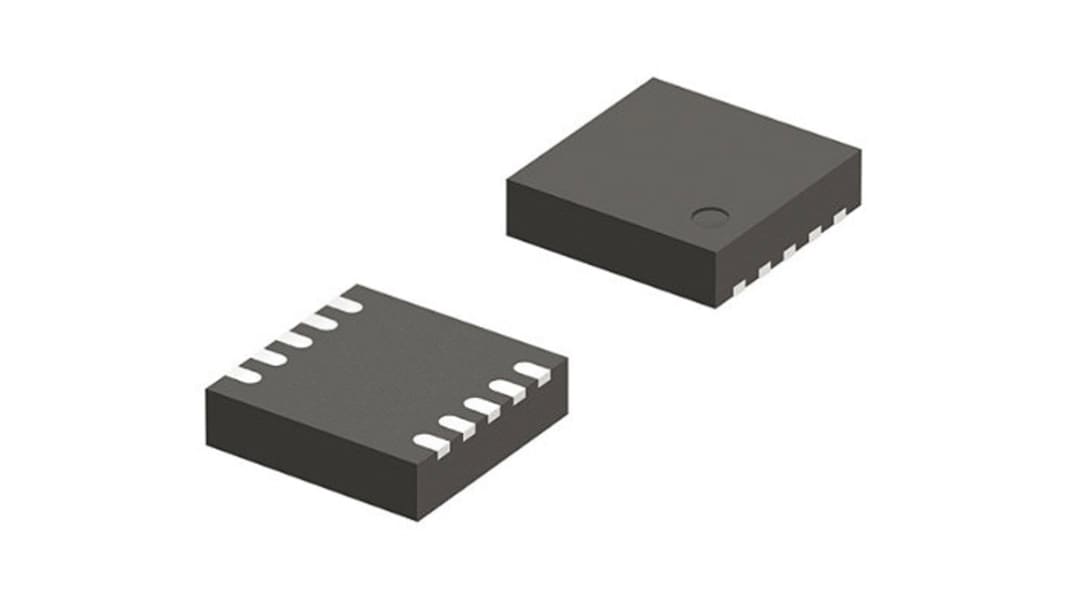

onsemi NCP1422MNR2G, Boost Converter, Boost Converter 800mA Adjustable, 1.2 MHz 10-Pin, DFN

View all Boost Converters

Subtotal (1 reel of 3000 units)*

£1,686.00

(exc. VAT)

£2,022.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 3,000 unit(s), ready to ship
Units
Per unit
Per Reel*
3000 +£0.562£1,686.00

*price indicative

RS Stock No.:
161-2614
Mfr. Part No.:
NCP1422MNR2G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Regulator Function

Boost Converter

Maximum Output Current

800mA

Maximum Input Voltage

5 V

Number of Outputs

1

Line Regulation

1 mV/V

Load Regulation

1 mV/V

Mounting Type

Surface Mount

Package Type

DFN

Pin Count

10

Output Type

Adjustable

Maximum Switching Frequency

1.2 MHz

Switching Regulator

Yes

Efficiency

94%

Dimensions

3 x 3 x 1.95mm

Height

1.95mm

Maximum Output Voltage

5 V

Length

3mm

Maximum Operating Temperature

85 °C

Minimum Operating Temperature

-40 °C

Width

3mm

Minimum Input Voltage

1 V

Minimum Output Voltage

1.5 V

COO (Country of Origin):
KR
NCP1422 is a monolithic micropower high frequency step-up switching converter IC specifically designed for battery-operated hand-held electronic products up to 800mA loading. It integrates Sync-Rect to improve efficiency and to eliminate the external Schottky Diode. High switching frequency (up to 1.2 MHz) allows for a low profile, small-sized inductor and output capacitor to be used. When the device is disabled, the internal conduction path from LX or BAT to OUT is fully blocked and the OUT pin is isolated from the battery.

Output Current up to 800 mA
High Switching Frequency, up to 1.2MHz
Anti-Ringing Ring-Killer for Discontinuous Conduction Mode
Low Quiescent Current of 8.5 μA
1.0V Startup at No Load Guaranteed
Output Voltage from 1.5V to 5V Adjustable
1.5A Cycle by Cycle Current Limit
On Chip Thermal Shutdown with Hysteresis
Housed in Space-Saving and Low Profile DFN10 package
