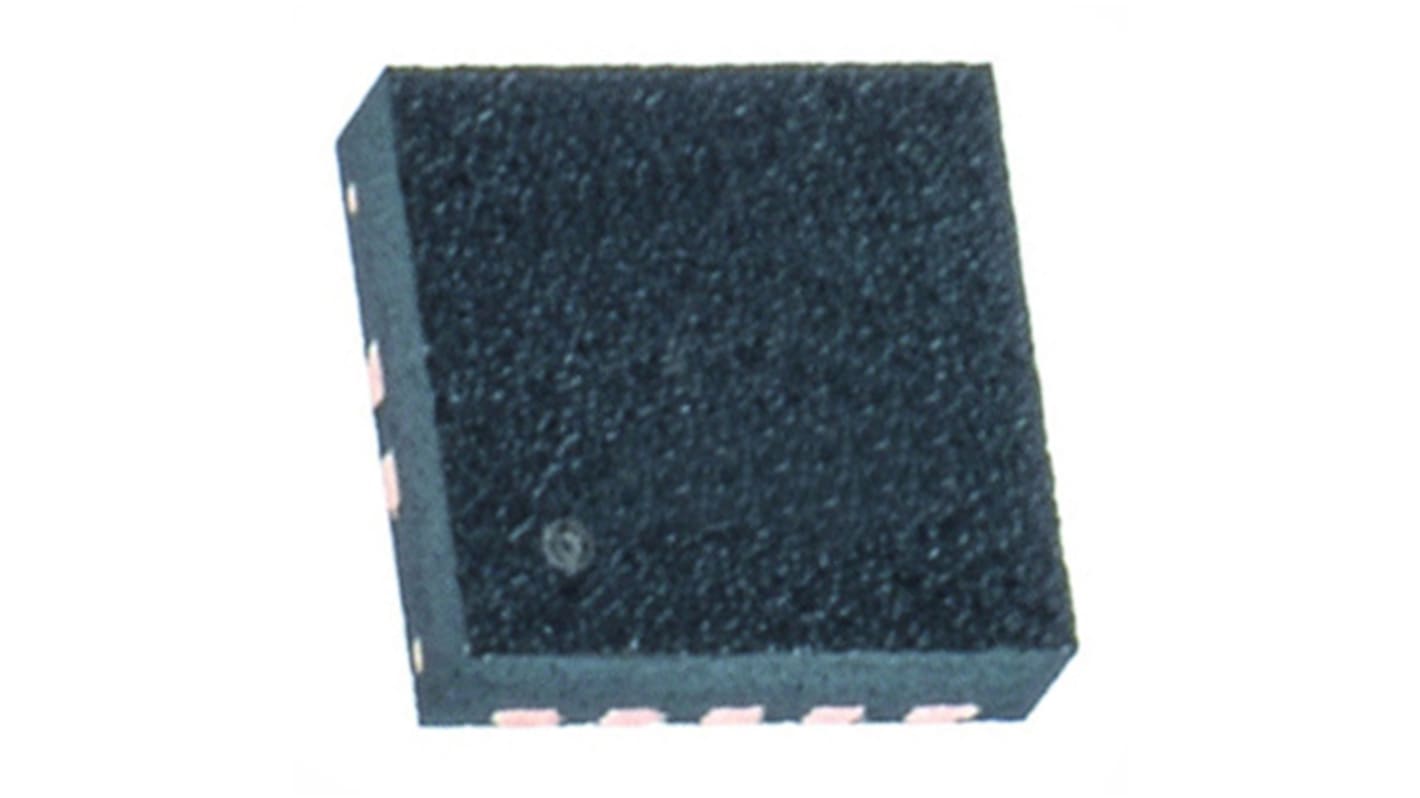

Texas Instruments TPS61029DRCT, Boost Converter, Step Up 1.5A Adjustable, 720 kHz 10-Pin, SON
- RS Stock No.:
- 516-710
- Mfr. Part No.:
- TPS61029DRCT
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 516-710
- Mfr. Part No.:
- TPS61029DRCT
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Regulator Function | Step Up | |
| Maximum Output Current | 1.5A | |
| Number of Outputs | 1 | |
| Maximum Input Voltage | 5.5 V | |
| Line Regulation | 0.6 % | |
| Load Regulation | 0.6 % | |
| Mounting Type | Surface Mount | |
| Package Type | SON | |
| Pin Count | 10 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 720 kHz | |
| Switching Regulator | Yes | |
| Efficiency | 96% | |
| Dimensions | 3 x 3 x 0.9mm | |
| Maximum Output Voltage | 5.5 V | |
| Height | 0.9mm | |
| Length | 3mm | |
| Minimum Input Voltage | 0.9 V | |
| Maximum Operating Temperature | +85 °C | |
| Width | 3mm | |
| Minimum Output Voltage | 1.8 V | |
| Minimum Operating Temperature | -40 °C | |
