LM Technologies LM910-0630 Bluetooth Chip 2.0, 2.1, 3.0, 4.0
- RS Stock No.:
- 124-5564
- Mfr. Part No.:
- LM910-0630
- Brand:
- LM Technologies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-5564
- Mfr. Part No.:
- LM910-0630
- Brand:
- LM Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LM Technologies | |
| Bluetooth Class | Class 1 | |
| Bluetooth Version | 2.0, 2.1, 3.0, 4.0 | |
| Supported Bus Interfaces | USB | |
| Supported I/O Interfaces | Serial | |
| Dimensions | 18 x 9.7 x 2.5mm | |
| Height | 2.5mm | |
| Length | 18mm | |
| Maximum Operating Temperature | +75 °C | |
| Minimum Operating Temperature | -20 °C | |
| Width | 9.7mm | |
Select all | ||
|---|---|---|
Brand LM Technologies | ||
Bluetooth Class Class 1 | ||
Bluetooth Version 2.0, 2.1, 3.0, 4.0 | ||
Supported Bus Interfaces USB | ||
Supported I/O Interfaces Serial | ||
Dimensions 18 x 9.7 x 2.5mm | ||
Height 2.5mm | ||
Length 18mm | ||
Maximum Operating Temperature +75 °C | ||
Minimum Operating Temperature -20 °C | ||
Width 9.7mm | ||
- COO (Country of Origin):
- CN

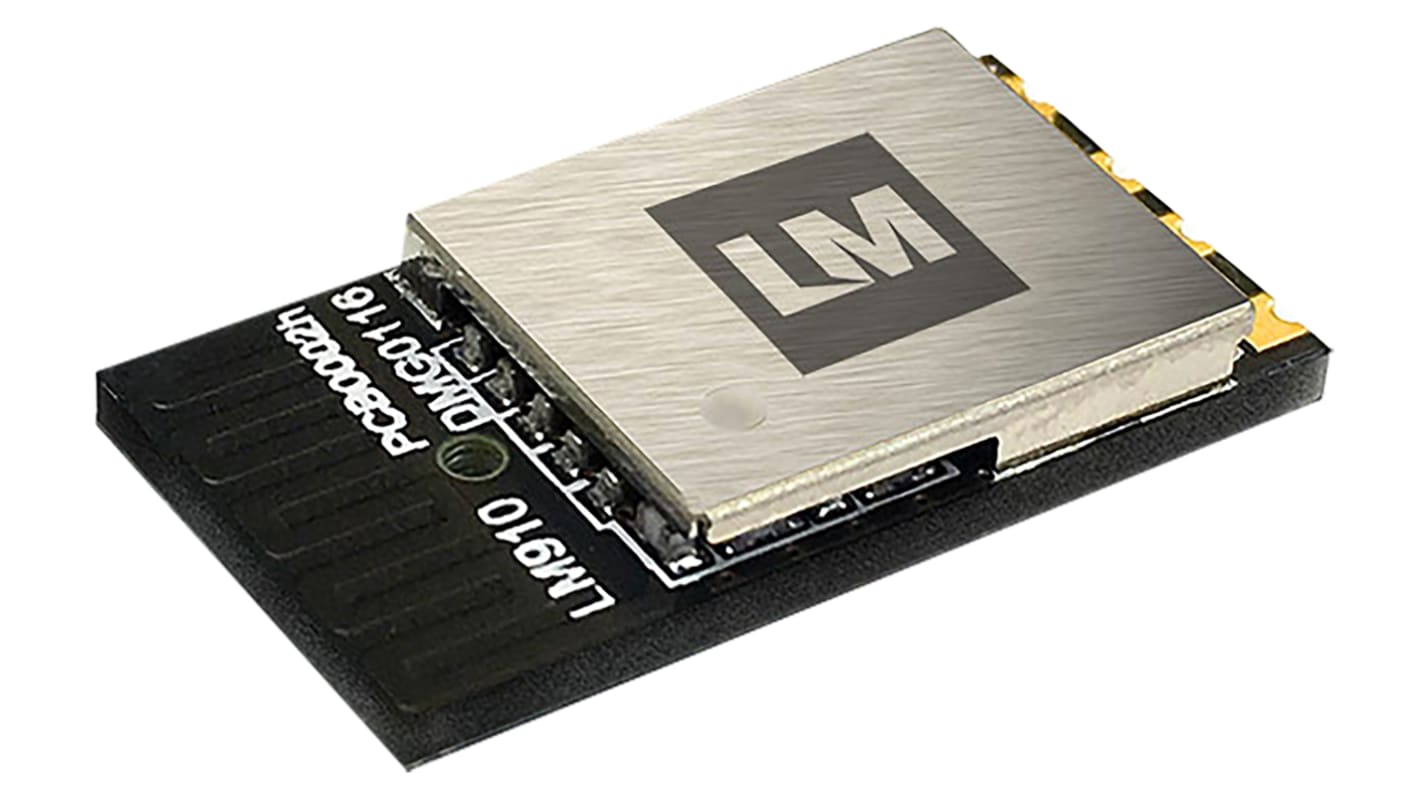

LM910 Bluetooth Smart Ready Dual Mode Module
The LM910 from LM Technologies is a Bluetooth Smart Ready module. It features a Host Controller Interface (HCI) via USB interface.
Simply plug in the LM910 module into a host computer or MCU and you are ready to go. The device is compatible with various platforms (see datasheet for full list), enabling you to connect your embedded system to other Bluetooth enabled devices wirelessly.
The LM910 opens up a wide range of opportunities for applications, including; iBeacon and data logger, EPOS, M2M, automotive, voice and data.
Simply plug in the LM910 module into a host computer or MCU and you are ready to go. The device is compatible with various platforms (see datasheet for full list), enabling you to connect your embedded system to other Bluetooth enabled devices wirelessly.
The LM910 opens up a wide range of opportunities for applications, including; iBeacon and data logger, EPOS, M2M, automotive, voice and data.
Features and Benefits
Bluetooth Smart Ready
Low current consumption
PCB antenna built-in
Host Controller Interface (HCI)
iBeacon compatible
Bluetooth Smart Ready
Low current consumption
PCB antenna built-in
Host Controller Interface (HCI)
iBeacon compatible
Bluetooth - LM Technologies
