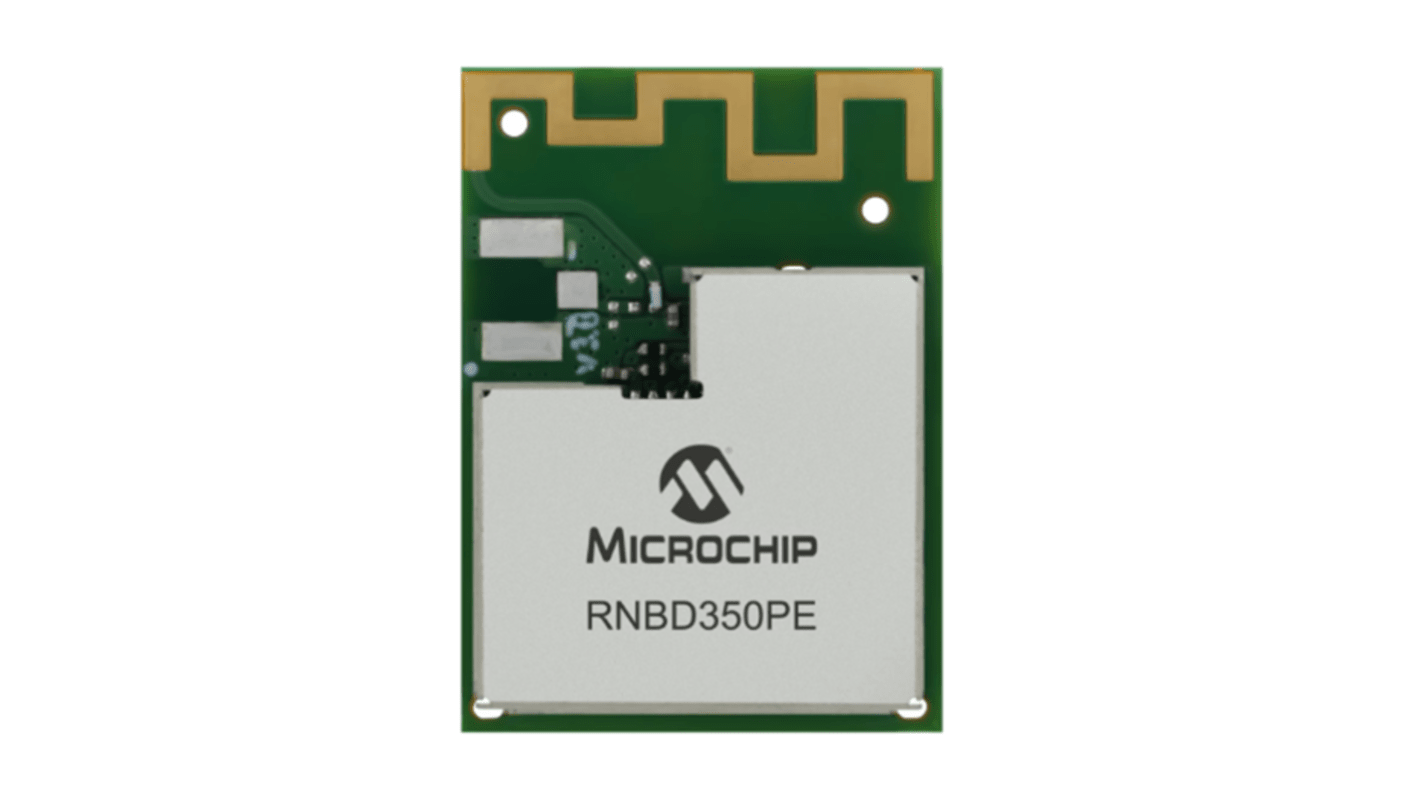

Microchip RNBD350PE-I100 Bluetooth Modules 5.2
- RS Stock No.:
- 644-333
- Mfr. Part No.:
- RNBD350PE-I100
- Brand:
- Microchip
Bulk discount available
Subtotal (1 unit)*
£4.99
(exc. VAT)
£5.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 110 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.99 |
| 10 - 49 | £4.85 |
| 50 - 99 | £4.74 |
| 100 + | £4.61 |
*price indicative
- RS Stock No.:
- 644-333
- Mfr. Part No.:
- RNBD350PE-I100
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Bluetooth Modules | |
| Bluetooth Version | 5.2 | |
| Maximum Output Power | 11dBm | |
| Receiver Sensitivity | -95dBm | |
| Frequency | 2.48GHz | |
| Interface Type | UART, GPIO | |
| Minimum Supply Voltage | 1.9V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | NCC, UKCA, SRRC, KCC, FCC, ISED, MIC, CE | |
| Series | RNBD350 | |
| Length | 18.7mm | |
| Height | 2.8mm | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Bluetooth Modules | ||
Bluetooth Version 5.2 | ||
Maximum Output Power 11dBm | ||
Receiver Sensitivity -95dBm | ||
Frequency 2.48GHz | ||
Interface Type UART, GPIO | ||
Minimum Supply Voltage 1.9V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals NCC, UKCA, SRRC, KCC, FCC, ISED, MIC, CE | ||
Series RNBD350 | ||
Length 18.7mm | ||
Height 2.8mm | ||
- COO (Country of Origin):
- TH
The Microchip Bluetooth Low Energy System-on-Chip (SoC) that provides a complete solution to implement Bluetooth 5.2 Low Energy connectivity. The module is interfaced with a host MCU or MPU via a Two-Wire or Four-Wire (Flow Control) UART interface with simple ASCII command set for easy integration into most of the applications. In addition, it supports an HCI mode for seamless integration with Linux-based host processors.
Extended Advertising
Data Length Extensions and Secure Connections
Beacon Support
