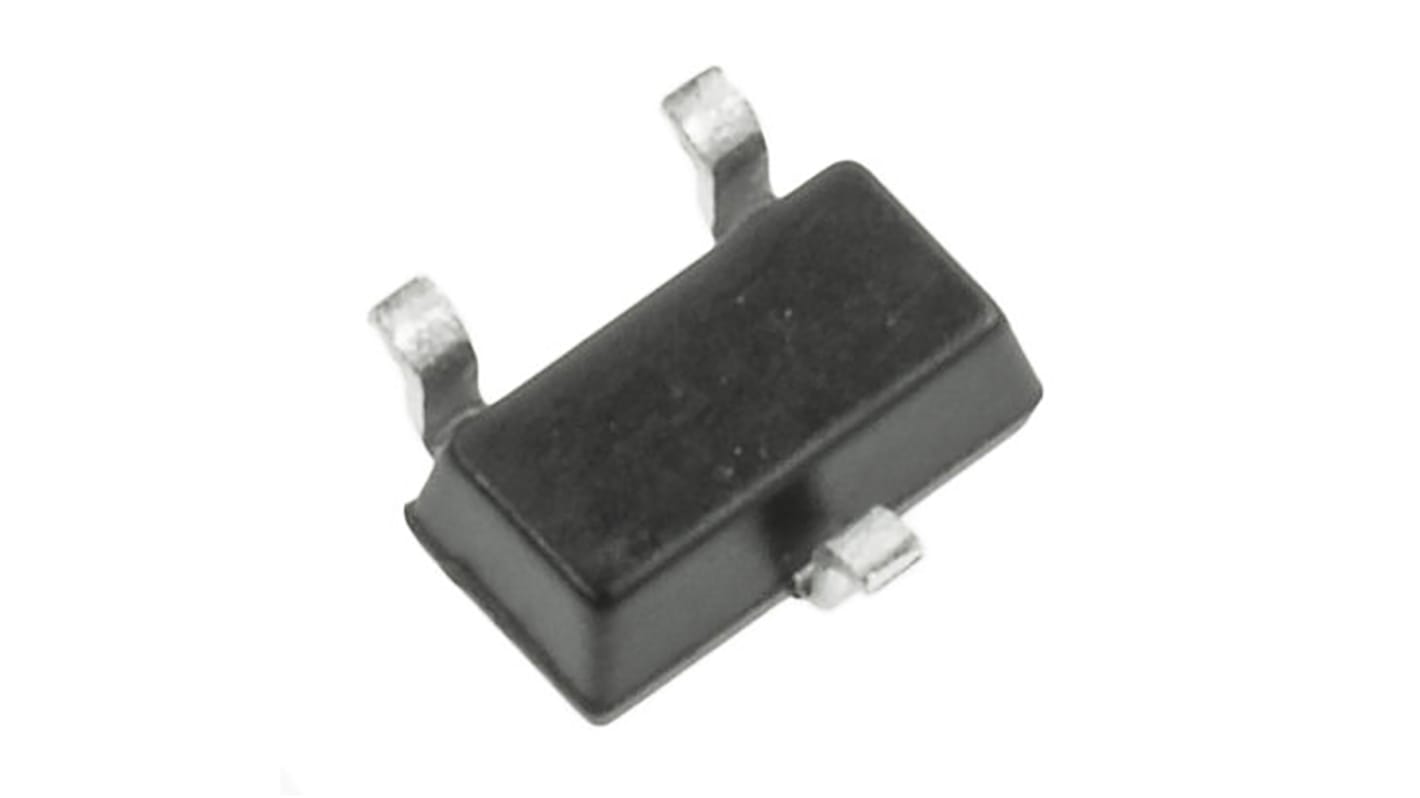

Infineon BC847CWH6778XTSA1 NPN Transistor, 100 mA, 45 V, 3-Pin SOT-323
- RS Stock No.:
- 857-8163
- Mfr. Part No.:
- BC847CWH6778XTSA1
- Brand:
- Infineon
999999999 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.029
(exc. VAT)
£0.035
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 27000 | £0.029 | £87.00 |
| 30000 - 72000 | £0.02 | £60.00 |
| 75000 + | £0.019 | £57.00 |
*price indicative
- RS Stock No.:
- 857-8163
- Mfr. Part No.:
- BC847CWH6778XTSA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
Small Signal NPN Transistors, Infineon
Bipolar Transistors, Infineon
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 45 V |
| Package Type | SOT-323 (SC-70) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 330 mW |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 50 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 250 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 2 x 1.25 x 0.8mm |
| Maximum Operating Temperature | +150 °C |
