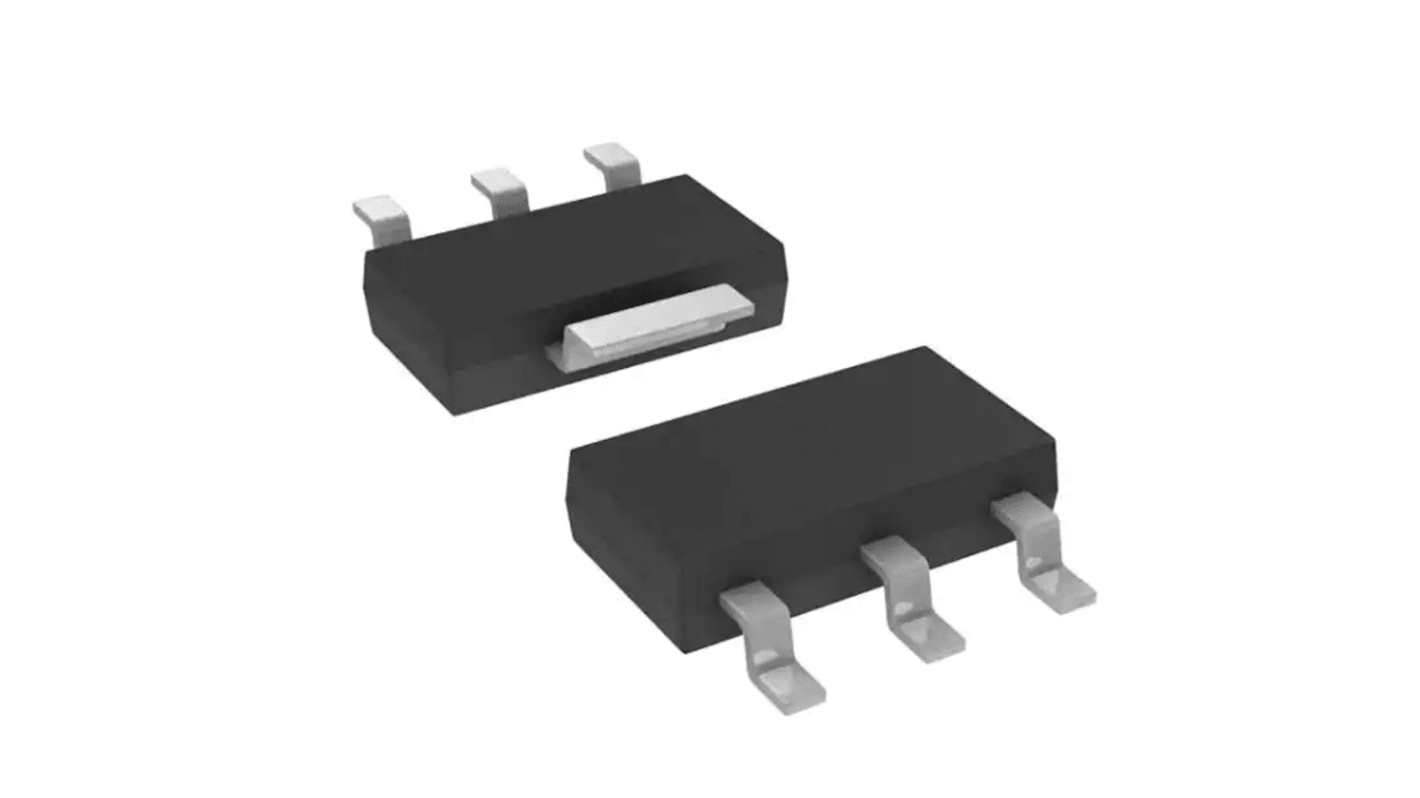

STMicroelectronics 2STN1360 NPN Bipolar Transistor, 3 A, 60 V, 3-Pin SOT-223

View all Bipolar Transistors
Unavailable
RS will no longer stock this product.
RS Stock No.:
178-5050
Mfr. Part No.:
2STN1360
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Transistor Type

NPN

Maximum DC Collector Current

3 A

Maximum Collector Emitter Voltage

60 V

Package Type

SOT-223

Mounting Type

Surface Mount

Maximum Power Dissipation

1.6 W

Transistor Configuration

Single

Maximum Collector Base Voltage

80 V

Maximum Emitter Base Voltage

6 V

Maximum Operating Frequency

130 MHz

Pin Count

3

Number of Elements per Chip

1

Maximum Operating Temperature

+150 °C

Dimensions

1.8 x 6.5 x 3.5mm

The STMicroelectronics low voltage fast-switching NPN power transistor new low voltage planar technology with double metal process. The result is a transistor which boasts exceptionally high gain performance coupled with very low saturation voltage. The complementary PNP types are the 2STD2360T4, the 2STF2360 and the 2STN2360.

Very low collector-emitter saturation voltage
High current gain characteristic
Fast-switching speed
