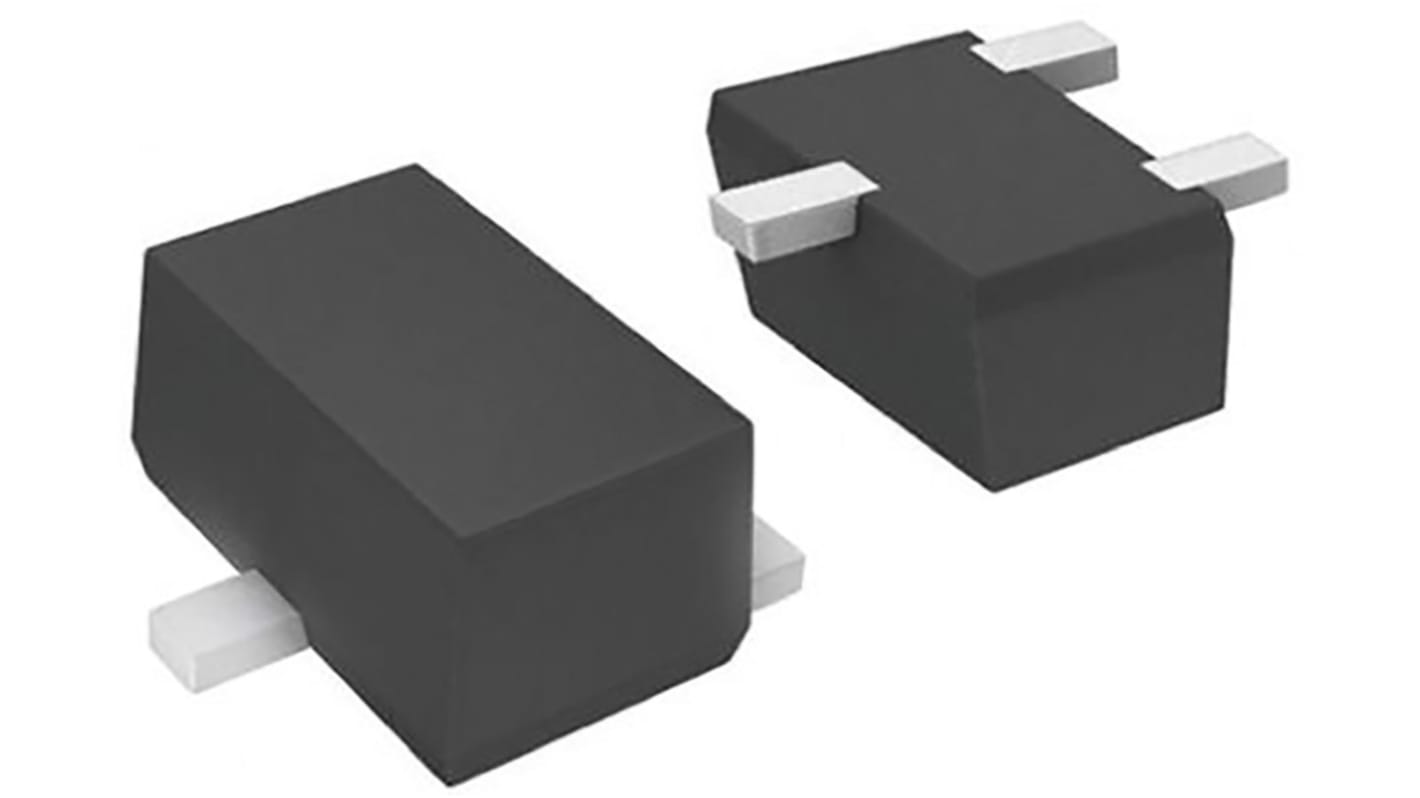

ROHM DTC123JMT2L NPN Digital Transistor, 100 mA, 50 V, 3-Pin SC-105AA
- RS Stock No.:
- 124-6553P
- Mfr. Part No.:
- DTC123JMT2L
- Brand:
- ROHM
Bulk discount available
Subtotal 750 units (supplied on a reel)*
£36.75
(exc. VAT)
£44.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 750 - 1350 | £0.049 |
| 1500 - 3600 | £0.041 |
| 3750 - 7350 | £0.04 |
| 7500 + | £0.039 |
*price indicative
- RS Stock No.:
- 124-6553P
- Mfr. Part No.:
- DTC123JMT2L
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Transistor Type | NPN | |
| Maximum DC Collector Current | 100 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Package Type | SC-105AA | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 150 mW | |
| Minimum DC Current Gain | 80 | |
| Transistor Configuration | Single | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Base-Emitter Resistor | 47kΩ | |
| Dimensions | 1.3 x 0.9 x 0.45mm | |
| Typical Input Resistor | 2.2 kΩ | |
| Maximum Operating Temperature | +150 °C | |
| Typical Resistor Ratio | 21 | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Transistor Type NPN | ||
Maximum DC Collector Current 100 mA | ||
Maximum Collector Emitter Voltage 50 V | ||
Package Type SC-105AA | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 150 mW | ||
Minimum DC Current Gain 80 | ||
Transistor Configuration Single | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Base-Emitter Resistor 47kΩ | ||
Dimensions 1.3 x 0.9 x 0.45mm | ||
Typical Input Resistor 2.2 kΩ | ||
Maximum Operating Temperature +150 °C | ||
Typical Resistor Ratio 21 | ||
Dual Resistor Digital NPN Transistors, ROHM
Digital Transistors, ROHM Semiconductor
Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
