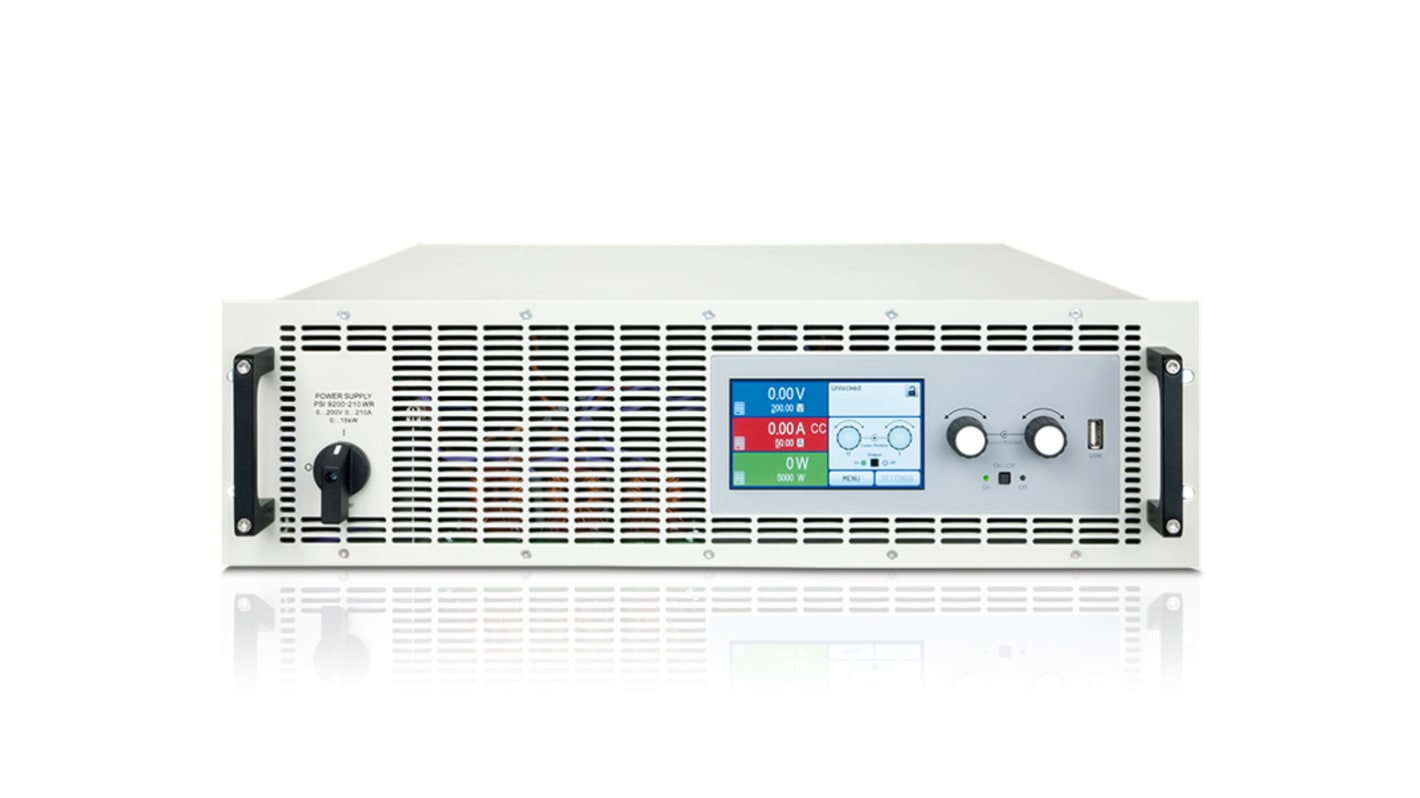

EA Elektro-Automatik EA-PSI 9000 3U Series Digital Bench Power Supply, 0 → 500V, 30A, 1-Output, 5kW

RS Stock No.:: 806-7455
Mfr. Part No.:: EA-PSI 9500-30 3U
Brand:: EA Elektro-Automatik

EA Elektro-Automatik EA-PSI 9000 3U Series Digital Bench Power Supply, 0 → 500V, 30A, 1-Output, 5kW

Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

EA Elektro-Automatik EA-PSI 10000 Series Bench Power Supply, 0 → 500V, 30A, 1-Output, 5kW

RS Stock No.: 264-7222

Each

£7,174.50

(exc. VAT)

£8,609.40

(inc. VAT)

Calibration Options:

EA Elektro-Automatik EA-PSI 9000 3U Series Digital Bench Power Supply, 30A, 5kW - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 806-9010

Each

£5,186.17

(exc. VAT)

£6,223.40

(inc. VAT)

EA Elektro-Automatik EA-PSI 9000 3U Series Digital Bench Power Supply, 30A, 5kW - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 806-9016

Each

£5,164.17

(exc. VAT)

£6,197.00

(inc. VAT)

RS Stock No.:: 806-7455
Mfr. Part No.:: EA-PSI 9500-30 3U
Brand:: EA Elektro-Automatik

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EA Elektro-Automatik
	Series	EA-PSI 9000 3U
	Model Number	EA-PSI 9500-30 3U
	Number of Outputs	1
	Rack Units	3 U
	Supply Voltage	340 → 460V ac
	Output Voltage	0 → 500V
	Output Current	30A
	Power Rating	5kW
	Number of Displays	1
	Bench Power Supply Type	Programmable DC Power Supply
	Type	Digital
	Digital/Analogue	Digital
	Input Connector	IEC 320
	Output Connector	Screw Terminal
	Maximum Temperature	+50°C
	Minimum Temperature	0°C

	Select all
	Brand EA Elektro-Automatik
	Series EA-PSI 9000 3U
	Model Number EA-PSI 9500-30 3U
	Number of Outputs 1
	Rack Units 3 U
	Supply Voltage 340 → 460V ac
	Output Voltage 0 → 500V
	Output Current 30A
	Power Rating 5kW
	Number of Displays 1
	Bench Power Supply Type Programmable DC Power Supply
	Type Digital
	Digital/Analogue Digital
	Input Connector IEC 320
	Output Connector Screw Terminal
	Maximum Temperature +50°C
	Minimum Temperature 0°C

COO (Country of Origin):: DE

EA-PSI 9000 3U 3.3kW - 150kW (FPGA) Series

The EA-PSI 9000 3U is an adjustable and programmable 19" 3U power supply series with a high performance FPGA (Field Programmable Gate Array) based controller and 16-bit resolution. Features include an 'auto-ranging' output for a flexible usage at either high voltage or high current, as required, within the nominal power rating. The EA-PSI 9000 3U is equipped with a comfortable touch panel with multiple
functions such as a function generator with default wave forms, memory, up to 4-digit Display resolution and easy-to-operate intuitive task-menu structure. The series provides for a highly stable and low ripple output condition with fast dynamic response. For external automated control, it comes with on-board isolated 0-5V/0-10V analogue and USB interface. An intelligent plug’n play slot allows retrofitting a multiple choice of optionally available interface modules such as CANopen, Ethernet, Profibus and Modbus. The EA-PSI 9000 3U series is an excellent choice ofl 'high power & low emission' tool for most needs in demanding laboratory and industrial application environments, for R&D, automated testing and 19" cabinet system integration.

FPGA-based controller,16 bit resolution
For heavy-duty use in laboratory, industry, R&D and automated testing
Flexible auto-ranging output, constant U, I, P, R mode
Adjustable output impedance, e.g. PV array simulation, battery simulation
Intuitive touch panel, function generator, up to 4-digit display, profile memory
Isolated analogue interface (0-5/0-10V), USB interface
Plug’n play slot for optional interface cards (CANopen, Ethernet, Profibus, Profinet, Modbus, Devicenet, RS232 and others)
True master-slave bus with summary function, for parallel & series operation
Attractive and rugged 19” 3U rack format
Three-phase AC input receptacle, copper bar outlet with special HV isolated cover

Supplied with

user manual (English/German)

EA Elektro-Automatik Laboratory DC Power Supply

The EA Elektro-Automatik laboratory DC power supply has a power rating of 5kW. It is a microprocessor-controlled and USB-programmable single-channel power supply which provides a fully flexible 'auto-ranging' output. Enabling them to work with either a higher voltage or a higher current within the stipulated U/I/P rating. These power supplies are equipped with a graphic display with multiple functions, such as memory and up to 4 digit display resolution and provides for a highly stable and low ripple output condition with a fast dynamic response. The units are protected against overcurrent (OCP), DC over-voltage (OVP) and over-temperature (OTP). It has output voltage ranging between 0V to 500V and an output current rating ranging between 0A to 30A.
Inclusions:
User manual (English/German).

Features and Benefits

FPGA based controller, 16-bit resolution
Adjustable output impedance
Isolated analogue interface (0-5V/0-10V), USB interface
Plug’n play slot for optional interface cards (CANopen, Ethernet, Profibus, Profinet, Modbus, DeviceNet, RS232 and more)
True master-slave bus with summary function, for parallel & series operation
Chassis top and bottom closed
Flexible, power regulated output stage
high-efficiency up to 93%
Photovoltaic array simulation
SCPI command language supported
Share bus support of parallel connections
Temperature controlled fans for cooling
Operating temperature ranging between 0°C and 50°C
