Aim-TTi CPX Series Digital Bench Power Supply, 0 → 60V, 0 → 10A, 2-Output, 360W - UKAS Calibrated
- RS Stock No.:
- 803-6549
- Mfr. Part No.:
- CPX200D
- Brand:
- Aim-TTi
14 In stock for delivery within 3 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£959.00
(exc. VAT)
£1,150.80
(inc. VAT)
| Units | Per unit |
| 1 + | £959.00 |
- RS Stock No.:
- 803-6549
- Mfr. Part No.:
- CPX200D
- Brand:
- Aim-TTi
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Product Details

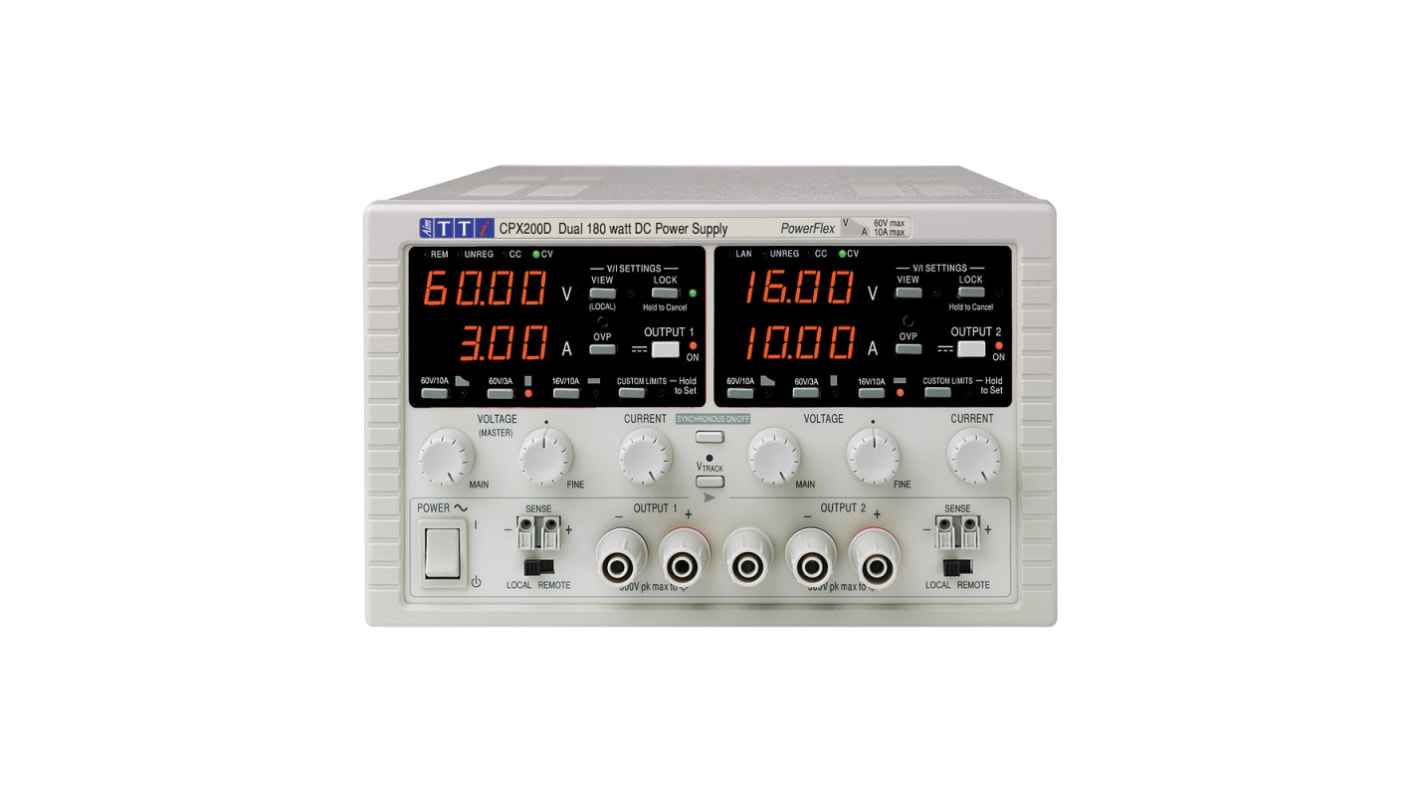

Aim-TTi CPX Series Power Supplies CPX200D & CPX200DP
A wide PowerFlex range extends maximum voltage to 60 volts, whilst the maximum current of 10 amps available up to 16 volts. S-Lock, Range Control, Voltage Tracking and Synchronous On/Off. For those requiring bus control, the CPX200DP includes a full set of digital interfaces.
Features and Benefits
- PowerFlex design gives variable voltage and current combinations within a maximum power range
- Up to 60V and up to 10A per output (180W maximum per output)
- Low output noise and good transient response
- True analogue controls with digital settings locking
- Independent outputs or isolated voltage tracking
- Outputs can be wired in series or parallel for 120V or 20A
- 4 digit fixed resolution meters; selectable remote sensing
- Compact 1/2 rack 3U case for bench use or rack mounting
Specifications
Attribute | Value |
|---|---|
| Series | CPX |
| Model Number | CPX200D |
| Number of Outputs | 2 |
| Calibrated | UKAS |
| Output Voltage | 0 → 60V |
| Supply Voltage | 110 → 240V ac |
| Output Current | 0 → 10A |
| Power Rating | 360W |
| Number of Displays | 4 |
| Type | Analogue |
| Bench Power Supply Type | Autoranging Power Supply |
| Digital/Analogue | Digital |
| Input Connector | IEC 320 |
| Output Connector | Binding Post Terminal |
| Minimum Temperature | +5°C |
| Maximum Temperature | +40°C |
