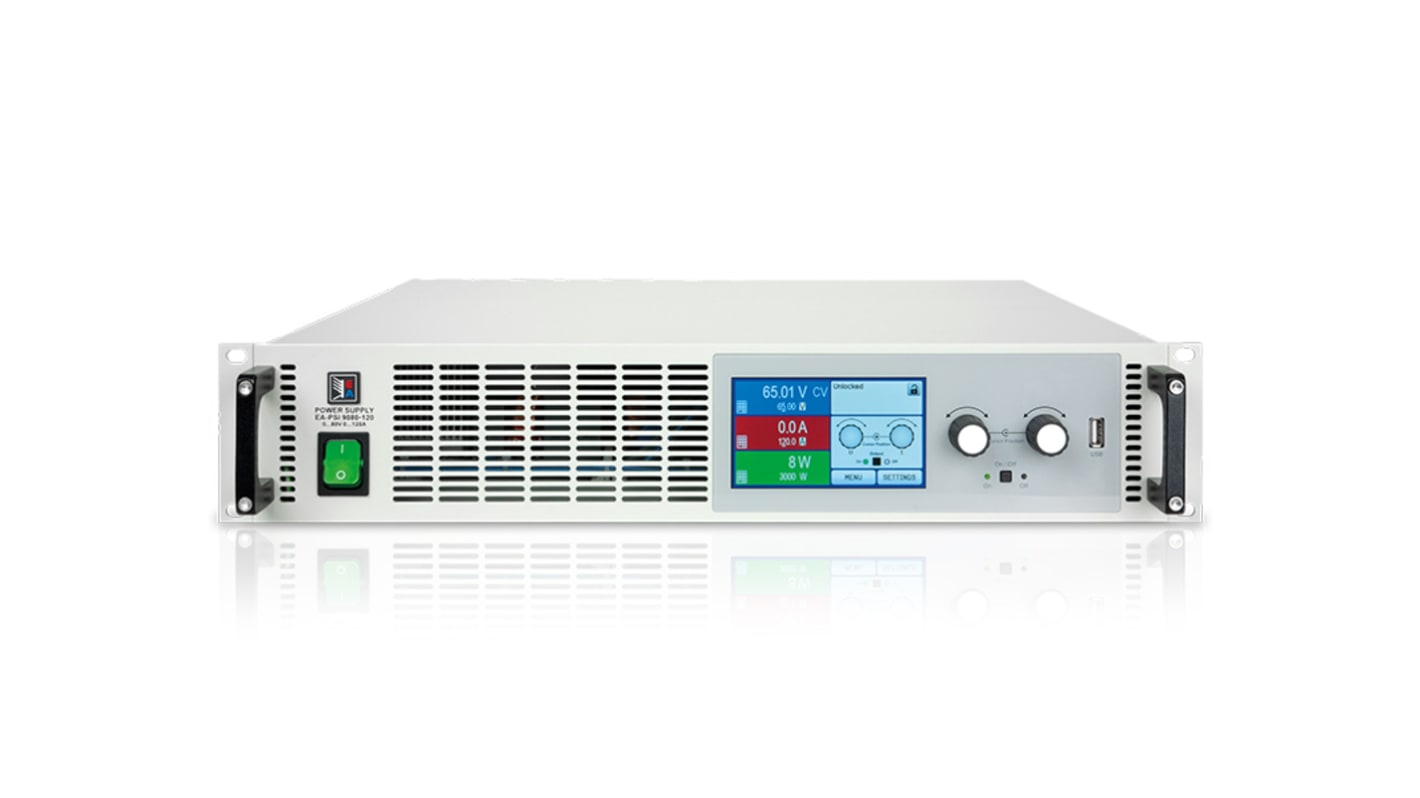

EA Elektro-Automatik Analogue, Digital Bench Power Supply 0 → 1000W, 1 Output 0 → 80V 0 → 40A With

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

EA-PSI 9000 2U 1000W - 3000W (FPGA) Series

The EA-PSI 9000 2U adjustable and programmable 19" 2U power supply series has a highly performing FPGA (Field Programmable Gate Array) controller and 16-bit resolution. The series features an 'auto-ranging' output for a flexible usage at either high voltage or high current, as required, within the nominal power rating. The EA-PSI 9000 2U is equipped with a comfortable touch panel with multiple functions such as a function generator, memory, up to 4-digit display resolution and easy-to-operate intuitive task-menu structure. It provides for a highly stable and low ripple output condition with fast dynamic response. For external automated control, it comes with on-board isolated 0-5V/0-10V analogue and USB interface. An intelligent plug’n play slot allows retrofitting a multiple choice of optionally available interfaces such as CANopen, Ethernet, Profibus, Profinet, Modbus RS232 and others. This series is an excellent 'low-emission' tool for most needs in demanding laboratory and industrial application environments, for R&D and automated testing.

FPGA based controller, 16 bit resolution
For laboratory, industry, R&D, automated testing
Flexible auto-ranging output, constant U, I, P, R mode
Adjustable output impedance, e.g. PV array simulation, battery simulation
Intuitive touch panel, function generator, up to 4-digit display, profile memory
Isolated analogue interface (0-5V/0-10V), USB interface
Plug’n play slot for optional interface cards (CANopen, Ethernet, Profibus, Profinet, Modbus, Devicenet, RS232 and more)
True master-slave bus with summary function, for parallel & series operation
Attractive and rugged 19" 2U rack format
IEC 320-C20 input receptacle, outlet 8mm bolts with insulated safety cover

Supplied with

power cord, user manual (English/German)

//media.rs-online.com/t_line/L8030135-01.jpg

Elektro-Automatik

Specifications
Attribute Value
Output Voltage 0 → 80V
Output Current 0 → 40A
Number of Outputs 1
Type Analogue, Digital
Power Rating 0 → 1000W
Supply Voltage 90 → 264V
Number of Displays 1
Calibrated UKAS
Minimum Temperature 0°C
Maximum Temperature +50°C
Available to back order for despatch 12/02/2020
Price Each
£ 1,784.55
(exc. VAT)
£ 2,141.46
(inc. VAT)
Units
Per unit
1 +
£1,784.55
Not available for guaranteed pre 9am/10am delivery
