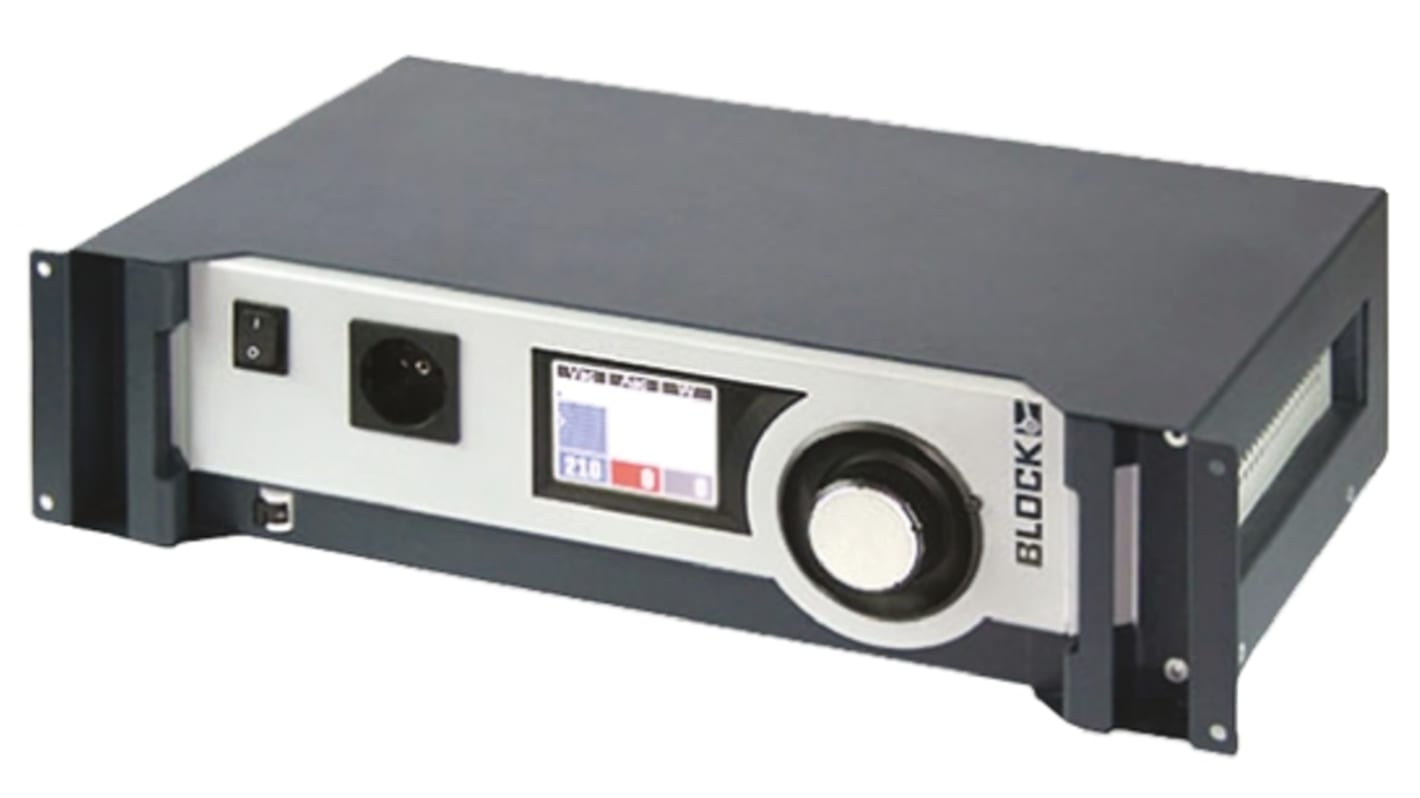

Block Bench Power Supply, 0 → 250V, 1.6A, 1-Output, 400VA

Image representative of range

View all Bench Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
765-3733
Mfr. Part No.:
BRS 400
Brand:
Block
Find similar products by selecting one or more attributes.
Select all

Brand

Block

Number of Outputs

1

Output Voltage

0 → 250V

Supply Voltage

230V ac

Output Current

1.6A

Power Rating

400VA

Number of Displays

2

Type

Digital

Input Connector

Schuko Plug

Output Connector

4 mm Safety Socket

Maximum Temperature

+40°C

Minimum Temperature

0°C

COO (Country of Origin):
DE

Block BRS series Laboratory AC power supply


The BRS series AC current supply from Block enables graphical visualisation of current and voltage curves.

Features & Benefits


Rated input voltage 230 V ac
Rated output voltage 0 V ac to 250 V ac
Rated frequency 50 Hz
Self-cooling
Insulation class B
Maximum ambient temperature 104°F/40°C
IP20
Mains connection lead with safety plug, safety socket

Product Application Information


This isolating transformer can be used in laboratories due to its controllable output voltage.

Standards

VDE 0570 Teil 2-4, VDE 0411 Teil 1, DIN EN 61558-2-4, EN 61558-2-4, EN 61010-1, IEC 61558-2-4, IEC 61010-1
400 VA power
4.96 internal impedence
92% efficiency

Standards

VDE 0570 Teil 2-4, VDE 0411 Teil 1, DIN EN 61558-2-4, EN 61558-2-4, EN 61010-1, IEC 61558-2-4, IEC 61010-1
