RS PRO Analogue Bench Power Supply, 0 → 30V, 6A, 3-Output, 385W - RS Calibrated
- RS Stock No.:
- 275-4776
- Brand:
- RS PRO
Subtotal (1 unit)*
£1,686.68
(exc. VAT)
£2,024.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,686.68 |
*price indicative
- RS Stock No.:
- 275-4776
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Model Number | RSPS-3060 | |
Number of Outputs | 3 | |
Calibrated | RSCAL | |
Supply Voltage | 230V | |
Output Voltage | 0 → 30V | |
Output Current | 6A | |
Power Rating | 385W | |
Number of Displays | 1 | |
Bench Power Supply Type | Triple Output DC Power Supply | |
Type | Programmable DC Power Supply | |
Digital/Analogue | Analogue | |
Input Connector | LAN, RS232, USB | |
Maximum Temperature | +40°C | |
Minimum Temperature | 0°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Model Number RSPS-3060 | ||
Number of Outputs 3 | ||
Calibrated RSCAL | ||
Supply Voltage 230V | ||
Output Voltage 0 → 30V | ||
Output Current 6A | ||
Power Rating 385W | ||
Number of Displays 1 | ||
Bench Power Supply Type Triple Output DC Power Supply | ||
Type Programmable DC Power Supply | ||
Digital/Analogue Analogue | ||
Input Connector LAN, RS232, USB | ||
Maximum Temperature +40°C | ||
Minimum Temperature 0°C | ||
- COO (Country of Origin):
- CN

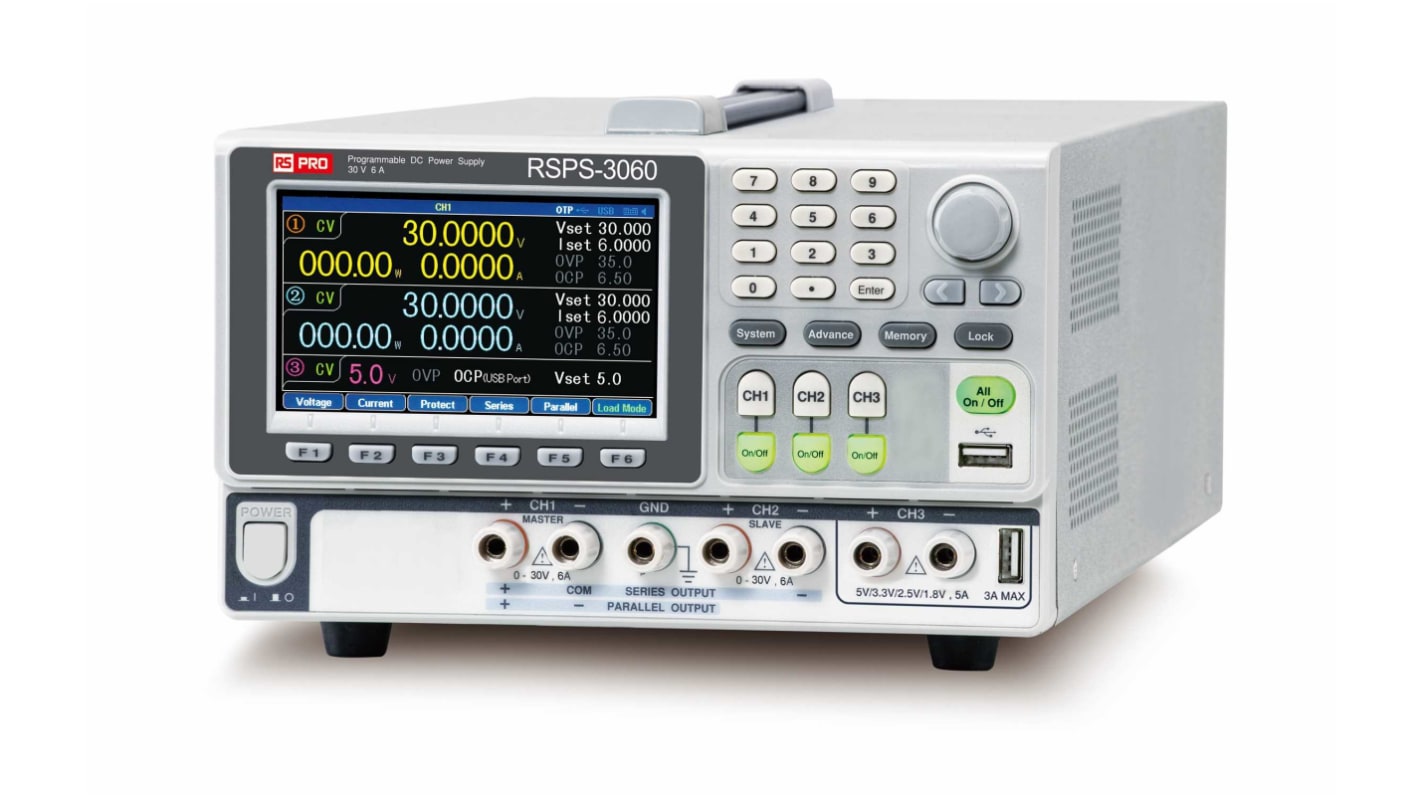

RS PRO RSPS-3060 Analogue Bench Power Supply, 385W
A triple channel DC bench power supply perfect for laboratory and workshop use with high program and read back resolution and low ripple noise.
Fitted with a 4.3in TFT LCD display an RS-232, LAN and USB port interfaces the DC power supply simple to use, with excellent connectivity and is capable of storing up to 10 sets of internal memory which can be loaded or transferred using the USB port.
The DC bench power supply features terminal output at the back of the unit with a remote voltage sensing terminal and additional output from the front panel with independent on-off switches.
The RS PRO bench power supply is easy to operate and comes with a host of functions including the use of Tracking, Series and Parrel modes.
Supplied complete with power cable and test leads.
Features and Benefits
Programmable bench power supply
Analogue
4.3in LCD display
Triple channel
CH1/2: 0 – 30V/ 0 – 6A
CH3: 1.8v, 2.5, 3.3V, 5V/ 5A
Ripple and Noise ≤2mVrms
Memory storage for 10 sets
Load function (CC, CV, CR mode)
Over Voltage protection
Over Temperature protection
RS232, LAN, USB interfaces
Button navigation
Weight of 2.9kg
Standards and Approvals: EN 61010-1: 2010 & A1:2019 EN 61326-1: 2021
