BK Precision Analogue Bench Power Supply, 5-Output 0 V to 80V, 1.2 kW

RS Stock No.:: 240-6655
Distrelec Article No.:: 302-40-583
Mfr. Part No.:: BK9115B
Brand:: BK Precision

BK Precision Analogue Bench Power Supply, 5-Output 0 V to 80V, 1.2 kW

Subtotal (1 unit)*

£1,987.46

(exc. VAT)

£2,384.95

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,987.46

*price indicative

Calibration Options:

BK Precision Analogue Bench Power Supply, 5-Output 0 V to 80V, 1.2 kW

Calibration Type:: RSCAL

RS Stock No.: 240-6902

Each

£2,040.46

(exc. VAT)

£2,448.55

(inc. VAT)

RS Stock No.:: 240-6655
Distrelec Article No.:: 302-40-583
Mfr. Part No.:: BK9115B
Brand:: BK Precision

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	BK Precision
	Product Type	Bench Power Supply
	Maximum Output Voltage	80V
	Maximum Output Current	60A
	Power	1.2kW
	Minimum Supply Voltage	0V
	Output Type	Digital
	Maximum Supply Voltage	80V
	Minimum Operating Temperature	0°C
	Digital/Analogue	Analogue
	Maximum Operating Temperature	40°C
	Height	44.5mm
	Standards/Approvals	ISO 16750
	Depth	483.2mm
	Minimum Output Voltage	0V
	Minimum Output Current	0A

	Select all
	Brand BK Precision
	Product Type Bench Power Supply
	Maximum Output Voltage 80V
	Maximum Output Current 60A
	Power 1.2kW
	Minimum Supply Voltage 0V
	Output Type Digital
	Maximum Supply Voltage 80V
	Minimum Operating Temperature 0°C
	Digital/Analogue Analogue
	Maximum Operating Temperature 40°C
	Height 44.5mm
	Standards/Approvals ISO 16750
	Depth 483.2mm
	Minimum Output Voltage 0V
	Minimum Output Current 0A

Datasheet - BK9115B

COO (Country of Origin):: CN

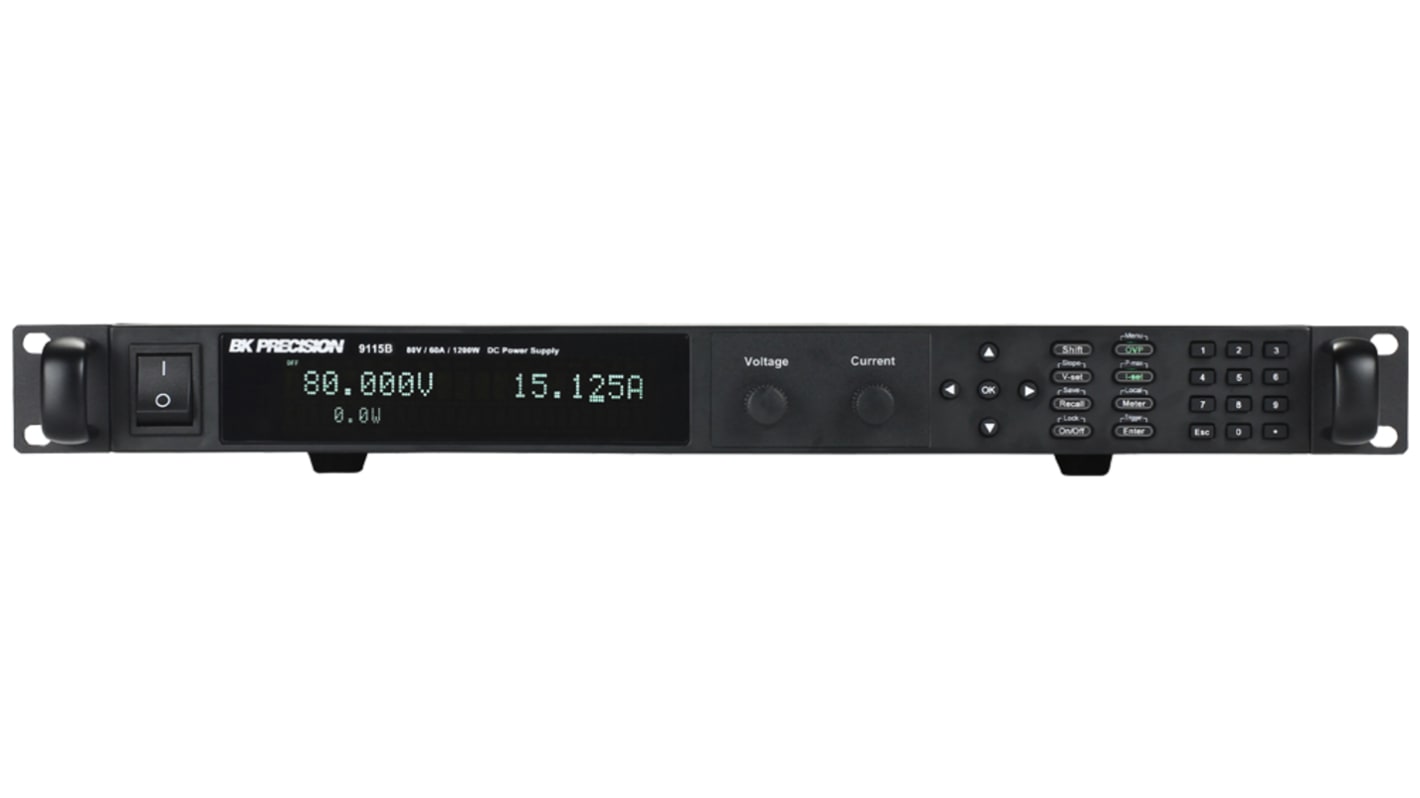

BK9115B Bench Power Supply

The BK9115B is a programmable DC power supply manufactured by B&K Precision. Its high-power output, extensive programmability, robust protection features, and multiple communication interfaces makes it ideal for various professional and industrial applications.

The BK9115B has a benchtop form factor, making it suitable for laboratory environments and test benches. The power supply offers programmable voltage, current, and power settings, which can be controlled via various interfaces. This allows for automated testing and precise control over output parameters.

The BK Precision 9115/B Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

Features and Benefits:

Voltage up to 80V

Current - up to 60A

Maximum power output is 1200W

Communication Interfaces such as USB, RS232, GPIB, and LAN. These interfaces enable remote programming and monitoring, facilitating integration into automated test systems and network environments.

User-friendly display which provides real-time readouts of voltage, current, power, and other parameters and allows for easy setting adjustments and monitoring.

Protection Features - comes with comprehensive protection features including overvoltage protection (OVP), overcurrent protection (OCP), overpower protection (OPP), and overtemperature protection (OTP). These safety mechanisms help protect both the power supply and the connected devices from damage.

Data Logging and Storage - includes data logging capabilities, allowing users to store and analyse output data over time. This is useful for long-term testing and validation.

Supports various operational modes, including constant voltage (CV), constant current (CC), and constant power (CP) modes which allows it to meet the needs of different applications and testing requirements.

Multi-ranging operation (output up to max power rating within maximum voltage and current rating)

Compact, high density, 1U rackmount form factor (2U for 9117)

High programming and read back resolution

Adjustable voltage slope (rise and fall time)

Multi-ranging operation (output up to max power rating within maximum voltage and current rating)

Compact, high density, 1U rackmount form factor

High programming and readback resolution

Adjustable voltage rise and fall times

Sequence programming (internal list mode for BK9115, BK9115-AT, and BK9116)

Store and recall up to 100 instrument settings

Standard USB (USBTMC-compliant), RS-232, RS-485 interfaces supporting SCPI commands for remote control

Analog interface with control and monitoring functions

Remote sense

Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function

Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators
