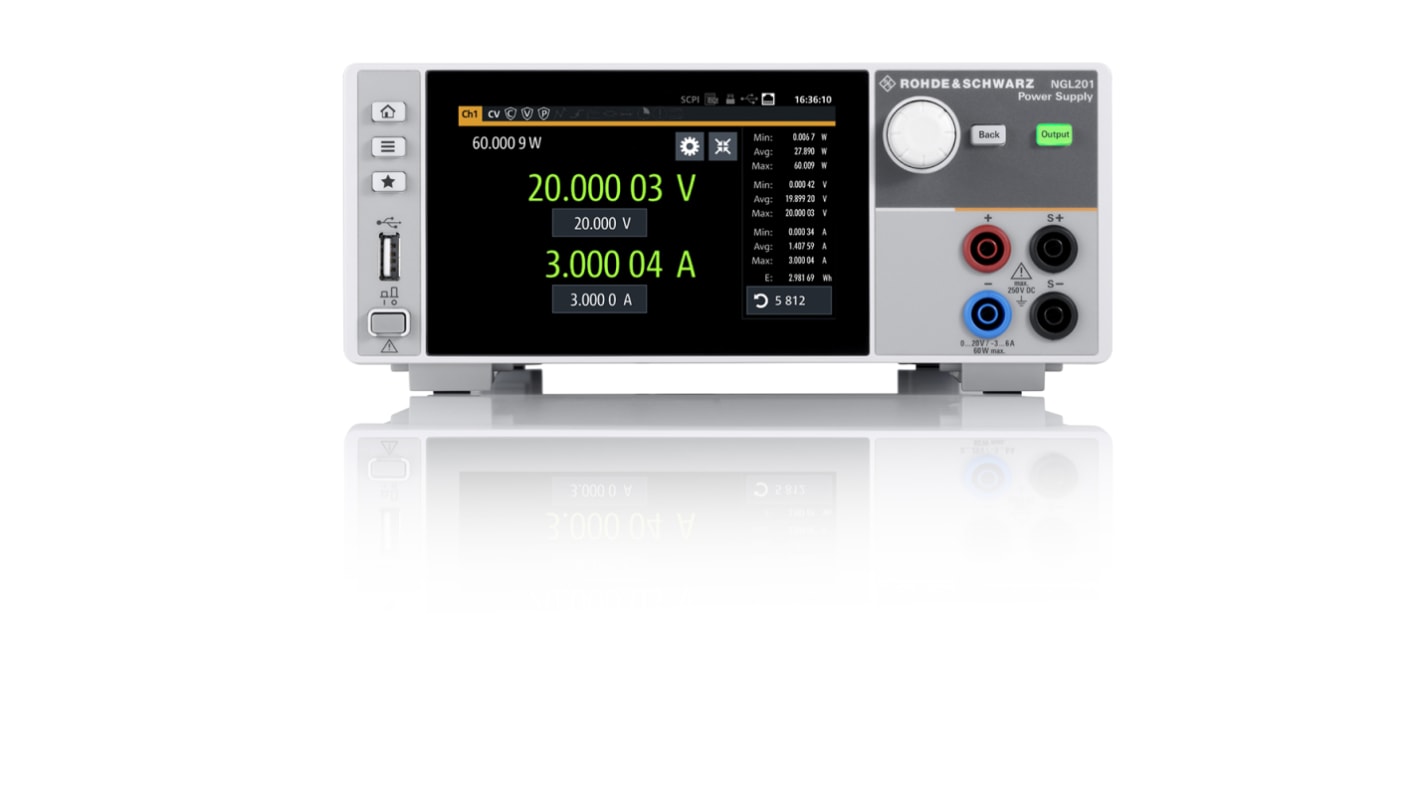

Rohde & Schwarz NGL200 Series Digital Bench Power Supply, 0 → 20V, 6A, 2-Output, 120W
- RS Stock No.:
- 187-3720
- Mfr. Part No.:
- NGL-COM2a
- Brand:
- Rohde & Schwarz
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3,195.09
(exc. VAT)
£3,834.11
(inc. VAT)
- RS Stock No.:
- 187-3720
- Mfr. Part No.:
- NGL-COM2a
- Brand:
- Rohde & Schwarz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Series | NGL200 | |
| Model Number | NGL-COM2a | |
| Number of Outputs | 2 | |
| Supply Voltage | 100 / 115 / 230V | |
| Output Voltage | 0 → 20V | |
| Output Current | 6A | |
| Power Rating | 120W | |
| Number of Displays | 1 | |
| Bench Power Supply Type | Adjustable Power Supply | |
| Type | Digital | |
| Digital/Analogue | Digital | |
| Output Connector | 4 mm Safety Socket | |
| Minimum Temperature | +5°C | |
| Maximum Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Series NGL200 | ||
Model Number NGL-COM2a | ||
Number of Outputs 2 | ||
Supply Voltage 100 / 115 / 230V | ||
Output Voltage 0 → 20V | ||
Output Current 6A | ||
Power Rating 120W | ||
Number of Displays 1 | ||
Bench Power Supply Type Adjustable Power Supply | ||
Type Digital | ||
Digital/Analogue Digital | ||
Output Connector 4 mm Safety Socket | ||
Minimum Temperature +5°C | ||
Maximum Temperature +40°C | ||
- COO (Country of Origin):
- CZ
Rohde & Schwarz Bench Power Supply Bundle
Rohde & Schwarz offer this large inclusion bundle of bench supply, software upgrades and accessories.
Due to their high accuracy and fast load recovery time, the R&S®NGL200 power supply series is perfect for challenging applications. Their two-quadrant architecture allows them to function both as a source and a sink to simulate batteries and loads. Their short recovery times enable them to handle fast load changes that occur for example when mobile communications devices switch from sleep mode to transmit mode.
Resolution of up to 6 digits when measuring voltage, current and power allows this bench supply to characterise devices with low power consumption in standby mode, as well as a high current in full load operation. Output channels are floating, galvanically isolated and protected against overload and short circuits. Tailored specifically for use in labs and system racks this package is the ideal solution for all your bench needs.
Due to their high accuracy and fast load recovery time, the R&S®NGL200 power supply series is perfect for challenging applications. Their two-quadrant architecture allows them to function both as a source and a sink to simulate batteries and loads. Their short recovery times enable them to handle fast load changes that occur for example when mobile communications devices switch from sleep mode to transmit mode.
Resolution of up to 6 digits when measuring voltage, current and power allows this bench supply to characterise devices with low power consumption in standby mode, as well as a high current in full load operation. Output channels are floating, galvanically isolated and protected against overload and short circuits. Tailored specifically for use in labs and system racks this package is the ideal solution for all your bench needs.
Included in this bundle:
Features and Benefits:
• Fast load regulation
• High-resolution touch screen
• Safety limits to safeguard the DUT
• Constant voltage, constant current and constant resistance modes
• Minimum residual ripple and low noise
• Output stage isolated, floating channels
• Software upgrades included
• High-resolution touch screen
• Safety limits to safeguard the DUT
• Constant voltage, constant current and constant resistance modes
• Minimum residual ripple and low noise
• Output stage isolated, floating channels
• Software upgrades included
