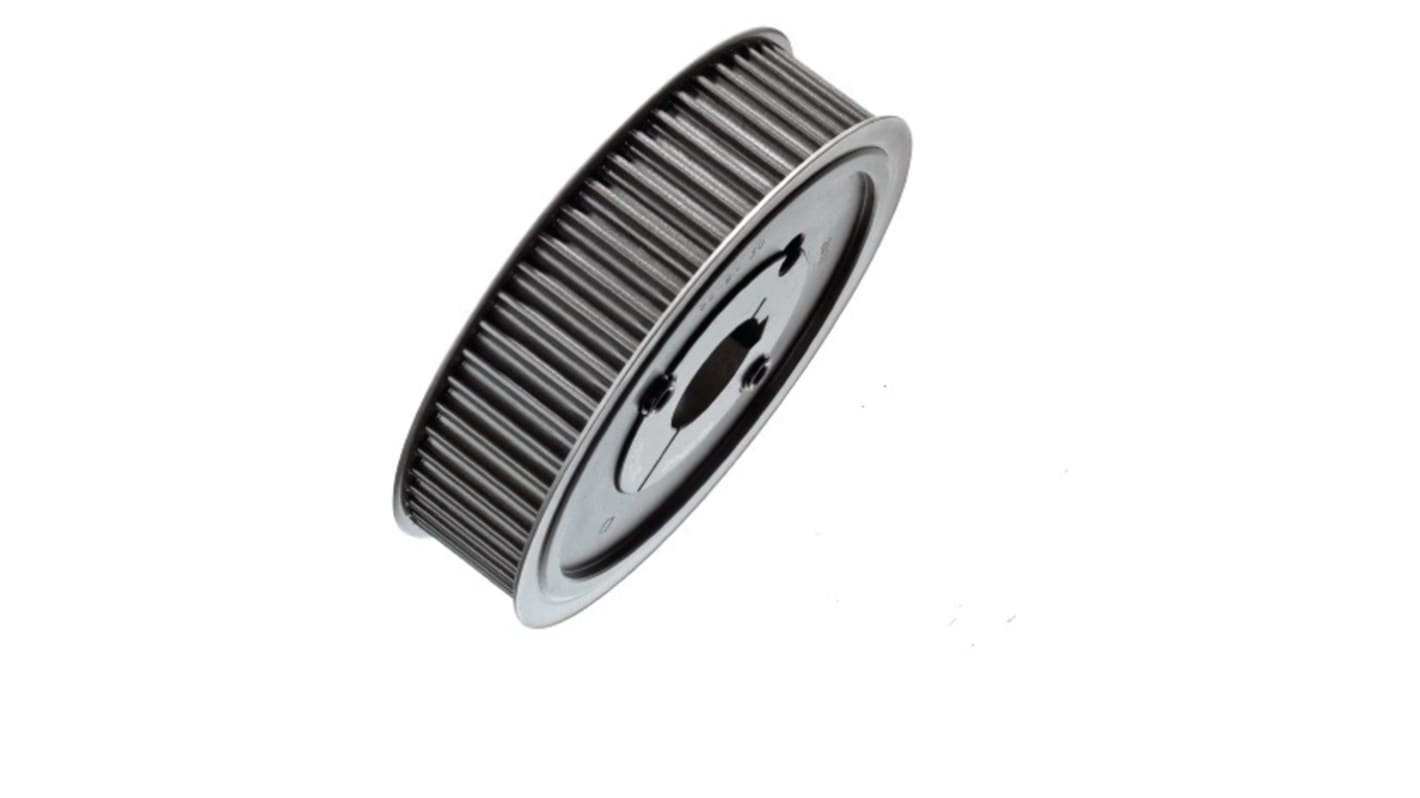

OPTIBELT Timing Belt Pulley Steel 15 mm 5 mm Pitch, 64 Tooth
- RS Stock No.:
- 239-5337
- Mfr. Part No.:
- TB 64 5M 15
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£26.68
(exc. VAT)
£32.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.68 |
*price indicative
- RS Stock No.:
- 239-5337
- Mfr. Part No.:
- TB 64 5M 15
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Number of Teeth | 64 | |
| Product Type | Timing Belt Pulley | |
| Pitch | 5mm | |
| Pitch Circle Diameter | 101.86mm | |
| Flange Diameter | 106mm | |
| Material | Steel | |
| Flanged | Yes | |
| Acceptable Belt Width | 15mm | |
| Outside Diameter | 100.72 mm | |
| Standards/Approvals | RoHS | |
| Bore Type | Tapered | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Number of Teeth 64 | ||
Product Type Timing Belt Pulley | ||
Pitch 5mm | ||
Pitch Circle Diameter 101.86mm | ||
Flange Diameter 106mm | ||
Material Steel | ||
Flanged Yes | ||
Acceptable Belt Width 15mm | ||
Outside Diameter 100.72 mm | ||
Standards/Approvals RoHS | ||
Bore Type Tapered | ||
The Optibelt HTD(High Torque Drive) pulley for taper bushings has metric profile 5M. It has 64 number of tooth and 5 mm pitch.
Belt width is 15 mm
8F type
Taper bushing 1210
Material Steel
