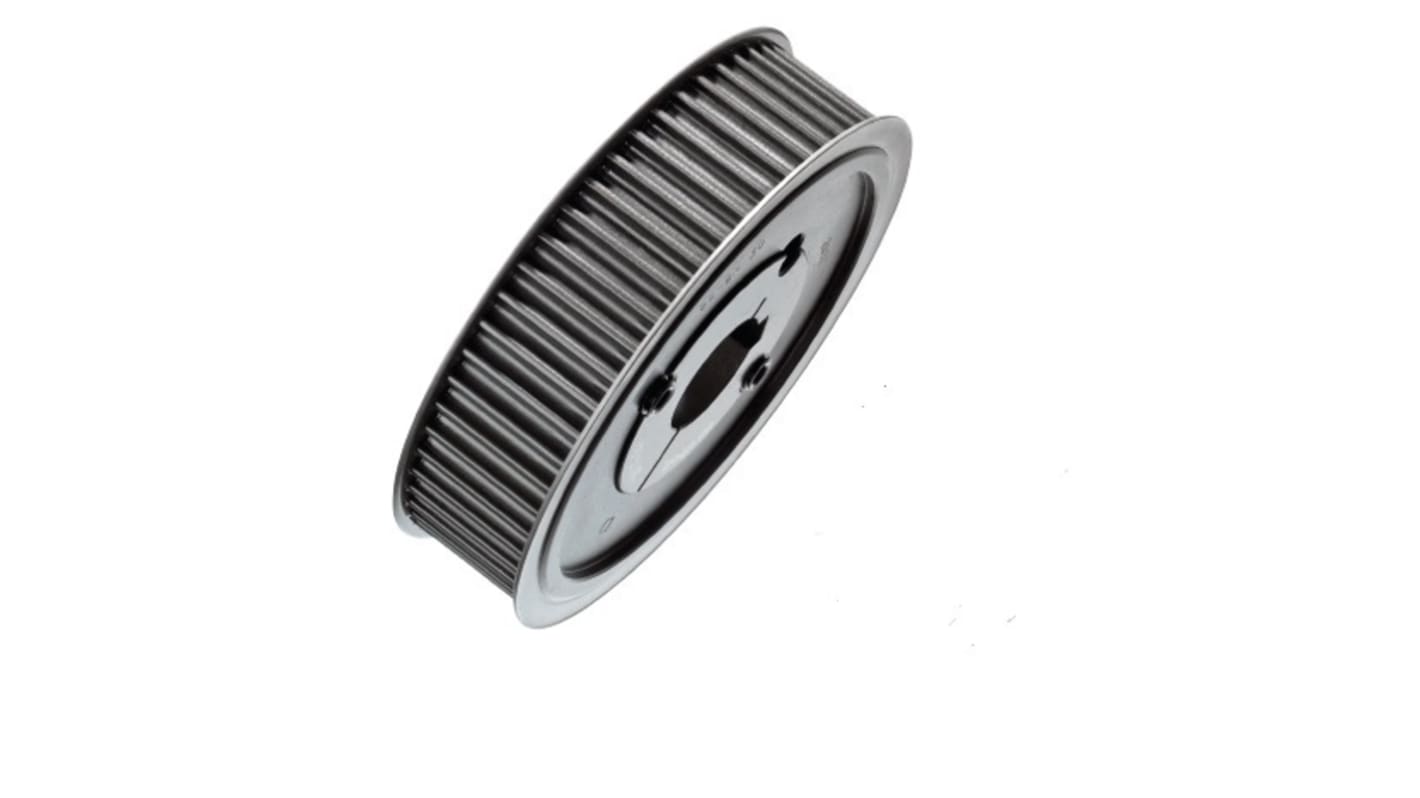

OPTIBELT Timing Belt Pulley Steel 30 mm 8 mm Pitch, 48 Tooth
- RS Stock No.:
- 239-5321
- Mfr. Part No.:
- TB 48 8M 30
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£38.29
(exc. VAT)
£45.95
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.29 |
*price indicative
- RS Stock No.:
- 239-5321
- Mfr. Part No.:
- TB 48 8M 30
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Number of Teeth | 48 | |
| Product Type | Timing Belt Pulley | |
| Pitch | 8mm | |
| Pitch Circle Diameter | 122.23mm | |
| Flange Diameter | 128mm | |
| Material | Steel | |
| Flanged | Yes | |
| Acceptable Belt Width | 30mm | |
| Outside Diameter | 120.86 mm | |
| Standards/Approvals | RoHS | |
| Bore Type | Tapered | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Number of Teeth 48 | ||
Product Type Timing Belt Pulley | ||
Pitch 8mm | ||
Pitch Circle Diameter 122.23mm | ||
Flange Diameter 128mm | ||
Material Steel | ||
Flanged Yes | ||
Acceptable Belt Width 30mm | ||
Outside Diameter 120.86 mm | ||
Standards/Approvals RoHS | ||
Bore Type Tapered | ||
The Optibelt HTD(High Torque Drive) pulley for taper bushings has metric profile 8M. It has 48 number of tooth and 8 mm pitch.
Belt width is 30 mm
4F type
Taper bushing 2012
Material Steel
