OPTIBELT Timing Belt Pulley Steel 20 mm 8 mm Pitch, 72 Tooth
- RS Stock No.:
- 236-5752
- Mfr. Part No.:
- 728M20
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£73.71
(exc. VAT)
£88.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.71 |
*price indicative
- RS Stock No.:
- 236-5752
- Mfr. Part No.:
- 728M20
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 72 | |
| Pitch | 8mm | |
| Pitch Circle Diameter | 183.35mm | |
| Flange Diameter | 192mm | |
| Bore Size | 45 mm | |
| Material | Steel | |
| Flanged | Yes | |
| Acceptable Belt Width | 20mm | |
| Outside Diameter | 181.97 mm | |
| Bore Type | Pilot Bore | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 72 | ||
Pitch 8mm | ||
Pitch Circle Diameter 183.35mm | ||
Flange Diameter 192mm | ||
Bore Size 45 mm | ||
Material Steel | ||
Flanged Yes | ||
Acceptable Belt Width 20mm | ||
Outside Diameter 181.97 mm | ||
Bore Type Pilot Bore | ||
Standards/Approvals No | ||

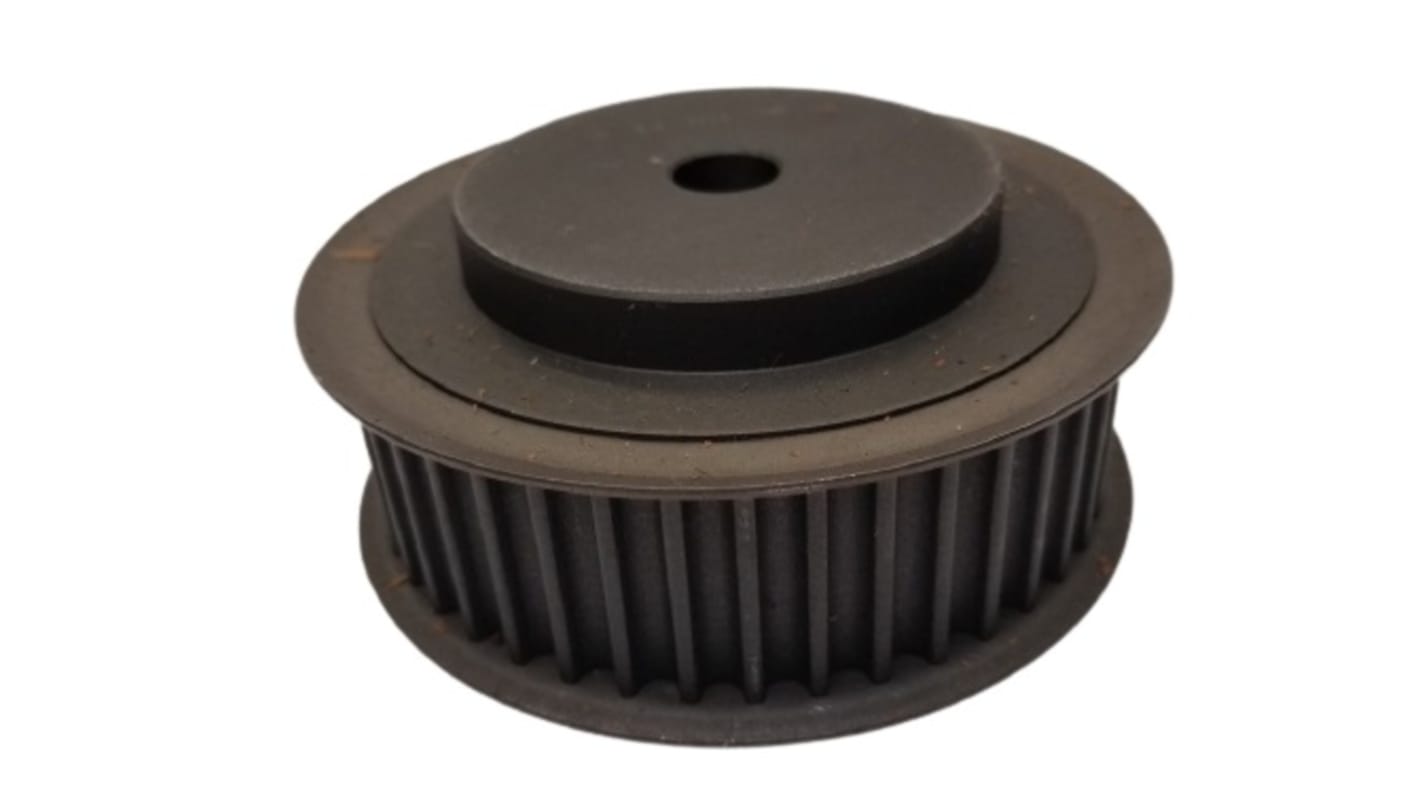

The OPTIBELT ZRS HTD pulleys for plain boring metric profile 8M has belt width of 20 mm and 72 number of teeth. It has finished bore hole of max 45 mm.
Designed to be used with HTD belts
Maximum bore diameter of 45 mm
Manufactured from high strength material
