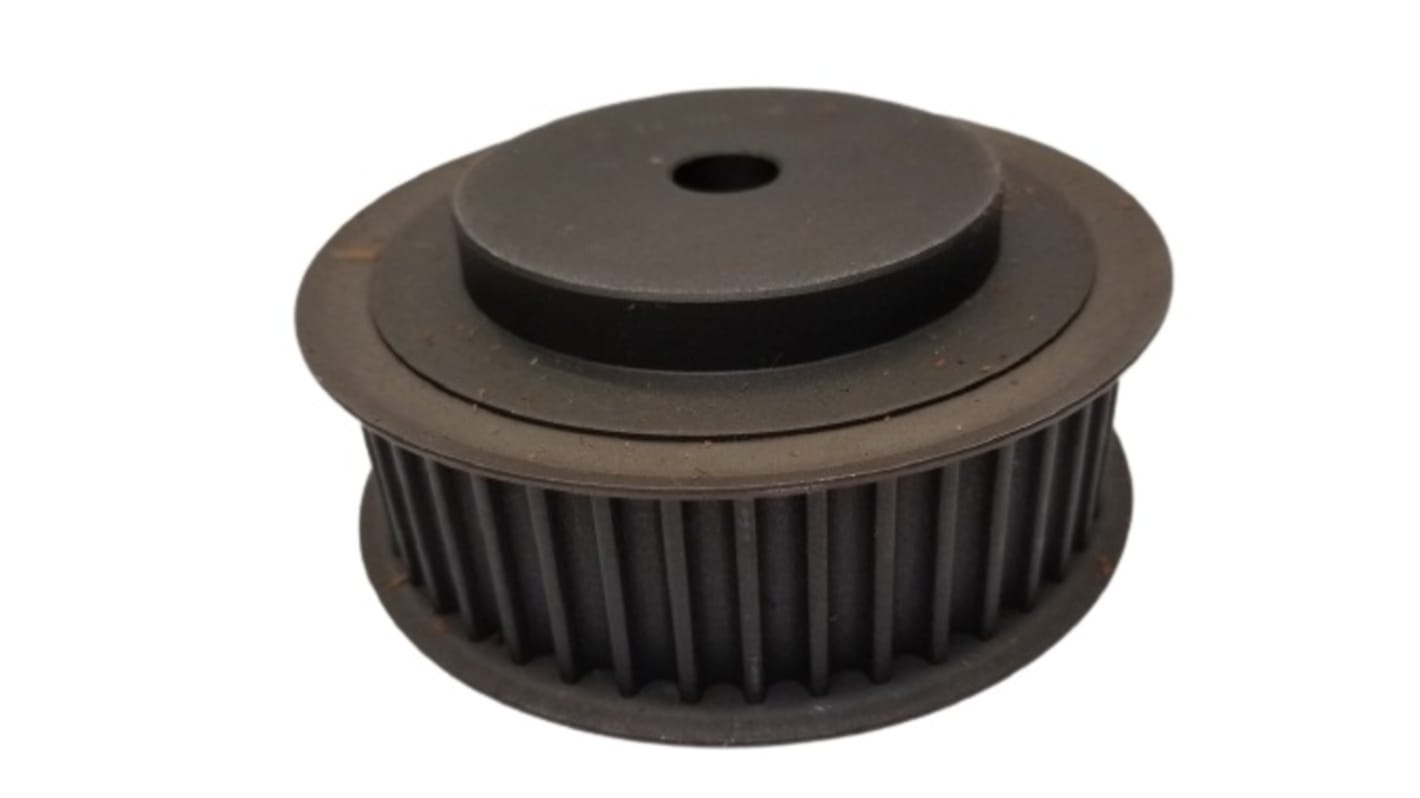

OPTIBELT Timing Belt Pulley Cast Iron 12.5 mm Pitch, 48 Tooth
- RS Stock No.:
- 236-5730
- Mfr. Part No.:
- 48H150
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£130.18
(exc. VAT)
£156.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £130.18 |
*price indicative
- RS Stock No.:
- 236-5730
- Mfr. Part No.:
- 48H150
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 48 | |
| Pitch | 12.5mm | |
| Pitch Circle Diameter | 194.04mm | |
| Flange Diameter | 200mm | |
| Bore Diameter | 45mm | |
| Material | Cast Iron | |
| Flanged | Yes | |
| Outside Diameter | 192.67mm | |
| Standards/Approvals | RoHS | |
| Bore Type | Pilot Bore | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 48 | ||
Pitch 12.5mm | ||
Pitch Circle Diameter 194.04mm | ||
Flange Diameter 200mm | ||
Bore Diameter 45mm | ||
Material Cast Iron | ||
Flanged Yes | ||
Outside Diameter 192.67mm | ||
Standards/Approvals RoHS | ||
Bore Type Pilot Bore | ||
The OPTIBELT ZRS timing belt pulleys for plain boring imperial profile H (12.7 mm) has belt width of 150 mm and 48 number of teeth. It has finished bore of max 45 mm.
Maximum bore diameter of 45 mm
Manufactured from high strength material
