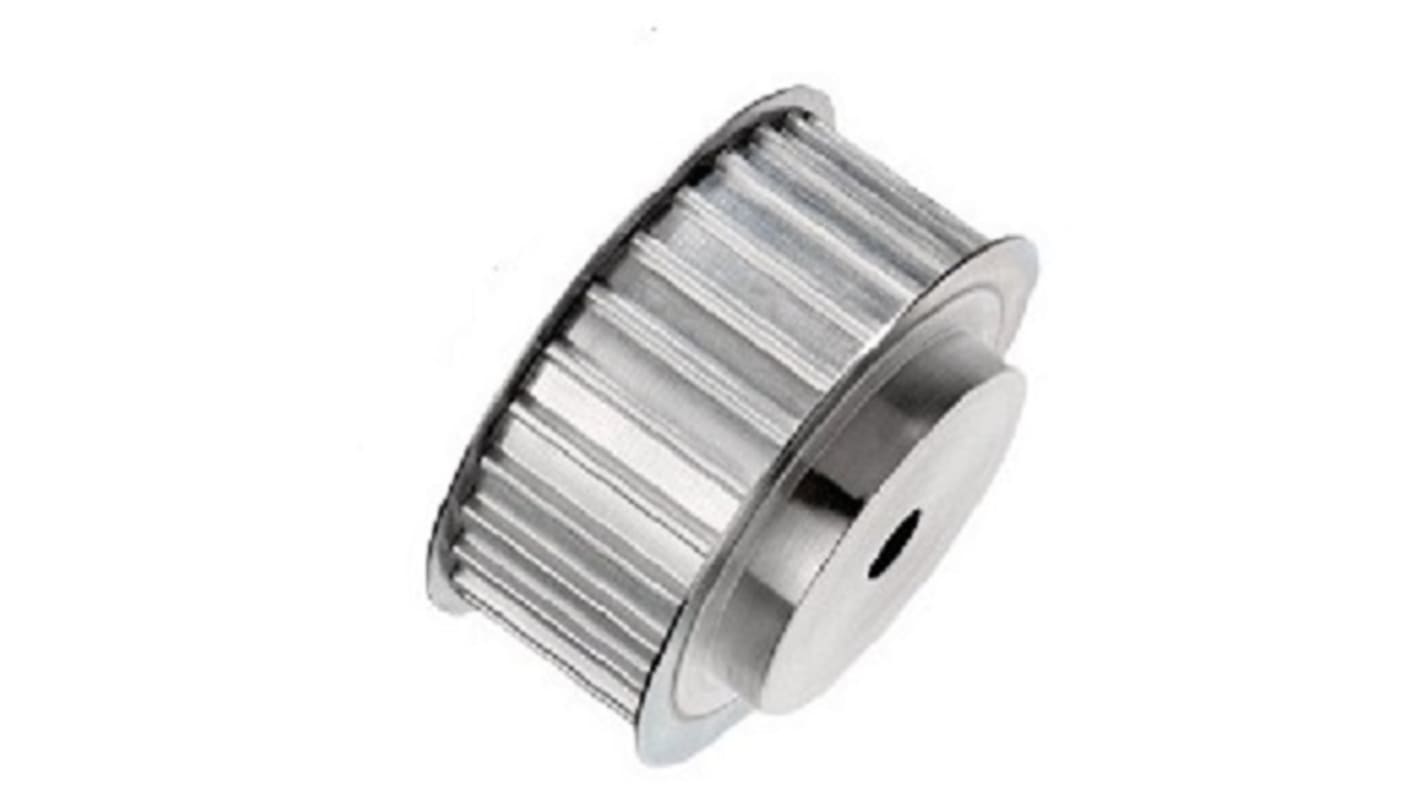

OPTIBELT Timing Belt Pulley Aluminium 32 mm 10 mm Pitch, 27 Tooth
- RS Stock No.:
- 236-5572
- Mfr. Part No.:
- 27-247AT10
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£35.49
(exc. VAT)
£42.59
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £35.49 |
*price indicative
- RS Stock No.:
- 236-5572
- Mfr. Part No.:
- 27-247AT10
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Number of Teeth | 27 | |
| Product Type | Timing Belt Pulley | |
| Pitch | 10mm | |
| Pitch Circle Diameter | 85.95mm | |
| Bore Size | 30 mm | |
| Flange Diameter | 91mm | |
| Material | Aluminium | |
| Flanged | Yes | |
| Acceptable Belt Width | 32mm | |
| Outside Diameter | 84.1 mm | |
| Bore Type | Pilot Bore | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Number of Teeth 27 | ||
Product Type Timing Belt Pulley | ||
Pitch 10mm | ||
Pitch Circle Diameter 85.95mm | ||
Bore Size 30 mm | ||
Flange Diameter 91mm | ||
Material Aluminium | ||
Flanged Yes | ||
Acceptable Belt Width 32mm | ||
Outside Diameter 84.1 mm | ||
Bore Type Pilot Bore | ||
Standards/Approvals No | ||
The OPTIBELT ZRS HTD pulleys for plain boring metric profile AT10 has belt width of 32 mm and 27 number of teeth. It has finished bore hole of max 30 mm.
Designed to be used with HTD belts
Maximum bore diameter of 30 mm
Manufactured from high strength material
