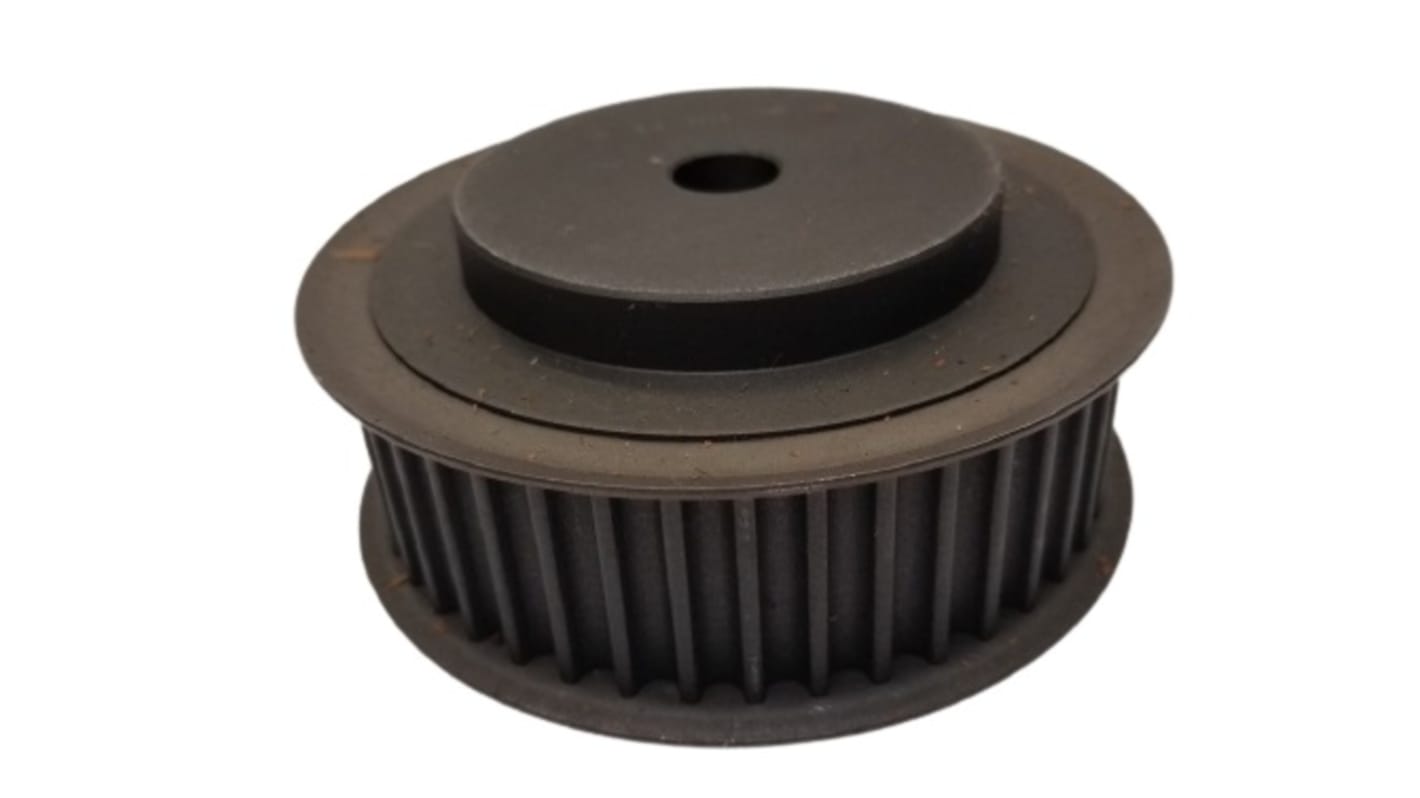

OPTIBELT Timing Belt Pulley Steel 15 mm 5 mm Pitch, 22 Tooth
- RS Stock No.:
- 236-5507
- Mfr. Part No.:
- 225M15
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£5.36
(exc. VAT)
£6.43
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.36 |
*price indicative
- RS Stock No.:
- 236-5507
- Mfr. Part No.:
- 225M15
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 22 | |
| Pitch | 5mm | |
| Pitch Circle Diameter | 35.01mm | |
| Flange Diameter | 39mm | |
| Bore Size | 14 mm | |
| Material | Steel | |
| Flanged | Yes | |
| Acceptable Belt Width | 15mm | |
| Outside Diameter | 33.87 mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 22 | ||
Pitch 5mm | ||
Pitch Circle Diameter 35.01mm | ||
Flange Diameter 39mm | ||
Bore Size 14 mm | ||
Material Steel | ||
Flanged Yes | ||
Acceptable Belt Width 15mm | ||
Outside Diameter 33.87 mm | ||
Standards/Approvals RoHS | ||
The OPTIBELT ZRS HTD pulleys for plain boring metric profile 5M has belt width of 15 mm and 22 number of teeth. It has finished bore hole of max 14 mm.
Designed to be used with HTD belts
Maximum bore diameter of 14 mm
Manufactured from high strength material
