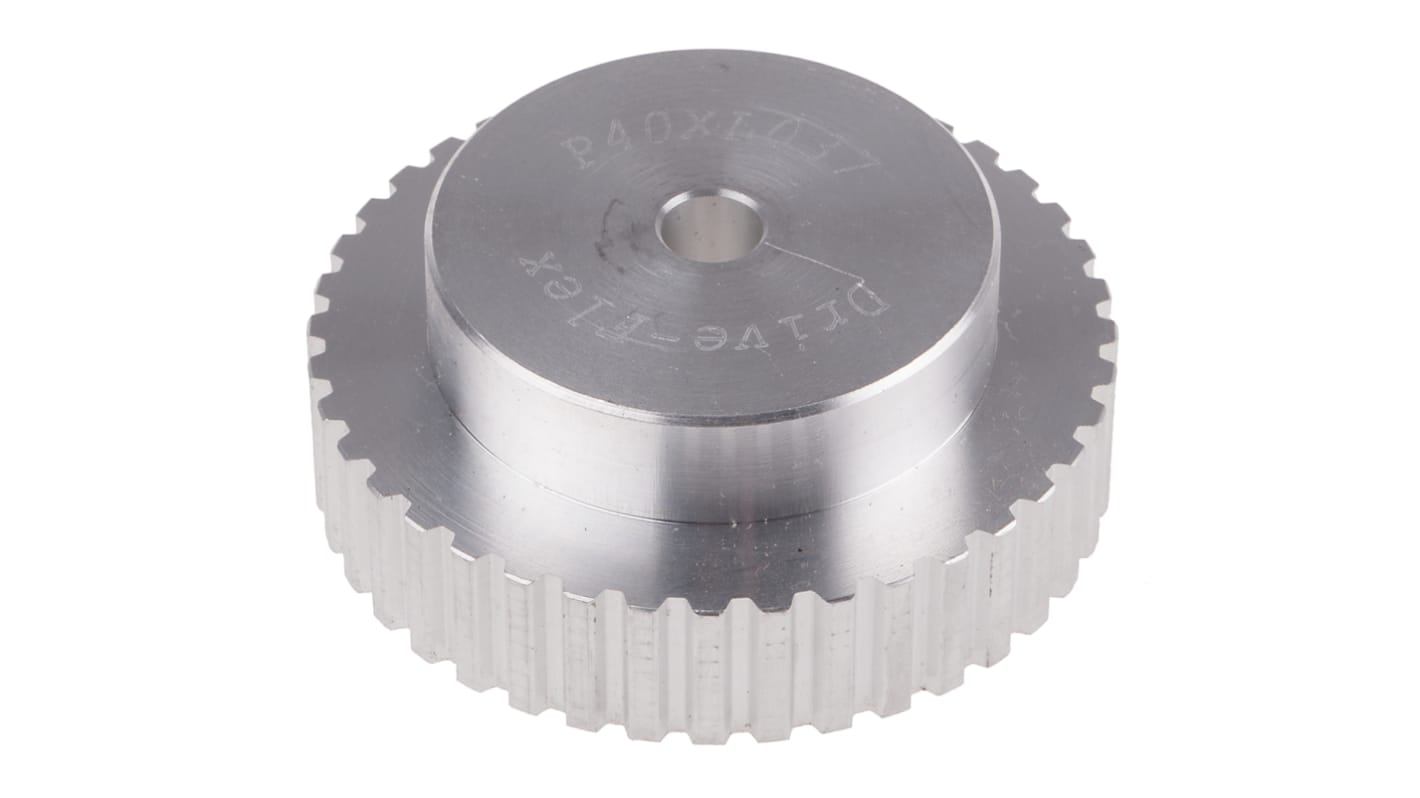

RS PRO Timing Belt Pulley Aluminium 14.3 mm 5 mm Pitch, 40 Tooth
- RS Stock No.:
- 182-745
- Mfr. Part No.:
- PB TYPE XL 037 40 TOOTH PULLEY
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£16.59
(exc. VAT)
£19.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £16.59 |
| 5 - 9 | £16.28 |
| 10 - 24 | £15.94 |
| 25 + | £15.60 |
*price indicative
- RS Stock No.:
- 182-745
- Mfr. Part No.:
- PB TYPE XL 037 40 TOOTH PULLEY
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 40 | |
| Pitch | 5mm | |
| Pitch Circle Diameter | 64.68mm | |
| Material | Aluminium | |
| Flanged | No | |
| Acceptable Belt Width | 14.3mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 40 | ||
Pitch 5mm | ||
Pitch Circle Diameter 64.68mm | ||
Material Aluminium | ||
Flanged No | ||
Acceptable Belt Width 14.3mm | ||
Standards/Approvals No | ||
XL 037 Pulleys
5.1mm ( 1/5 in.) pitch
Suitable for belts 6.4mm ( 1/4 in.) and 9.5mm ( 3/8 in.) wide
Classic Timing Belt Pulleys
These pulleys are designed to be used with synchronous classic timing belts and are manufactured from high strength material. They are easily re-bored to the required shaft size.
Note
Pulleys up to and including 21 teeth have countersunk centres.
