INA 4 Hole, PCJ40-XL-N 40 mm ID
- RS Stock No.:
- 260-0331
- Mfr. Part No.:
- PCJ40-XL-N
- Brand:
- INA
Subtotal (1 unit)*
£71.04
(exc. VAT)
£85.25
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £71.04 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 260-0331
- Mfr. Part No.:
- PCJ40-XL-N
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Flange Bearing Unit | |
| Inside Diameter | 40mm | |
| Number of Mount Holes | 4 | |
| Material | Cast Iron | |
| Locking Type | Eccentric Locking Collar | |
| Length | 130mm | |
| Width | 56.8mm | |
| Depth | 56.8mm | |
| Mount Hole Size | 14 mm | |
| Mount Hole Centre-to-Centre | 101.5mm | |
| Standards/Approvals | No | |
| Series | PCJ | |
| Static Load Rating | 19800N | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Dynamic Load Rating | 34500N | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Flange Bearing Unit | ||
Inside Diameter 40mm | ||
Number of Mount Holes 4 | ||
Material Cast Iron | ||
Locking Type Eccentric Locking Collar | ||
Length 130mm | ||
Width 56.8mm | ||
Depth 56.8mm | ||
Mount Hole Size 14 mm | ||
Mount Hole Centre-to-Centre 101.5mm | ||
Standards/Approvals No | ||
Series PCJ | ||
Static Load Rating 19800N | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
Dynamic Load Rating 34500N | ||
RoHS Status: Exempt

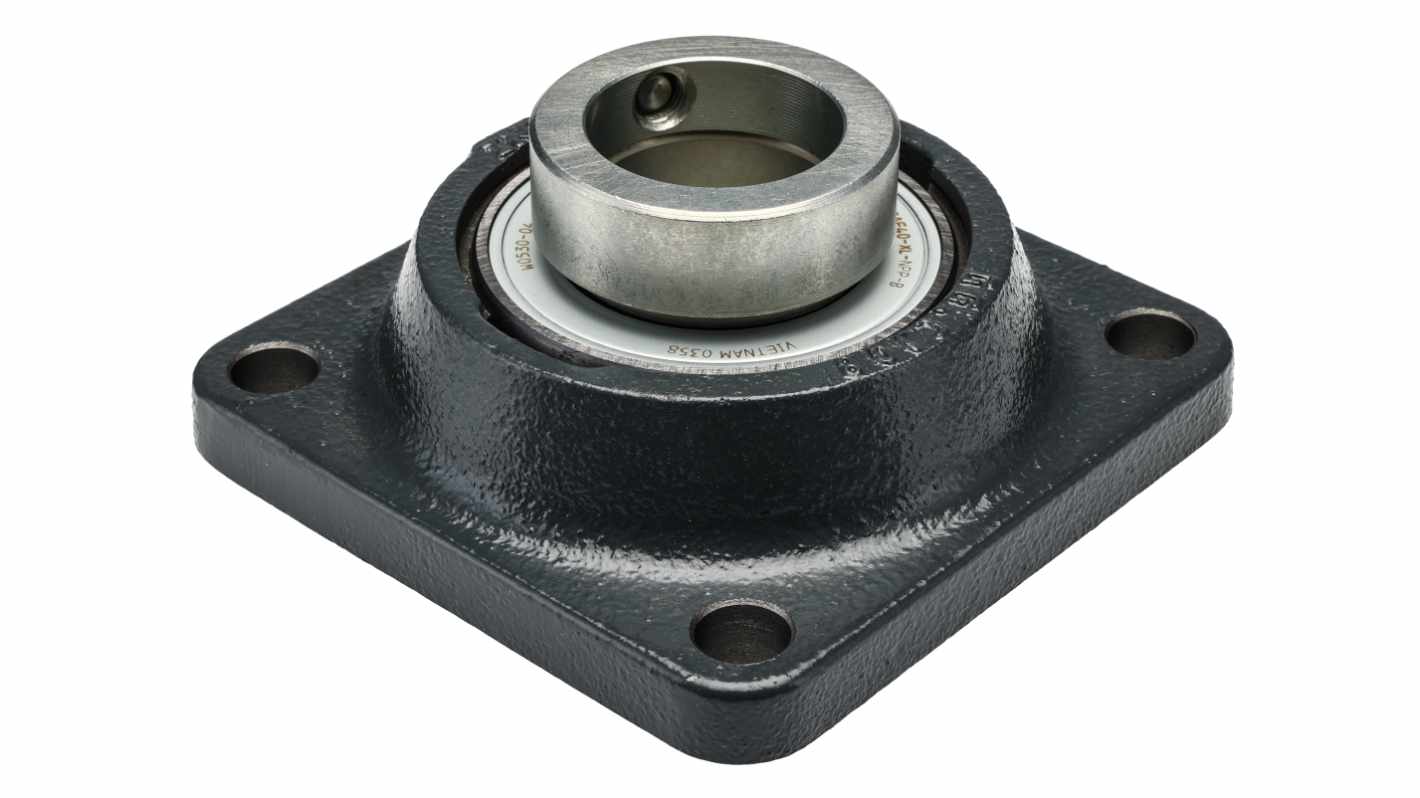

Schaeffler Flanged Bearing Unit, 40mm Inside Diameter, 130mm Length - PCJ40-XL-N
This flanged bearing unit is a reliable solution designed for industrial applications. Optimised for heavy-duty bearing operations, it features a 40mm inside diameter and a cast iron housing, ensuring durability and enhanced performance. With dimensions of 130mm in length and a total height of 56.8mm, this unit accommodates various mounting configurations, making it suitable for complex installations.
Features & Benefits
• Eccentric locking collar simplifies adjustment during installation
• Grey cast iron construction offers high strength and resistance
• Basic dynamic load rating of 34,500N supports robust applications
• Designed with four mounting holes for secure attachment
• P seals enhance protection against contaminants
• Fatigue load limit of 1,030N ensures longevity in demanding conditions
Applications
• Used for industrial machinery requiring precise alignment
• Suitable for conveyor systems where stability is essential
• Common in systems needing reliable performance
• Ideal for heavy-duty equipment demanding robust support
What is the temperature tolerance for this unit during operation?
The operating temperature range is from -20°C to a maximum of 120°C, allowing versatile use in varying conditions.
How is the sealing design beneficial for this bearing unit?
The inclusion of P seals effectively prevents ingress of dirt and moisture, ensuring long service life and consistent performance in industrial environments.
What maintenance considerations should be observed for this product?
Regular inspections should focus on the condition of the locking collar and the integrity of the seals, with lubrication provided via the M6 connection thread as required.
