SKF 2 Hole Cylindrical, FYTB 40 FM 40 mm ID
- RS Stock No.:
- 212-4601
- Mfr. Part No.:
- FYTB 40 FM
- Brand:
- SKF
Subtotal (1 unit)*
£67.06
(exc. VAT)
£80.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £67.06 |
*price indicative
- RS Stock No.:
- 212-4601
- Mfr. Part No.:
- FYTB 40 FM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Flange Bearing Unit | |
| Inside Diameter | 40mm | |
| Number of Mount Holes | 2 | |
| Locking Type | Eccentric Locking Collar | |
| Material | Cast Iron, Steel | |
| Length | 171.5mm | |
| Width | 56.7mm | |
| Depth | 56.7mm | |
| Mount Hole Size | 14 mm | |
| End Type | Open | |
| Mount Hole Centre-to-Centre | 143.5mm | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Series | FYTB | |
| Limiting Speed | 4800rpm | |
| Static Load Rating | 19kN | |
| Dynamic Load Rating | 30.7kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Flange Bearing Unit | ||
Inside Diameter 40mm | ||
Number of Mount Holes 2 | ||
Locking Type Eccentric Locking Collar | ||
Material Cast Iron, Steel | ||
Length 171.5mm | ||
Width 56.7mm | ||
Depth 56.7mm | ||
Mount Hole Size 14 mm | ||
End Type Open | ||
Mount Hole Centre-to-Centre 143.5mm | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Series FYTB | ||
Limiting Speed 4800rpm | ||
Static Load Rating 19kN | ||
Dynamic Load Rating 30.7kN | ||
- COO (Country of Origin):
- IT

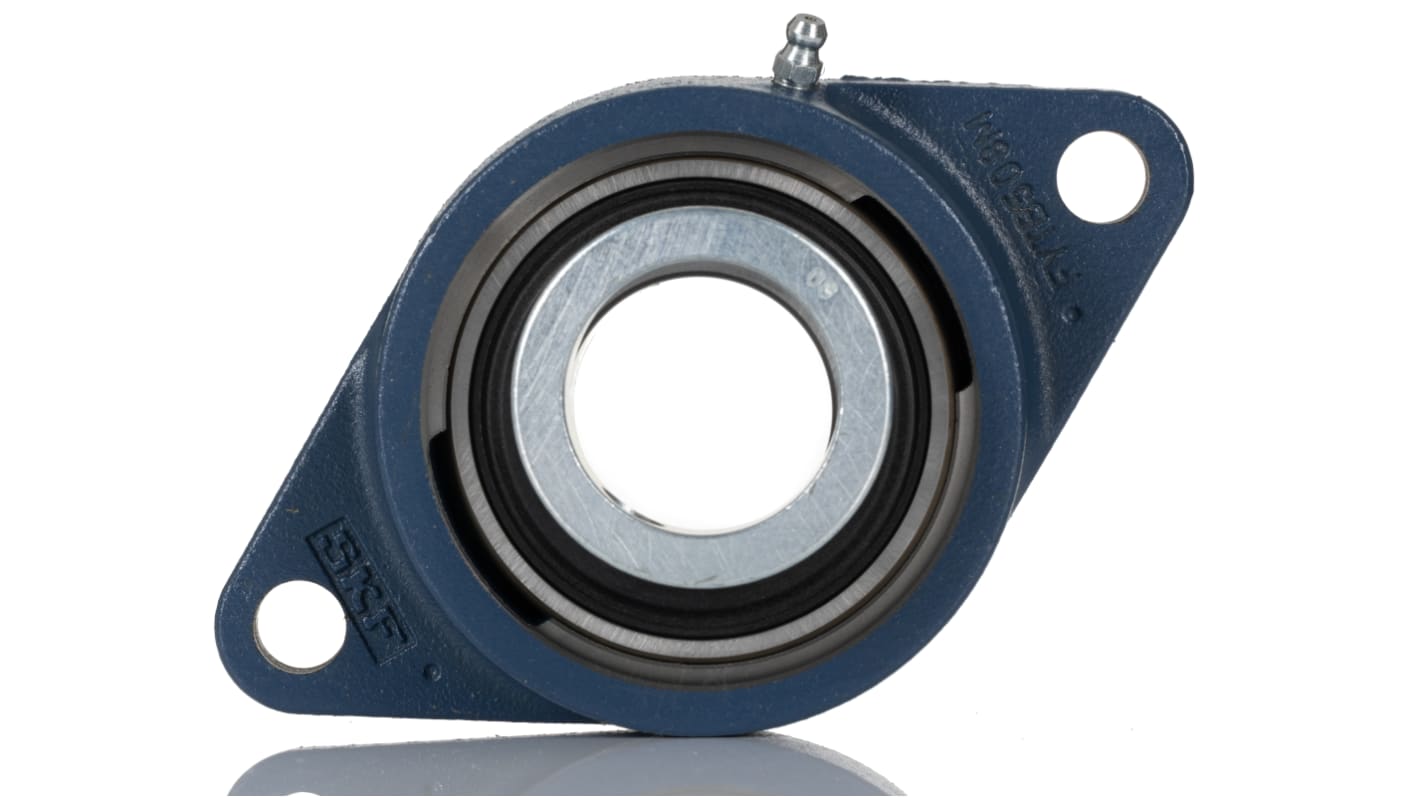

SKF Flanged Bearing Unit, Oval Housing, Sealed Bearing, 40mm ID, 51.8mm OD - FYTB 40 FM
Keep the wheels of your material handling setup turning with this flanged bearing unit from SKF. It comprises a cast-iron housing with an insert bearing and an inner ring with eccentric locking. This makes it a robust assembly that's ideal for use in applications where the direction of rotation is constant. The bearing gets a firm grip on your machine shaft, holding it steady to minimise the chances of misalignment. As it supports dynamic loads up to 30.7kN, it safely carries heavy products to their destination. You can mount the unit in no time thanks to its two simple bolt holes. As the bearing is sealed, the debris you'd expect in an industrial setting is firmly locked out.
Features & Benefits
• Eccentric locking collar cuts down on interference from vibration
• Housing made from resilient cast iron to stand up to impacts
• Grease port for handy relubrication
• Performs reliably in temperatures between -30°C and +100°C
Applications
• Manufacturing industry
• Oil and gas processing
• Plastic production
What's the limiting speed of this bearing?
This bearing has a limiting speed of 4800r/min, so it's just the job for mid-paced tasks.
