SKF 4 Hole Cylindrical, FYC 40 TF 40 mm ID
- RS Stock No.:
- 212-4571
- Mfr. Part No.:
- FYC 40 TF
- Brand:
- SKF
Subtotal (1 unit)*
£79.67
(exc. VAT)
£95.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
- Plus 12 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £79.67 |
*price indicative
- RS Stock No.:
- 212-4571
- Mfr. Part No.:
- FYC 40 TF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Flange Bearing Unit | |
| Inside Diameter | 40mm | |
| Number of Mount Holes | 4 | |
| Material | Steel, Cast Iron | |
| Locking Type | Set Screw | |
| Length | 145mm | |
| Width | 51.7mm | |
| Depth | 41.2mm | |
| End Type | Open | |
| Mount Hole Size | 14 mm | |
| Mount Hole Centre-to-Centre | 84.9mm | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Series | FYC | |
| Limiting Speed | 4800rpm | |
| Static Load Rating | 19kN | |
| Dynamic Load Rating | 30.7kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Flange Bearing Unit | ||
Inside Diameter 40mm | ||
Number of Mount Holes 4 | ||
Material Steel, Cast Iron | ||
Locking Type Set Screw | ||
Length 145mm | ||
Width 51.7mm | ||
Depth 41.2mm | ||
End Type Open | ||
Mount Hole Size 14 mm | ||
Mount Hole Centre-to-Centre 84.9mm | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Series FYC | ||
Limiting Speed 4800rpm | ||
Static Load Rating 19kN | ||
Dynamic Load Rating 30.7kN | ||
- COO (Country of Origin):
- IT

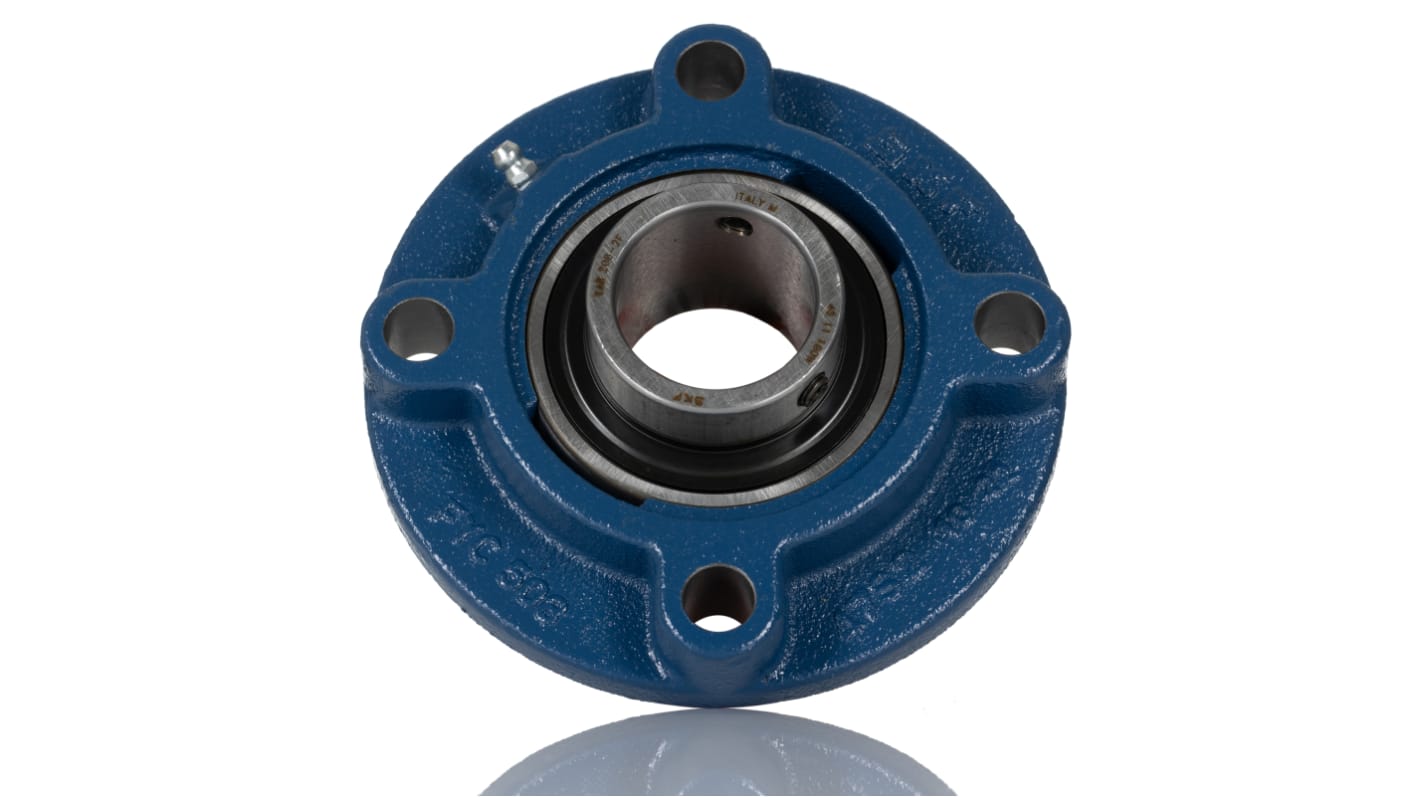

SKF Flanged Bearing Unit, Round Housing, Sealed Bearing, 40mm ID, 51.8mm OD - FYC 40 TF
For reliable shaft support in your heavy-duty application, pick this flanged bearing unit from SKF. You attach it to a surface by driving bolts through the four holes in its flanges to achieve a solid fix. As it carries dynamic loads up to 30.7kN, the component has no trouble handling substantial loads. You'll have no trouble using it in tough conditions as the insert bearing is sealed, shutting out damaging dust and moisture.
Features & Benefits
• Handles initial misalignment up to 5°, minimising risk of disruption from mounting errors
• Set-screw locking to cut down on vibrations at high speeds
• Built-in grease fitting for hassle-free relubrication
• Durable cast iron housing shakes off impacts
• Works with speeds up to 4800rpm to keep up with fast-moving processes
Applications
• Material handling
• Food production
• Industrial automation
• Agricultural machinery
When should I relubricate the unit?
How often you should relubricate this component depends on your application. To maintain its service life in humid settings, under heavy loads or through long periods of high-speed running, you should apply fresh grease before use.
