4 Hole Flange Bearing Unit, FY 45 TF, 45mm ID
- RS Stock No.:
- 195-9604
- Mfr. Part No.:
- FY 45 TF
- Brand:
- SKF
Subtotal (1 unit)*
£53.30
(exc. VAT)
£63.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.30 |
*price indicative
- RS Stock No.:
- 195-9604
- Mfr. Part No.:
- FY 45 TF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 45mm | |
| Bearing Unit Type | Flange Bearing Unit | |
| Number of Mount Holes | 4 | |
| Material | Cast Iron | |
| Length | 137mm | |
| Width | 54.2mm | |
| Depth | 137mm | |
| Mount Hole Size | 16mm | |
| Mount Hole Centre-to-Centre | 105mm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Bearing Unit Type Flange Bearing Unit | ||
Number of Mount Holes 4 | ||
Material Cast Iron | ||
Length 137mm | ||
Width 54.2mm | ||
Depth 137mm | ||
Mount Hole Size 16mm | ||
Mount Hole Centre-to-Centre 105mm | ||
RoHS Status: Exempt

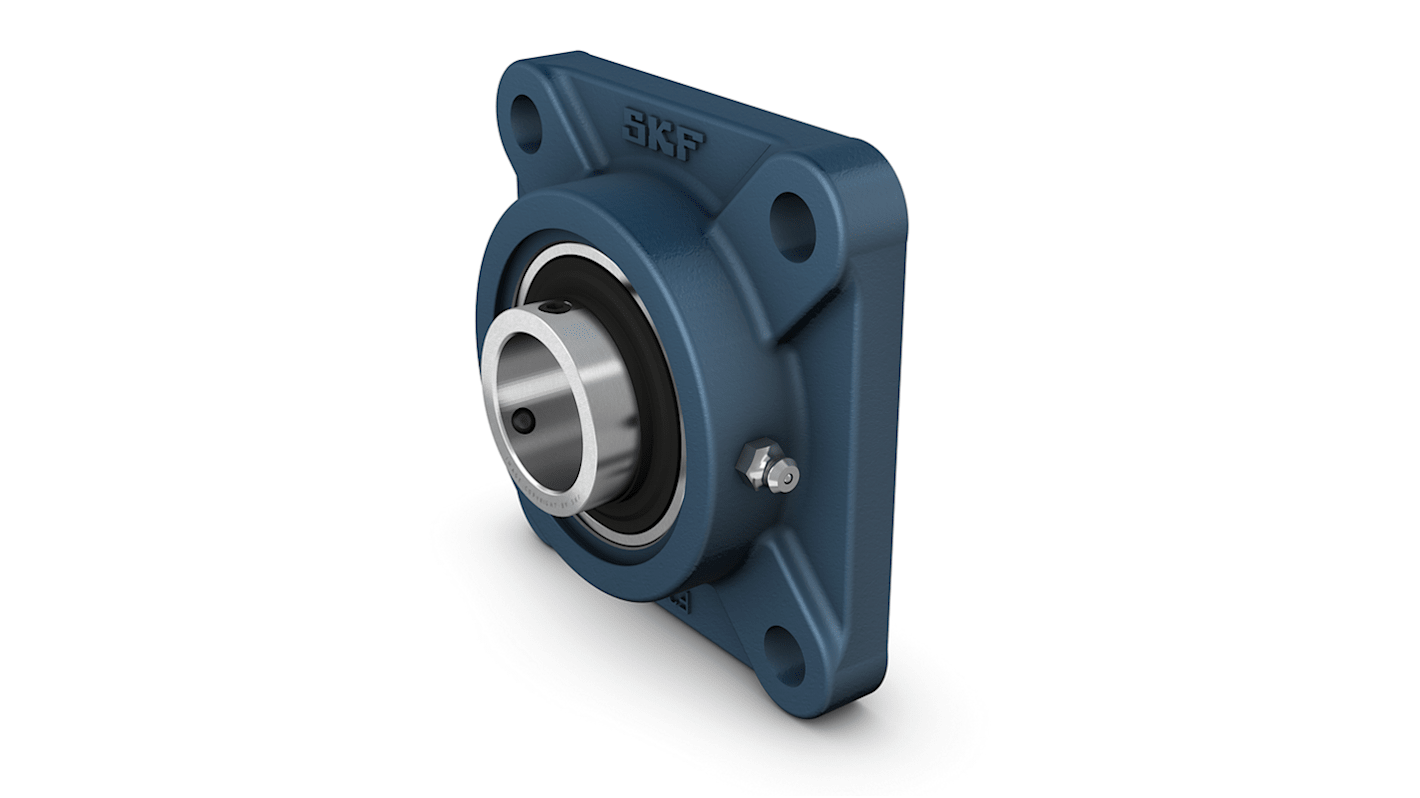

SKF Flanged Bearing Unit, 45mm Inside Diameter - FY 45 TF
This flanged bearing unit is designed for reliable rotation and support in various industrial applications. With a 45mm inside diameter, this durable unit made from cast iron ensures stability and strength. Measuring 137mm in length and 54.2mm in width, it accommodates a range of mounting requirements while providing smooth operation.
Features & Benefits
• Four mounting holes facilitate easy and secure installation
• High dynamic load rating of 33.2 kN ensures long-lasting performance
• Standard seals with additional flingers provide effective contamination protection
• Designed for clean operation at limiting speed of 4300 r/min
• Compatible with dowel pins for enhanced alignment during installation
• Hexagonal key size of 4mm ensures effortless adjustment
• High dynamic load rating of 33.2 kN ensures long-lasting performance
• Standard seals with additional flingers provide effective contamination protection
• Designed for clean operation at limiting speed of 4300 r/min
• Compatible with dowel pins for enhanced alignment during installation
• Hexagonal key size of 4mm ensures effortless adjustment
Applications
• Used with automation equipment requiring precise motion control
• Suitable for mechanical systems in heavy-duty
• Effective in electrical needing robust support
• Ideal for use with production machinery requiring reliable components
• Suitable for mechanical systems in heavy-duty
• Effective in electrical needing robust support
• Ideal for use with production machinery requiring reliable components
What are the recommended tightening specifications for installation?
It is advisable to use a recommended tightening torque of 6.5 N·m for the grub screw, ensuring that the unit is securely fastened during operation.
What materials are used in the construction of this bearing unit?
The housing is made from cast iron, providing excellent durability and wear resistance suited for various industrial environments.
How is the unit sealed against contaminants?
The unit features standard seals alongside additional flingers designed to prevent contaminants from affecting the internal workings of the bearing.
What is the benefit of dowel pins in this bearing unit?
Dowel pins assist in maintaining precise alignment during installation, which enhances the overall performance and longevity of the bearing in operation.
