SKF Bearing Unit Insert 15.875mm ID 40mm OD YAR 203-010-2F
- RS Stock No.:
- 339-9000
- Mfr. Part No.:
- YAR 203-010-2F
- Brand:
- SKF

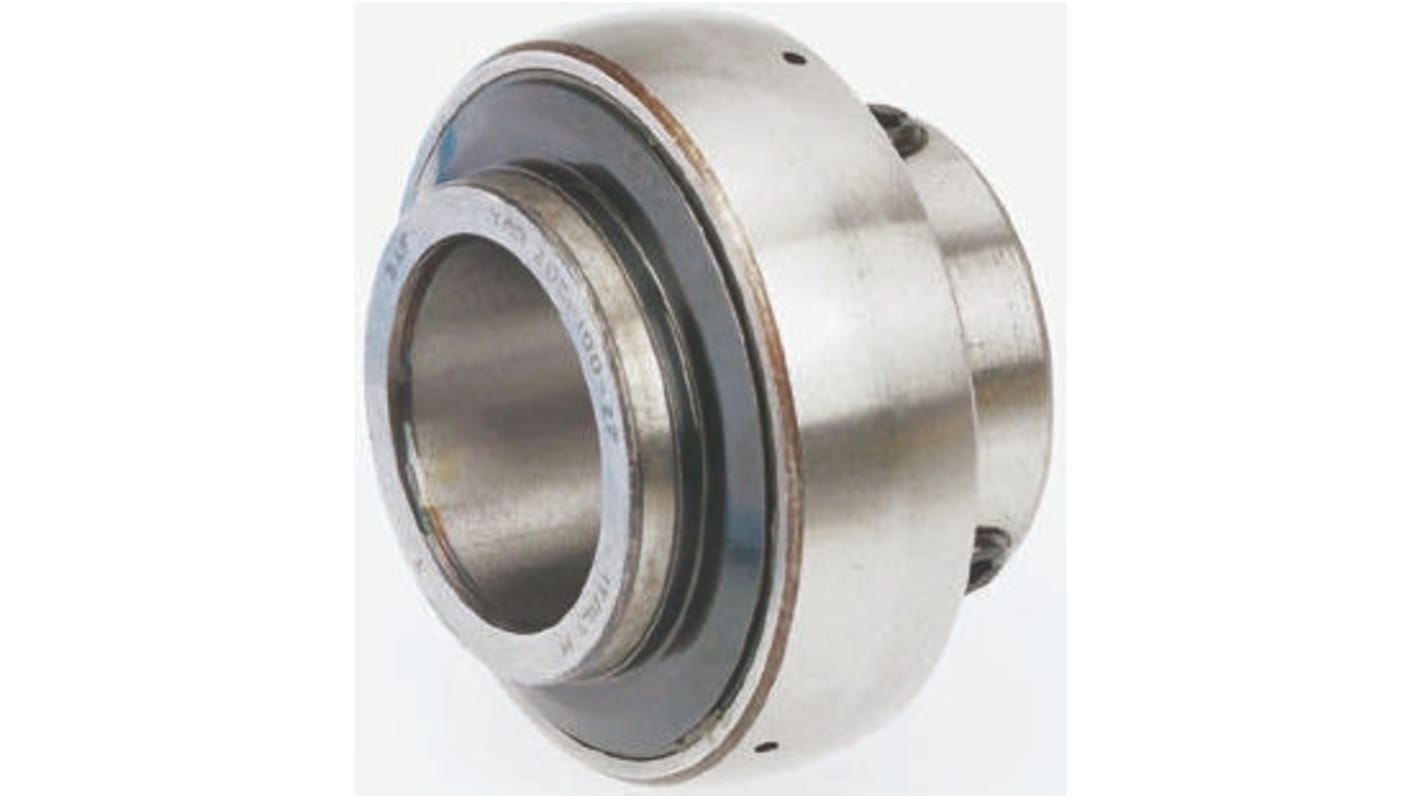

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 339-9000
- Mfr. Part No.:
- YAR 203-010-2F
- Brand:
- SKF
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 15.875mm | |
| Outside Diameter | 40mm | |
| Static Load Rating | 4.75kN | |
| Dynamic Load Rating | 9.56kN | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 15.875mm | ||
Outside Diameter 40mm | ||
Static Load Rating 4.75kN | ||
Dynamic Load Rating 9.56kN | ||
RoHS Status: Not Applicable
Self-Lube Bearing Inserts
For use with self-lube sealed bearing units or with user's own housings. Bearings are secured onto the shaft with a set-screw lock. When the axial load exceeds the limiting value, a shoulder should be provided on the shaft for the bearing inner ring to abut against so that the axial load is not transmitted through the set screws
